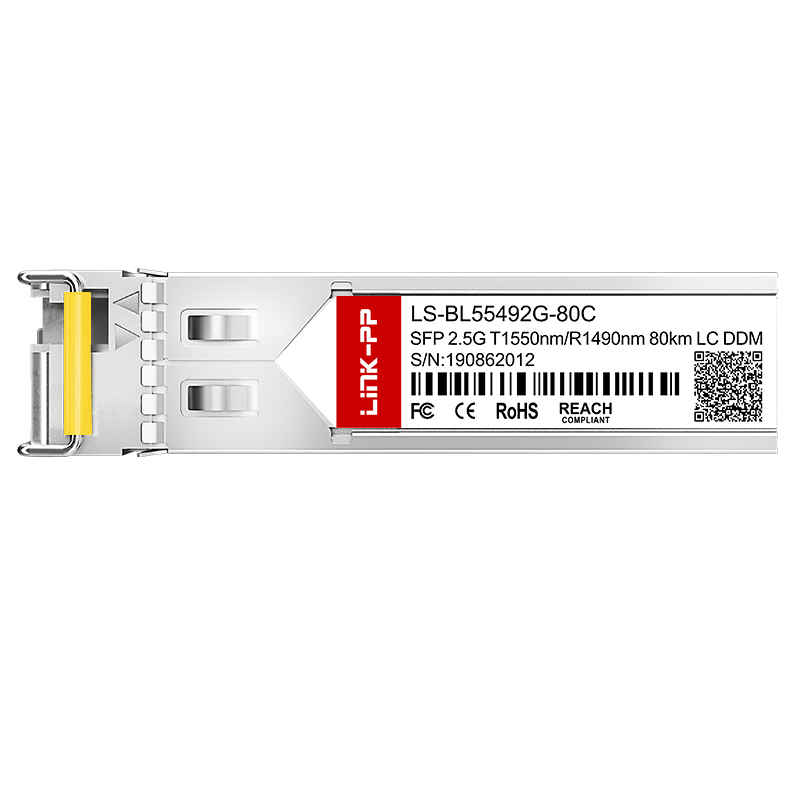

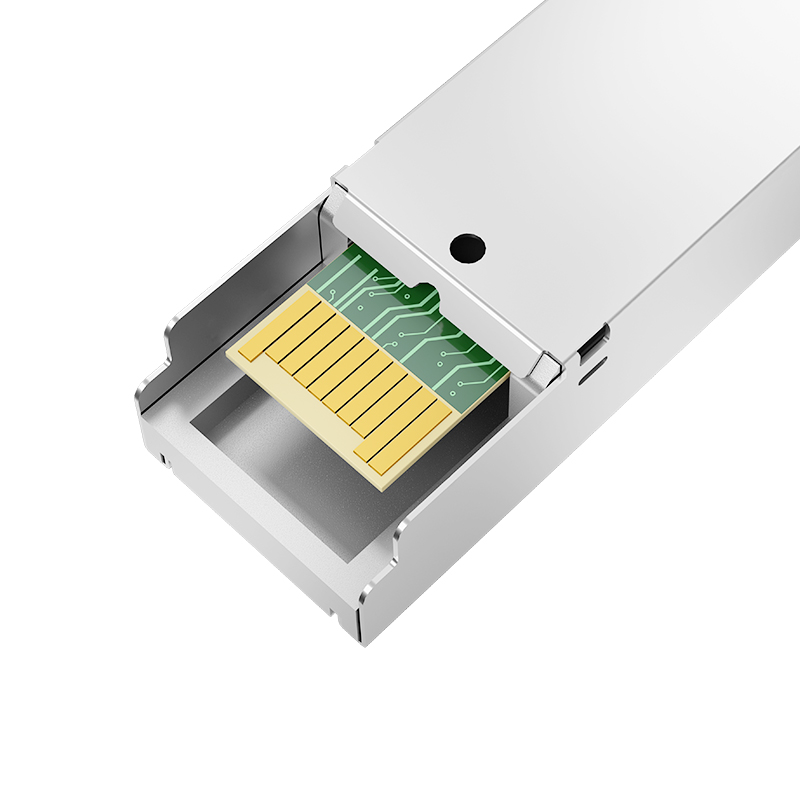

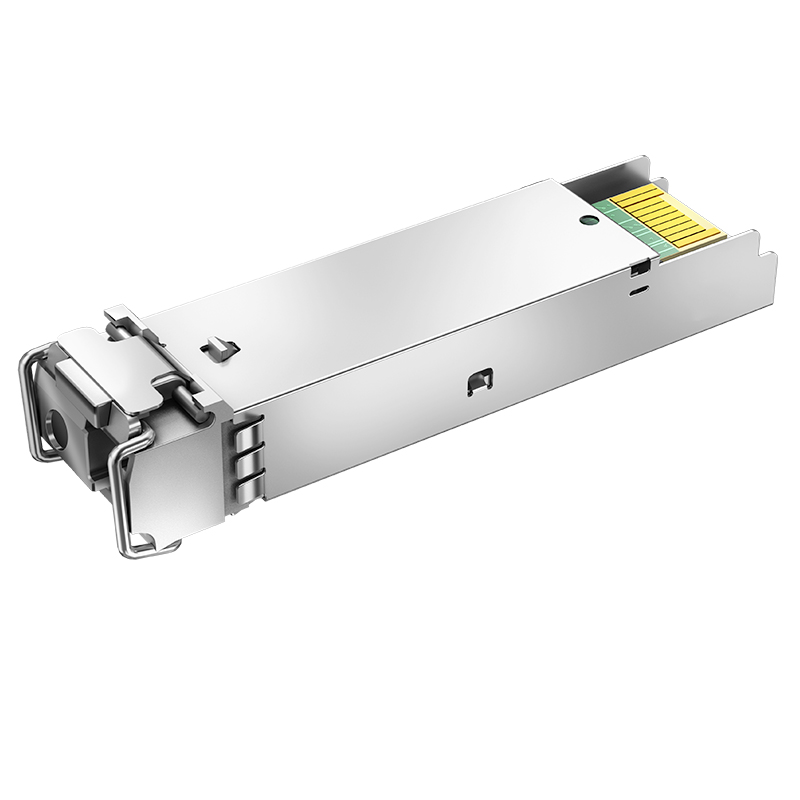

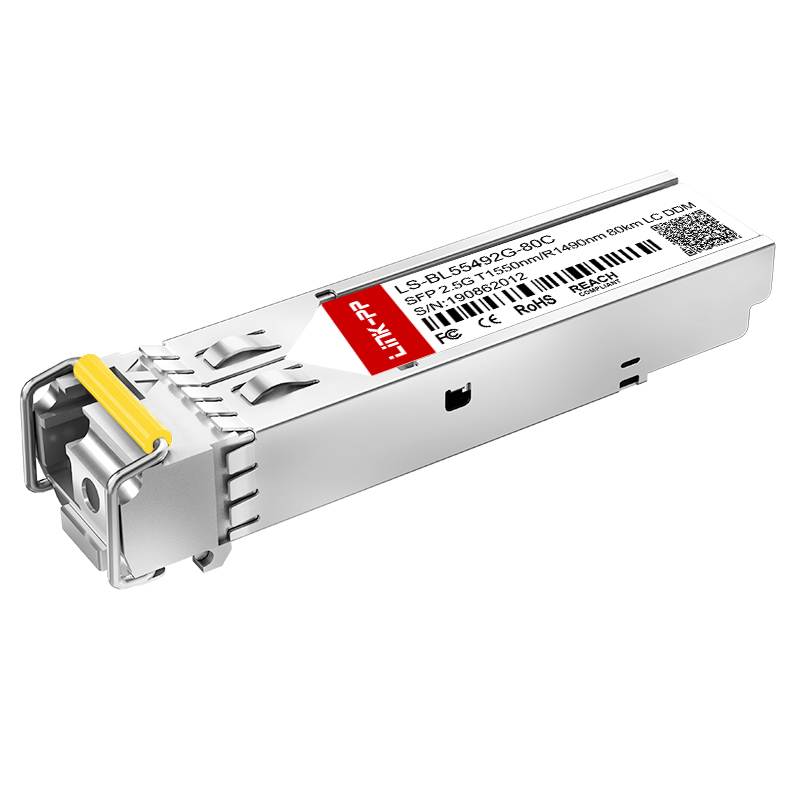

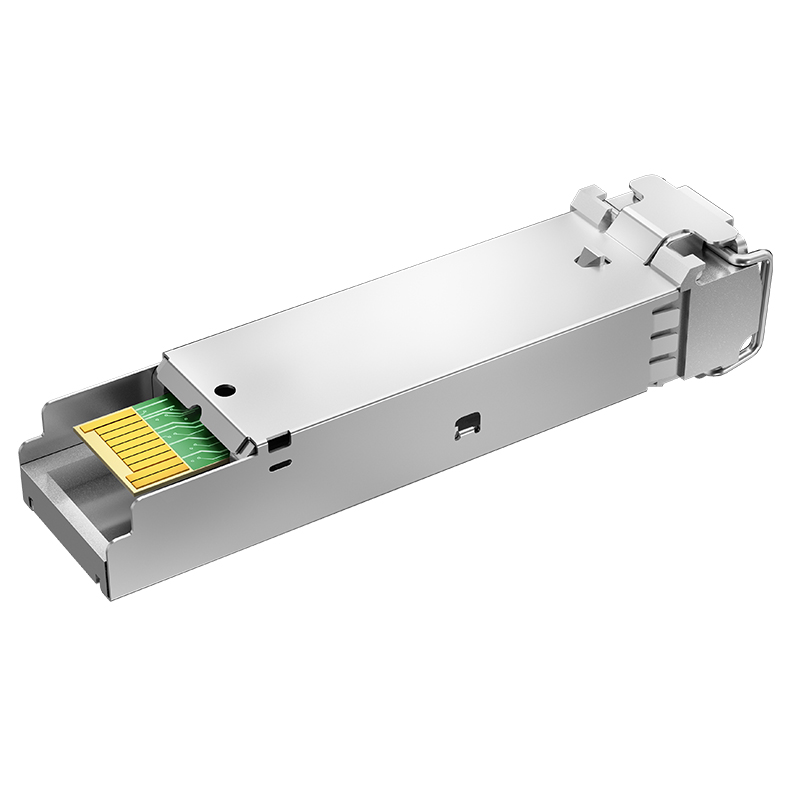

1550nm-TX/1490nm-RX Simplex LC SFP 2.5G Bidi 80km SMF Bidirectional Optical Transceiver Module

Product Description

📦 1550nm-TX/1490nm-RX Simplex LC SFP 2.5G Bidi 80km SMF Transceiver
Part NumberLS-BL55492G-80C
Form FactorSFP
Max Data Rate2.5Gbps
Wavelength1550nm-TX/1490nm-RX
Max Cable Distance80km
ConnectorSimplex LC
MediaSMF
Transmitter TypeDFB
Receiver TypePIN
EMC SupportSupported
DDM/DOMSupported
ProtocolsFast Ethernet, Gigabit Fibre Channel, MSA Compliant
Temperature Range0 to 70°C / -40 to 85°C
Warranty5 Years
💡 VIEW OUR SOLUTIONS

Drawing on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

Solution Overview
Support 1.25G BiDi SFP
BiDi SFP 1 BiDi SFP 2
Support 10G/25G BiDi SFP
10G/25G BiDi
Product Range Product Modules
🌐 Optical Transport Networks
Optical Transport
End-to-end DWDM solutions with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR.
☁️ Cloud and Enterprise
Meeting the demand of mass data transmission in data centers with high-speed optical modules ranging from 10G to 800G, providing high-quality optical interconnection solutions.
Cloud Enterprise
📶 Wireless Solutions
Wireless
High reliability and performance products with mature lasers and mainstream chip solutions. Includes Dark Fiber, WDM, Radio over Fiber, and Back-haul for 4G/5G systems.
🏠 FTTx and Subsystems
Total FTTx optical fiber access solutions and O&M systems that integrate optical line protection (OLP) and monitoring (OLM).
FTTx Subsystems
🔗 Related Products & Quality
SFP Cage
QC 1 QC 2 QC 3
🏢 About the Manufacturer

A specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, ROSH, REACH, CE, and UL. Equipped with advanced manufacturing and testing equipment. With abundant production capacity of 3000K per month, we deliver high-quality products within a short time. We design, manufacture, and sell a complete series of optical interconnect solutions worldwide.

Factory 1 Factory 2
FAQ
1. What is a BiDi SFP transceiver?
A BiDi (Bidirectional) transceiver allows for communication over a single strand of fiber by using two different wavelengths for transmitting and receiving. This helps in saving fiber infrastructure costs.
2. Can I use the same part number on both ends of the fiber link?
No, BiDi transceivers must be used in pairs with complementary wavelengths. For example, if one end uses 1550nm-TX/1490nm-RX, the other end must use 1490nm-TX/1550nm-RX.
3. What is the benefit of DDM support?
Digital Diagnostic Monitoring (DDM) allows real-time monitoring of parameters like optical output power, input power, temperature, and supply voltage, helping in network troubleshooting.
4. Is the sample available for testing?
Yes, samples are available to test quality before mass production. Please contact our team for details on shipping and availability.
5. What is the standard lead time for orders?
Items in stock are ready for immediate shipment. For mass production or customized orders, the typical lead time is 15-30 days.
6. Does this module support industrial temperature ranges?
Yes, we offer both Commercial (0 to 70°C) and Industrial (-40 to 85°C) temperature ranges to suit different environmental requirements.
