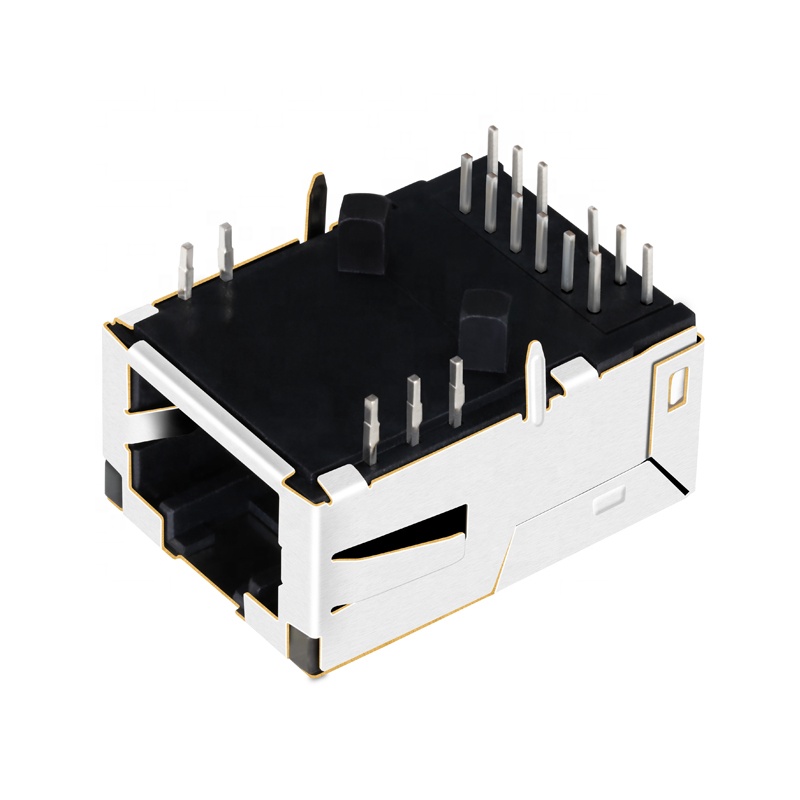

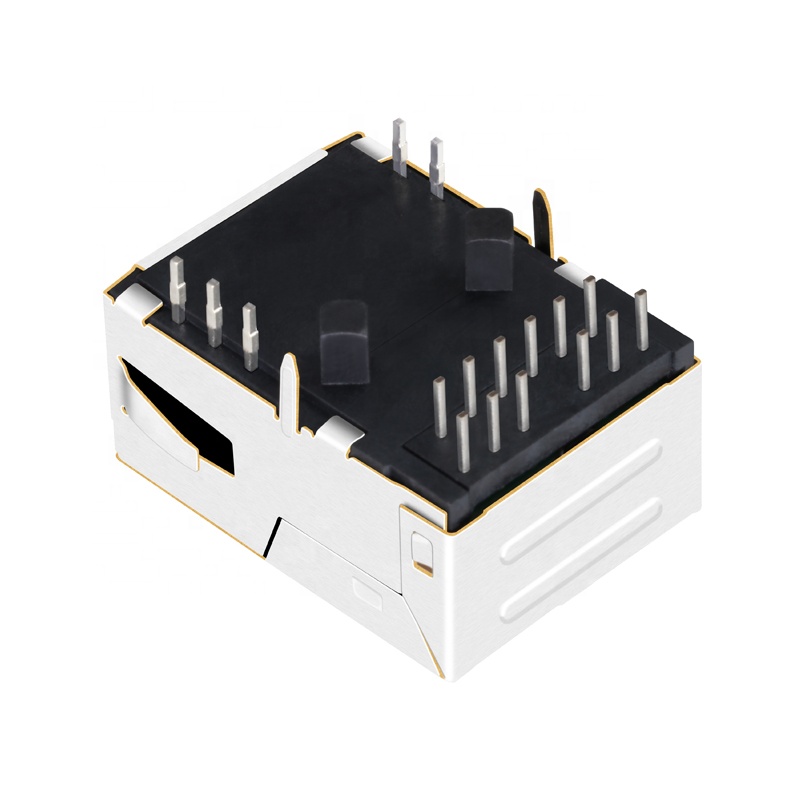

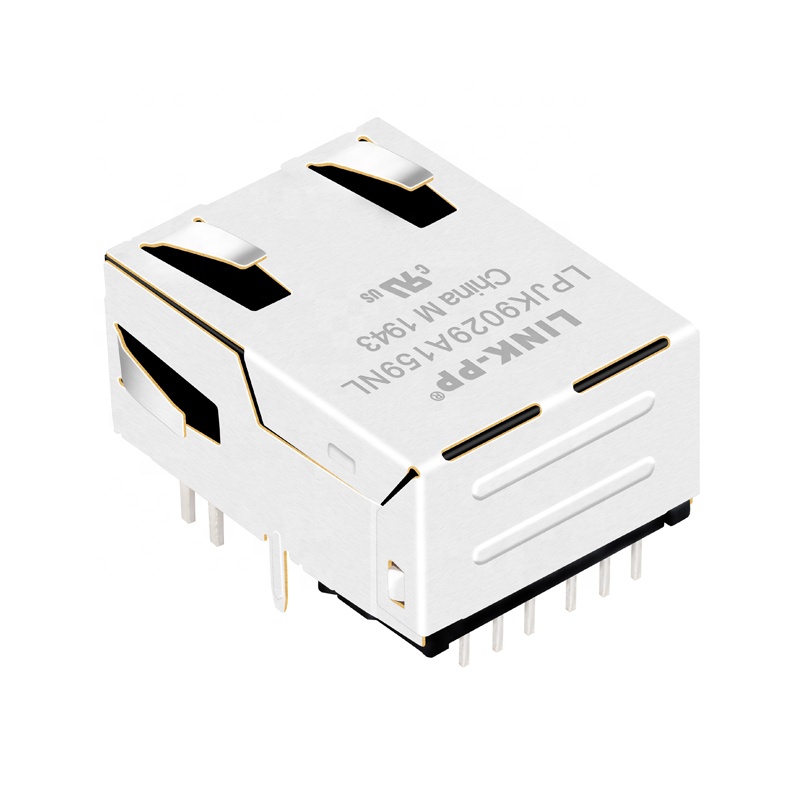

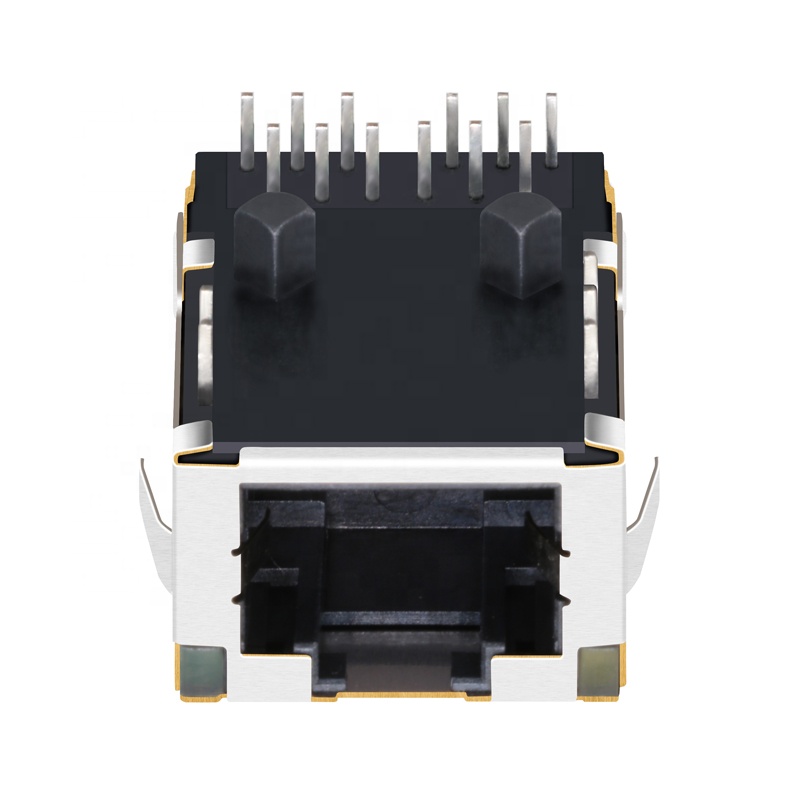

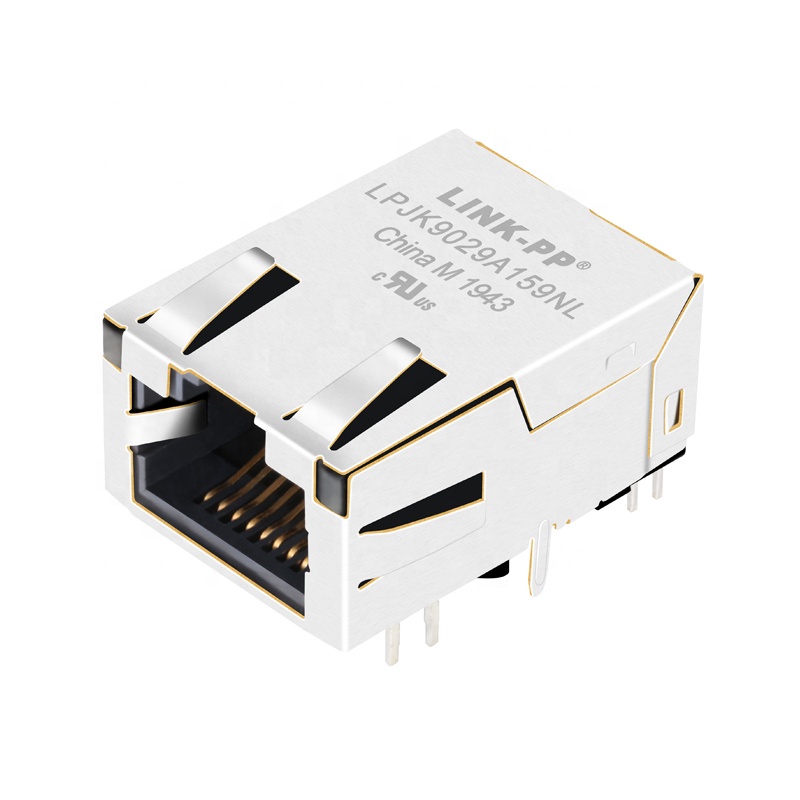

5G/2.5G Base-T Single Port Low-Profile Ethernet RJ45 Jack Connector

■ Product Description

■ Technical Specifications

■ Packing & Delivery

The Part Number package: 110 pcs in 1 tray, which is 34.5*34.5*27cm, 5.5KGS (550pcs) of each carton.

■ Product Gallery & Characteristics

Key Characteristics:

✔ RJ45 Connector with integrated transformer / common mode choke
✔ Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s
✔ Available in SMT, THT and THT with USB
✔ Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEE 802.3bt
✔ HPLE products: Improved Common Mode Rejection due to additional NiZn cores

? Frequently Asked Questions

What is the data speed support for this RJ45 connector?

This connector supports high-speed LAN applications including 5G Base-T and is capable of speeds up to 10 Gbit/s.

Does this model support Power over Ethernet (PoE)?

Yes, it supports Power over Ethernet (PoE) up to 50 Watts and is compliant with IEEE 802.3af/at/bt standards.

What are the mounting and orientation specifications?

The LPJK9029A159NL features a Through Hole mounting type with a 90° Right Angle orientation.

What is the operating temperature range?

The component is designed to operate reliably within a temperature range of 0°C to 70°C.

Is the connector shielded, and does it have LED indicators?

Yes, the connector is fully shielded and includes Yellow/Green and Yellow LED indicators for status signaling.

What are the standard packaging quantities?

The standard packaging is 110 pieces per tray, with a full carton containing 5 trays (550 pieces total).
