Avago ABCU-5710RZ Compatible 1000BASE-T 1.25G Copper SFP Transceiver RJ45 100m

1 / 5

Avago ABCU-5710RZ Compatible 1000BASE-T 1.25G Copper SFP Transceiver RJ45 100m

Send Inquiry

Product Description

VIEW OUR SOLUTIONS

🌐 We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.

⚙️ We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

Optical Transport Networks

We can provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.

Cloud and Enterprise

To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical module which the product rate ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.

Wireless

We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.

FTTx

Aiming at global communication network constructers, we provide FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.

Subsystems

To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).

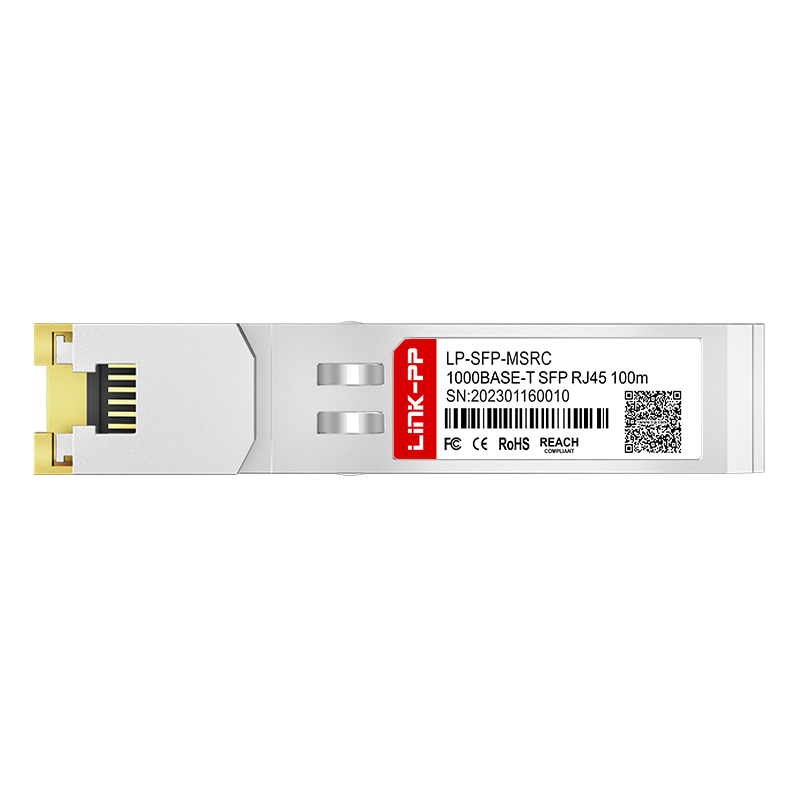

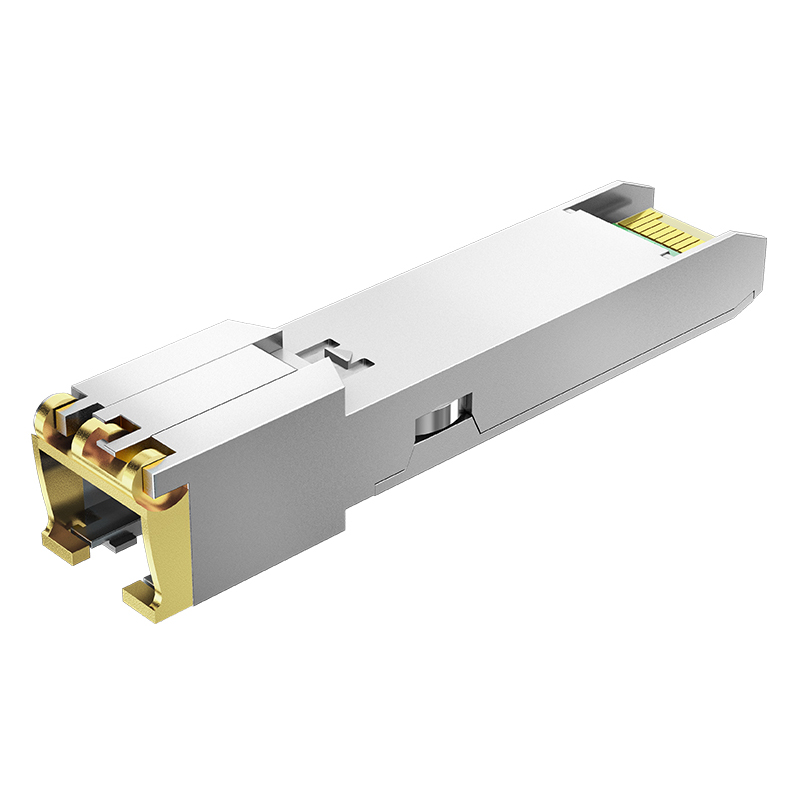

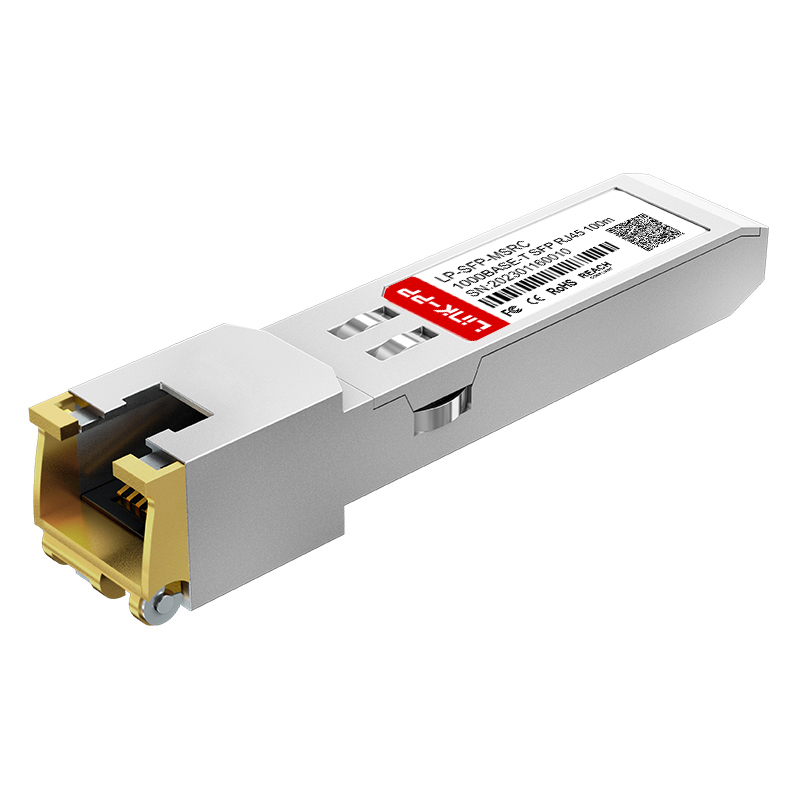

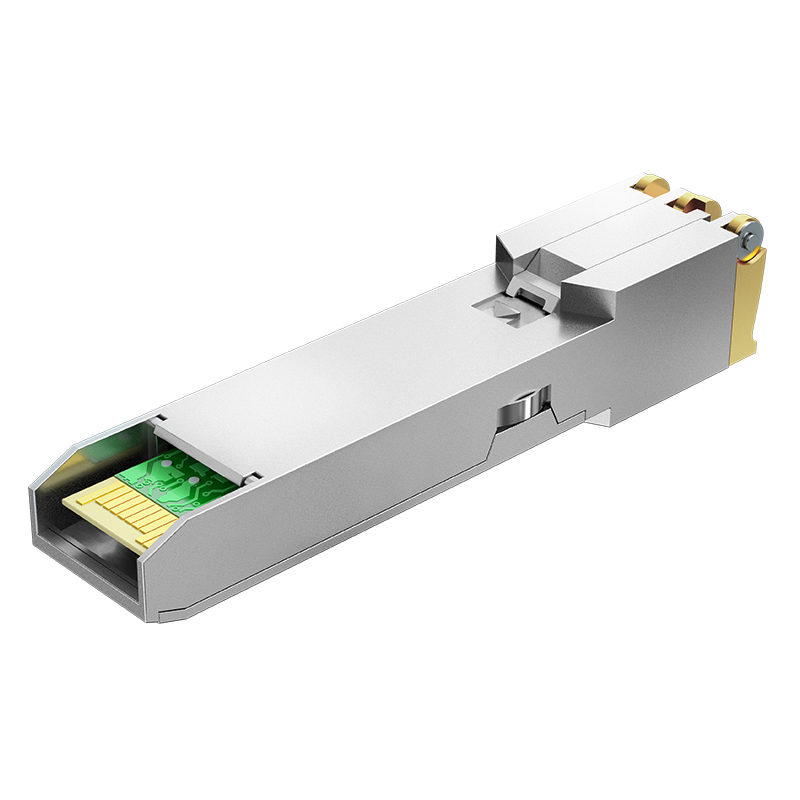

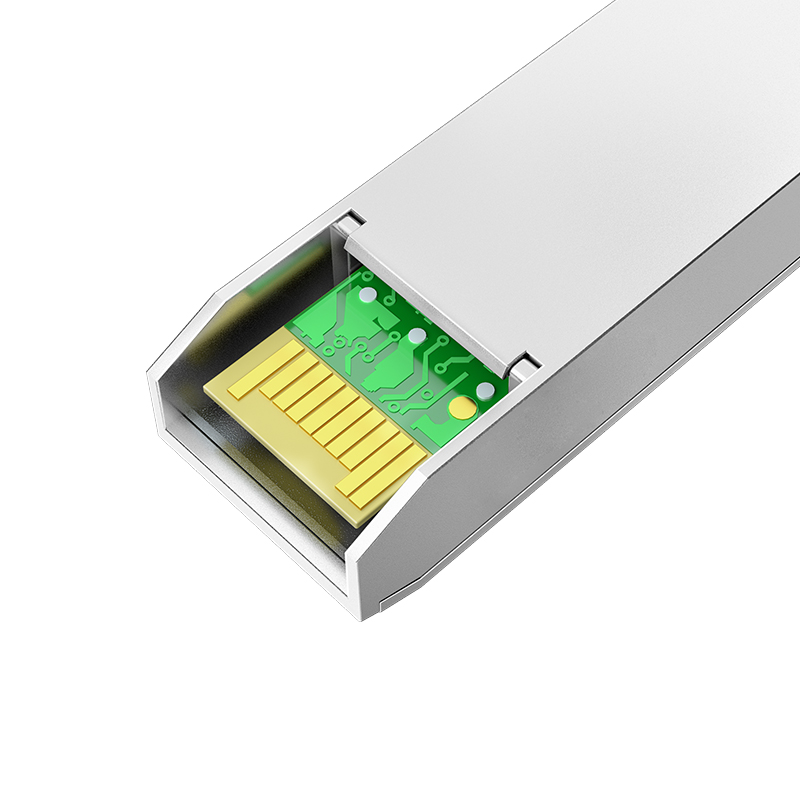

Avago ABCU-5710RZ Compatible 1000BASE-T 1.25G Copper SFP

Form Factor	SFP
Max Data Rate	1.25Gbps
Max Cable Distance	100m
Connector	RJ45
Media	Cat 5e/6/6a (UTP)
Power Consumption	≤1.2w
EMC Support	Supported
Protocols	IEEE Std 802.3 and 802.3ab, SFP MSA Compliant
Temperature Range	0 to 70°C / -40 to 85°C
Warranty	5 Years

Support 100M-10G Copper SFP Series

Part Number	Data Rate	Connector	Media	Distance
LP-RJ4501-TC	100Mbps	RJ-45	Cat 5/Cat 6/Cat 6a	100m
LP-SFP-TMRC	10/100/1000Mbps	RJ-45	Cat 6/Cat 6a	100m
LP-SFP-TM8C	10/100/1000Mbps	RJ-45	Cat 6/Cat 6a	100m
LP-SFP-MS8C	1000Mbps	RJ-45	Cat 6/Cat 6a	100m
LP-SFP-MSRC	1000Mbps	RJ-45	Cat 6/Cat 6a	100m
LP-RJ452G-TC	2.5Gbps	RJ-45	Cat 5e	100m
LP-RJ45TG-3YC	10Gbps	RJ-45	Cat 6a/Cat 7	30m
LP-RJ45TG-8YC	10Gbps	RJ-45	Cat 6a/Cat 7	100m
