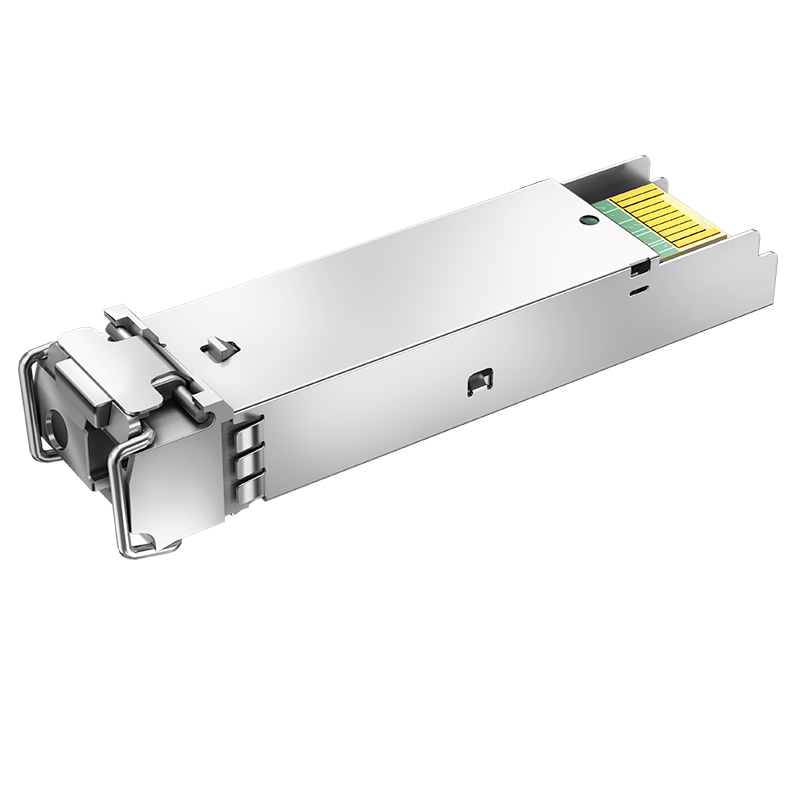

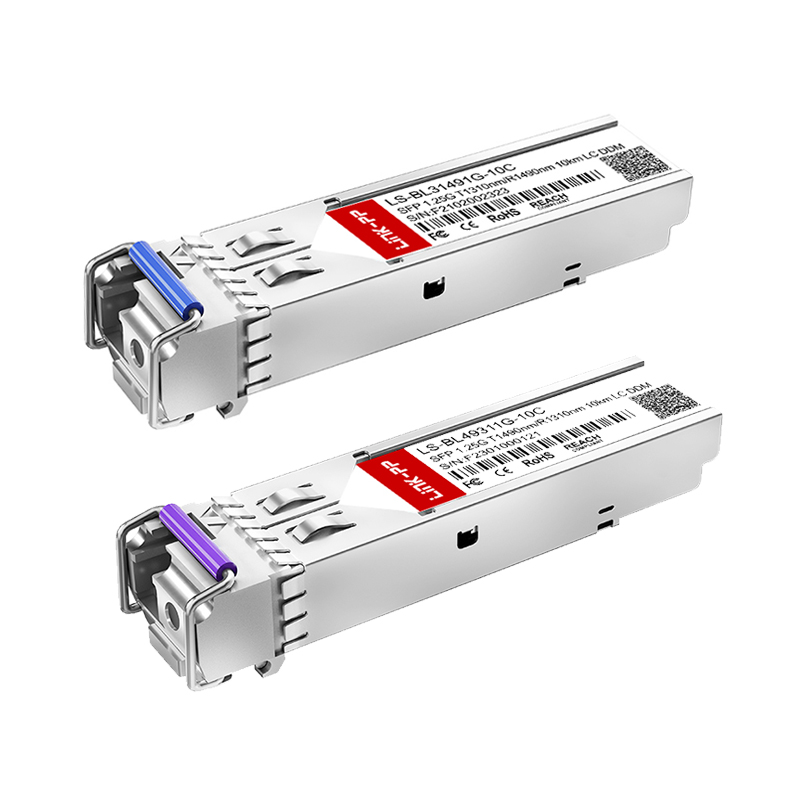

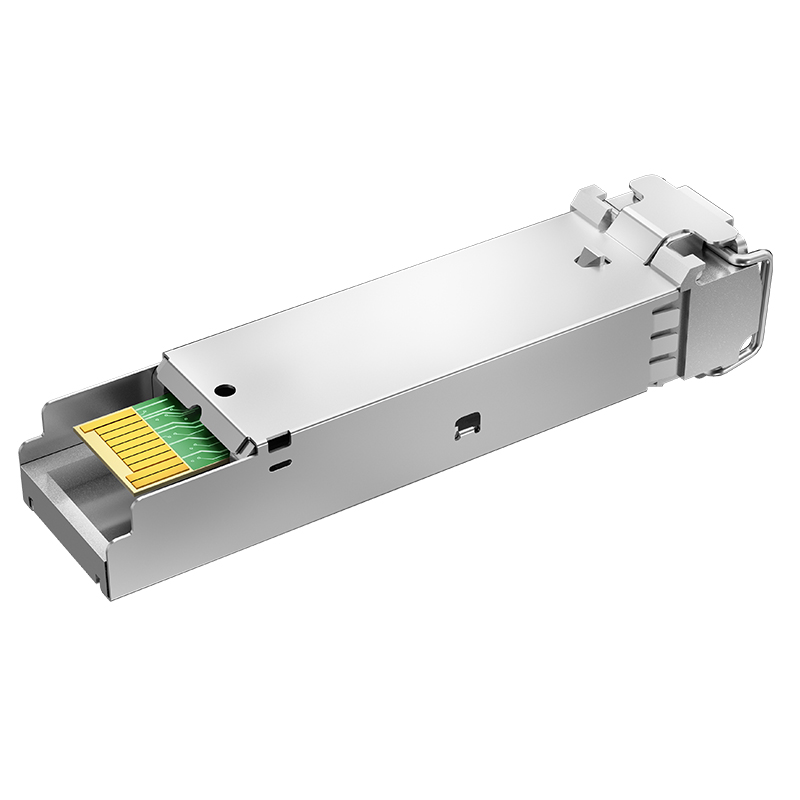

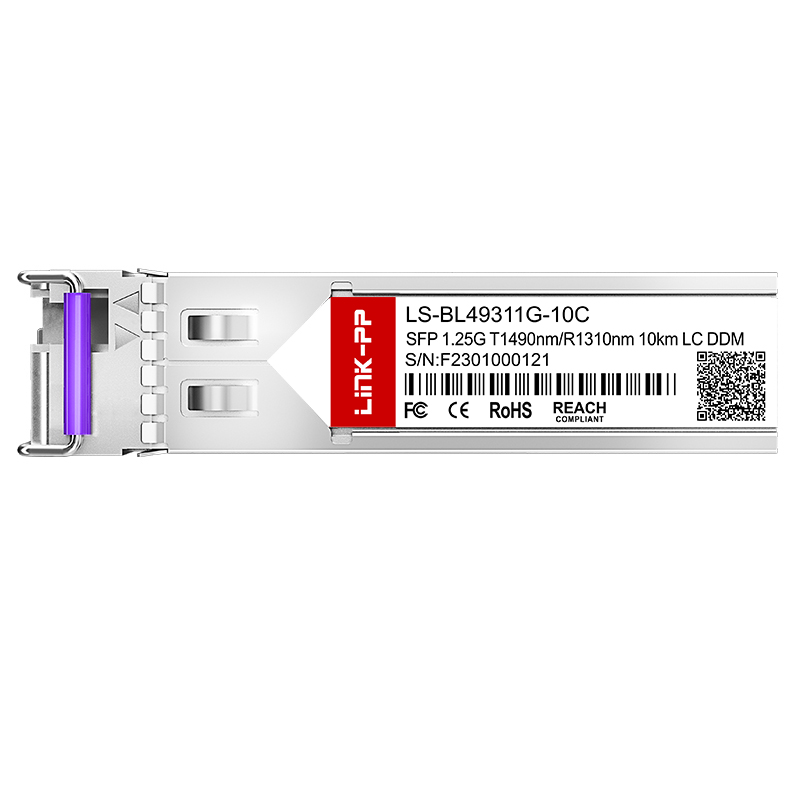

Single Mode SMF Bidirectional Optical Transceiver 1310nm/1490nm Simplex LC 1G BiDi SFP Module 10km
| Item | BiDi SFP |
| Part Status | Active |
| Form Factor | SFP |
| Max Data Rate | 1000Mbps |
| Max Cable Distance | 10KM |
| Wavelength | 1310nm/1490nm |
| Connector | Simplex LC |
| Media | SMF |
| Optical Component | FP BiDi |
| TX Power | -9~-3dBm |
| Receiver Sensitivity | <-20dBm |
| DDM/DOM | DDM Supported |
| Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant |
| Warranty | 5 Years |
| Sample | Available |
We provide end-to-end DWDM devices with almost all optical components - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with rates ranging from 10G to 800G, providing high-quality optical interconnection solutions.
Reliable performance products with mature and efficient lasers and mainstream chip solutions. Solutions include Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul for 4G/5G systems.
For global communication network constructers, we provide FTTx optical fiber access total solutions covering all-optical or optical copper combined access solutions and products.
To ensure normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. Our facility owns advanced manufacturing and test equipment imported from abroad to ensure the highest quality standards.
With abundant productive capacity, we are able to deliver products within a short time. We offer a full series of optical modules for fixed access, wireless access, carrier Ethernet, and cloud computing interconnection solutions globally.
