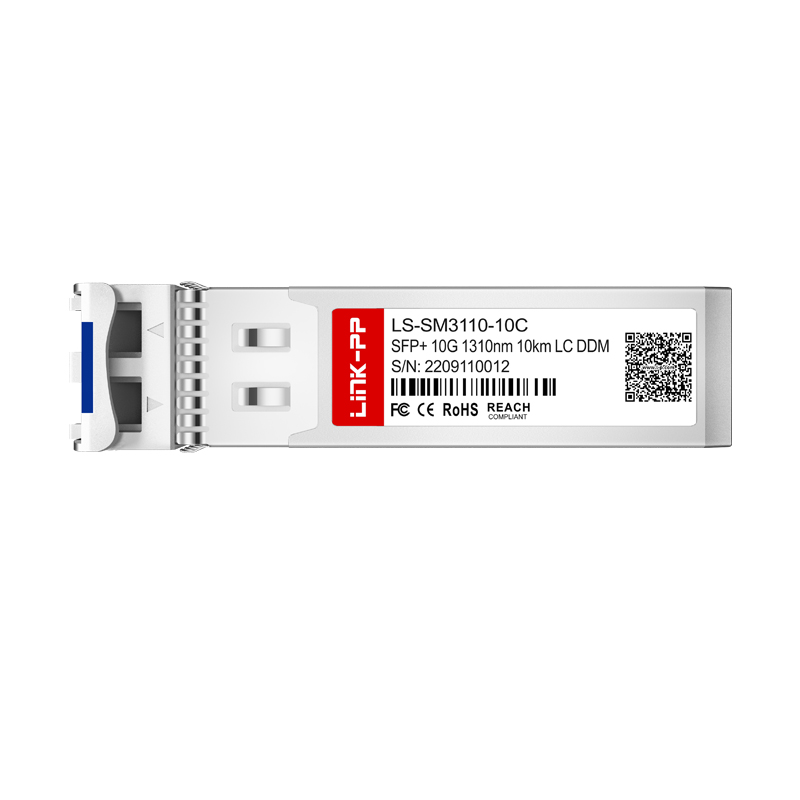

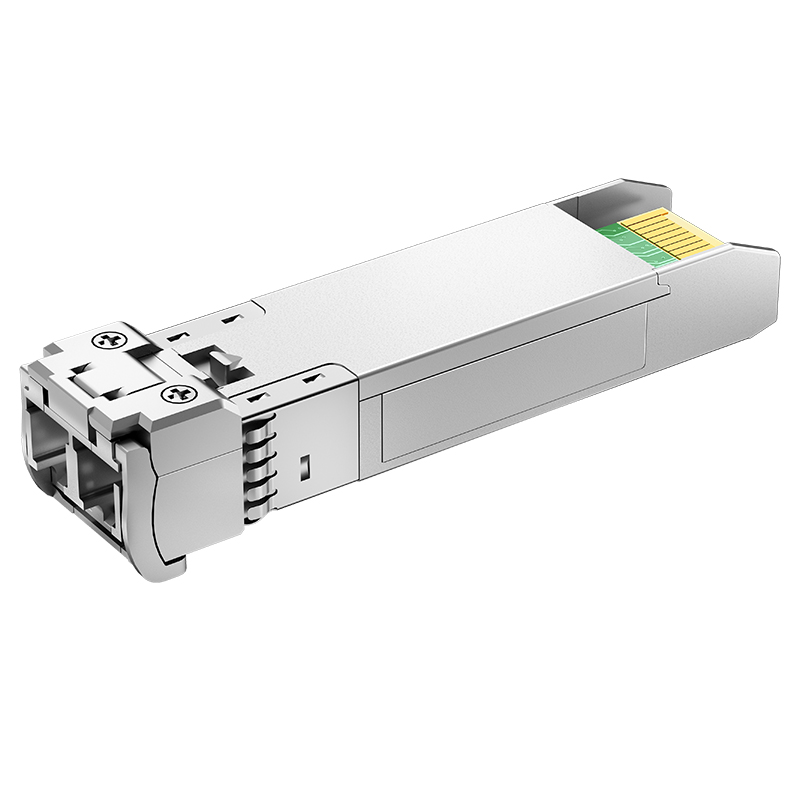

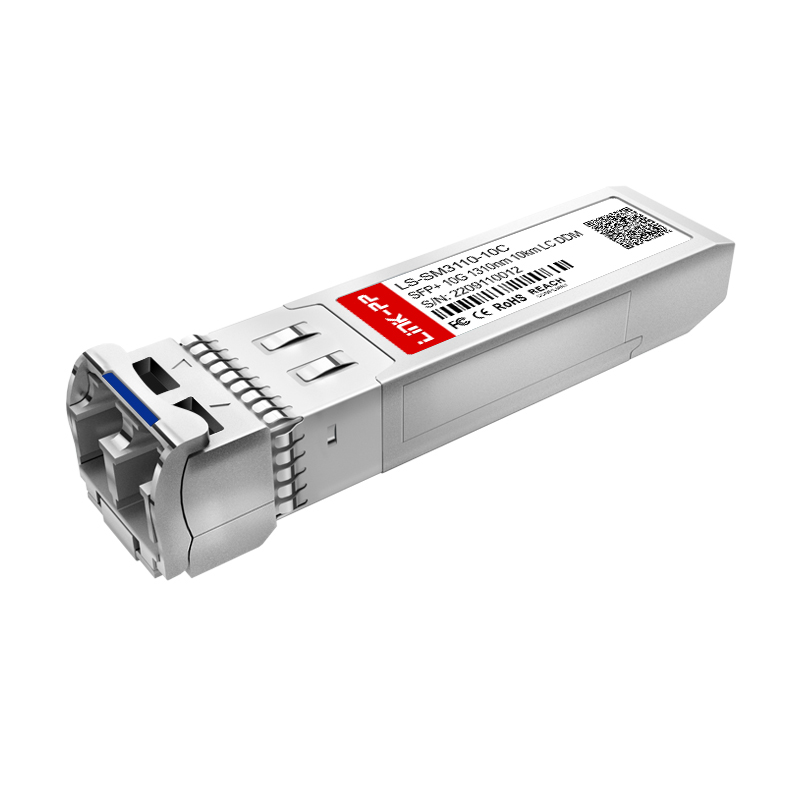

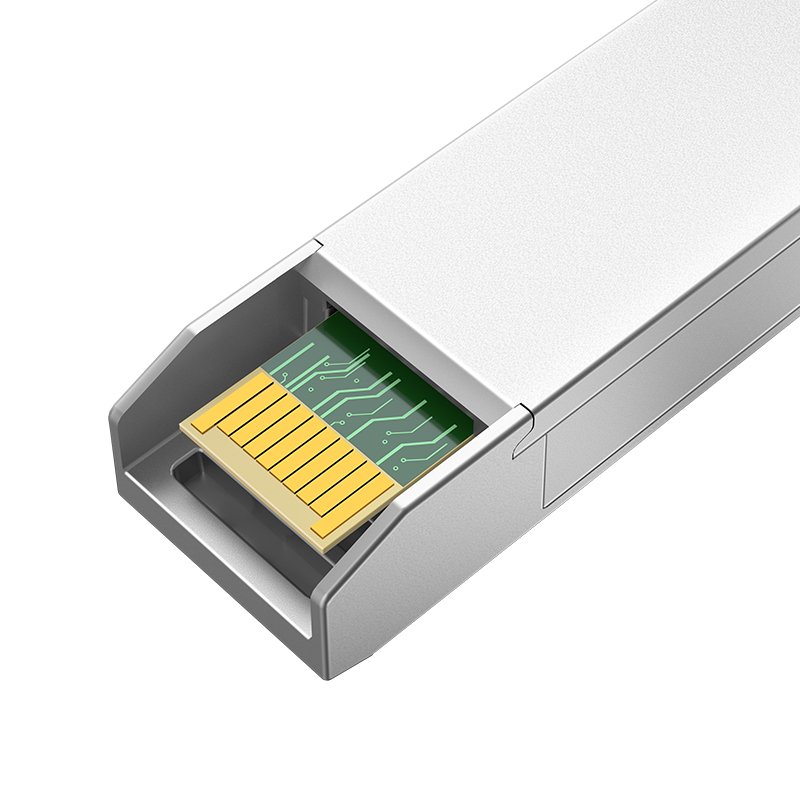

| Item | 10G SFP+ |
| Part Status | Active |
| Form Factor | SFP+ |
| Max Data Rate | 10.3125Gbps |
| Wavelength | 1310nm |
| Max Cable Distance | 10km |
| Media | SMF |
| Connector | Duplex LC |
| Optical Component | DFB/PIN |
| TX Power | -8.2~0.5dBm |
| Receiver Sensitivity | <-14.4dBm |
| Power Budget | 6.2dB |
| Receiver Overload | 0.5dBm |
| Power Consumption | ≤1W |
| Extinction Ratio | >3.5dB |
| DDM/DOM | Supported |
| Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, MSA Compliant, CPRI, eCPRI |
| Warranty | 5 Years |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.
A full series of optical modules is available for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROSH, REACH, CE, and UL. We own advanced manufacturing facilities and test equipment imported from abroad.
Established in 1997, we currently have around 2000 staff. With an abundant production capacity of 3000K per month, we are able to deliver products within a short time.
We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, WDM, and data communication networks. Our range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks.
