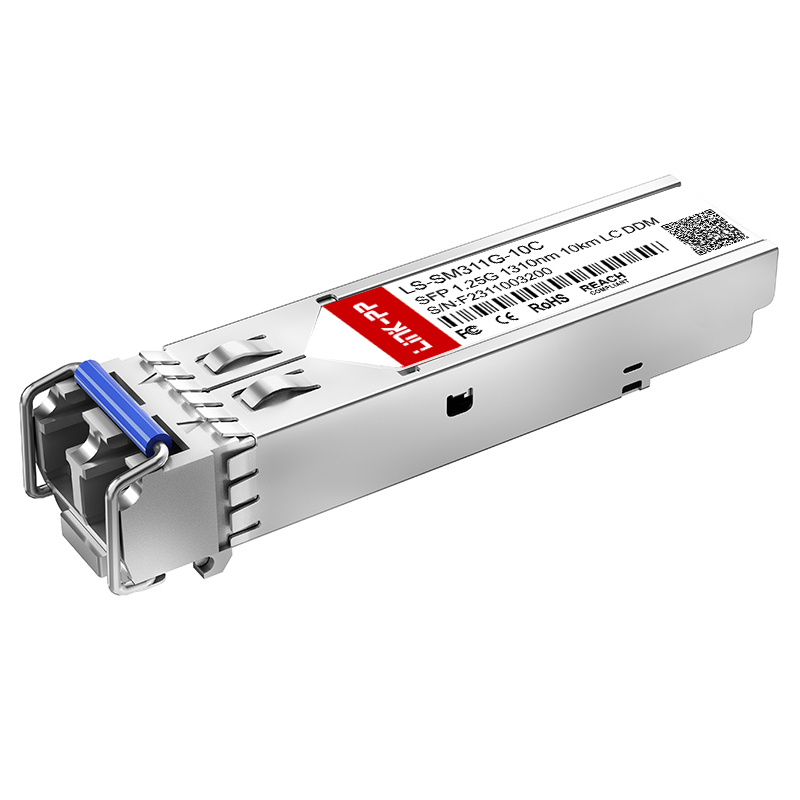

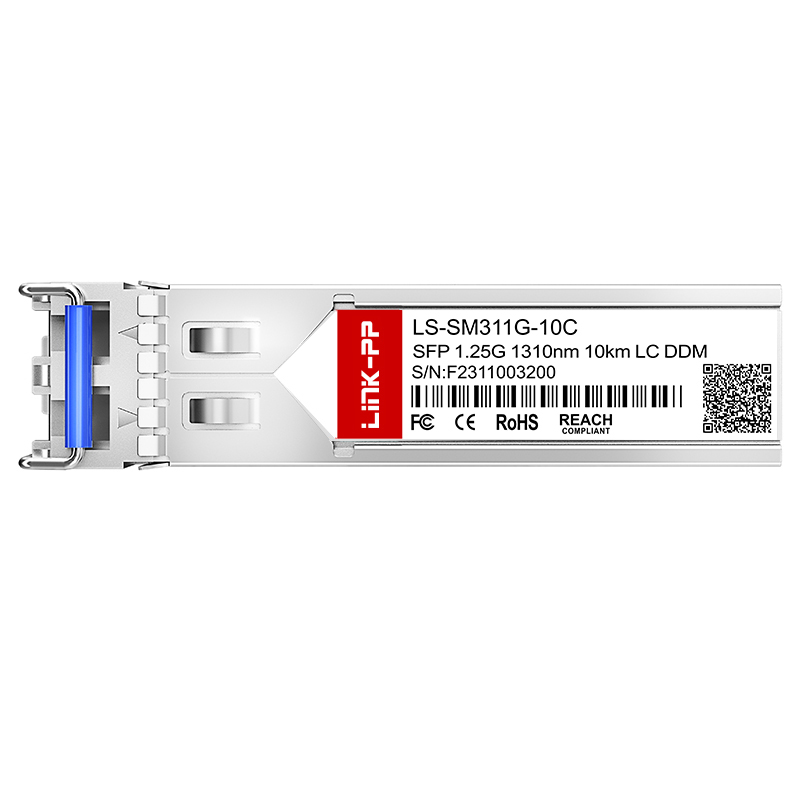

| Item | 1000BASE SFP |
| Compatible | J4859D HPE Aruba |
| Part Status | Active |
| Form Factor | SFP |
| Max Data Rate | 1.25Gbps |
| Wavelength | 1310nm |
| Max Cable Distance | 10Km |
| Media | SMF |
| Connector | Duplex LC |
| Optical Component | FP/PIN |
| TX Power | -9.5~-3dBm |
| Receiver Sensitivity | <-20dBm |
| Receiver Overload | -3dBm |
| Power Consumption | ≤1W |
| Extinction Ratio | >9dB |
| DDM/DOM | Supported |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | IEEE 802.3ah-2004, IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant |
| Warranty | 5 Years |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
We provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier(EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical module which the product rate ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Providing high reliability and performance products with mature and efficient lasers and mainstream chip solutions. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
Aiming at global communication network constructers, we provide FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL, owning advanced manufacturing facilities and test equipment. Established in 1997, we have around 2000 staff at present. With a productive capacity of 3000K per month, we are able to deliver products within a short time.
Moreover, we provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks.
