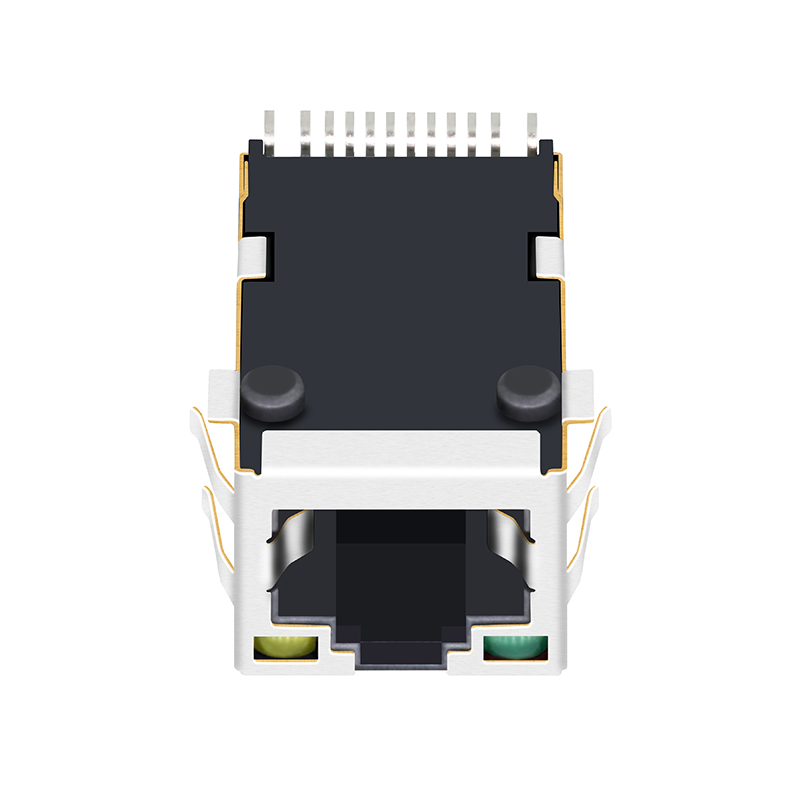

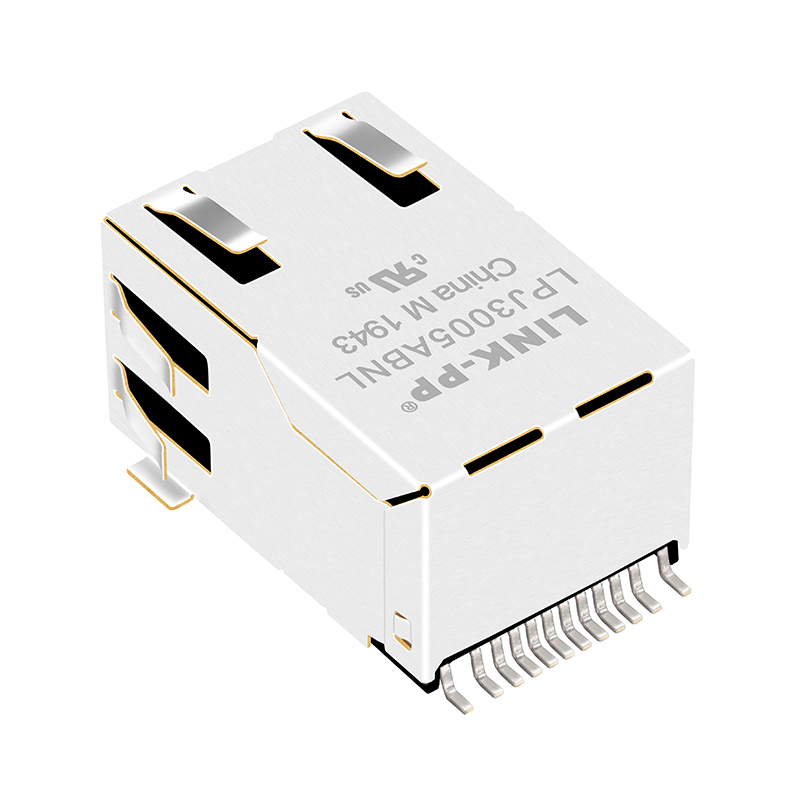

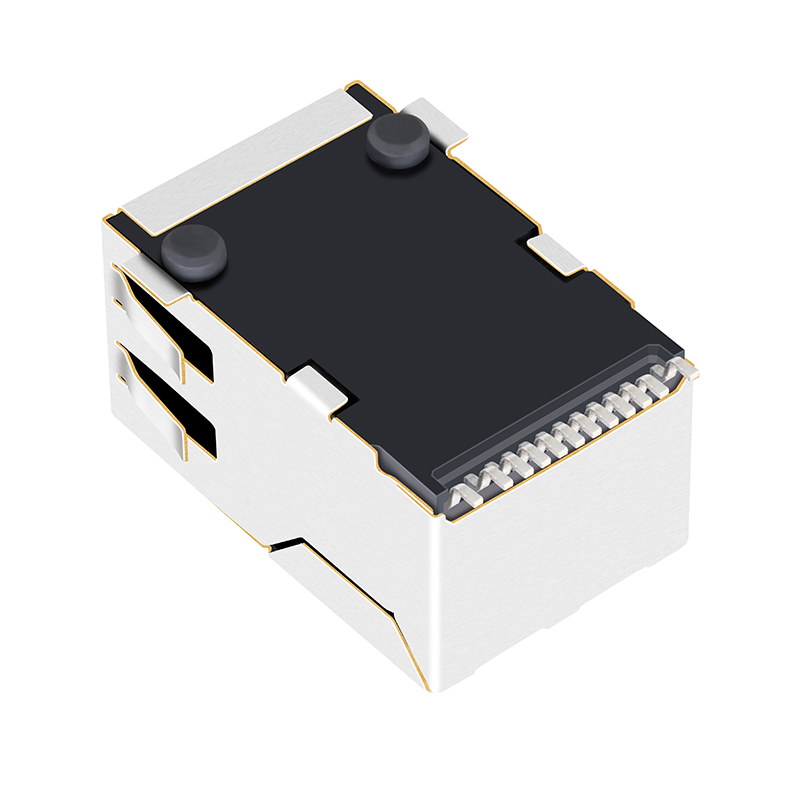

JX30-0005NL 74980111211 J3011G21DNL Surface Mount 8p8c RJ45 Female Connector

Product Description

JX30-0005NL 74980111211 J3011G21DNL Surface Mount 8p8c RJ45 Female Connector
RJ45 Connector Overview
Products Description
ItemRJ45 Female Connector
Part NumberLPJ3005ABNL
Compatible Part NumberJX30-0005NL 74980111211 J3011G21DNL
Part StatusActive
Connector TypeJack
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Application-LanEthernet (Non-PoE)
Number of Ports1x1 Port
Speed10/100 Base-T
LatchUp
Cores per Port4
Orientation90° Angle (Right)
PCB Mount AngleSIDE ENTRY
Shield EMI TabsWith
LED OptionGreen/Yellow
PCB MaterialFR4
PCB Retaining PostT POST
Temperature-40℃ TO 85℃
Bst CircuitYes
AutoMDIXYES
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C

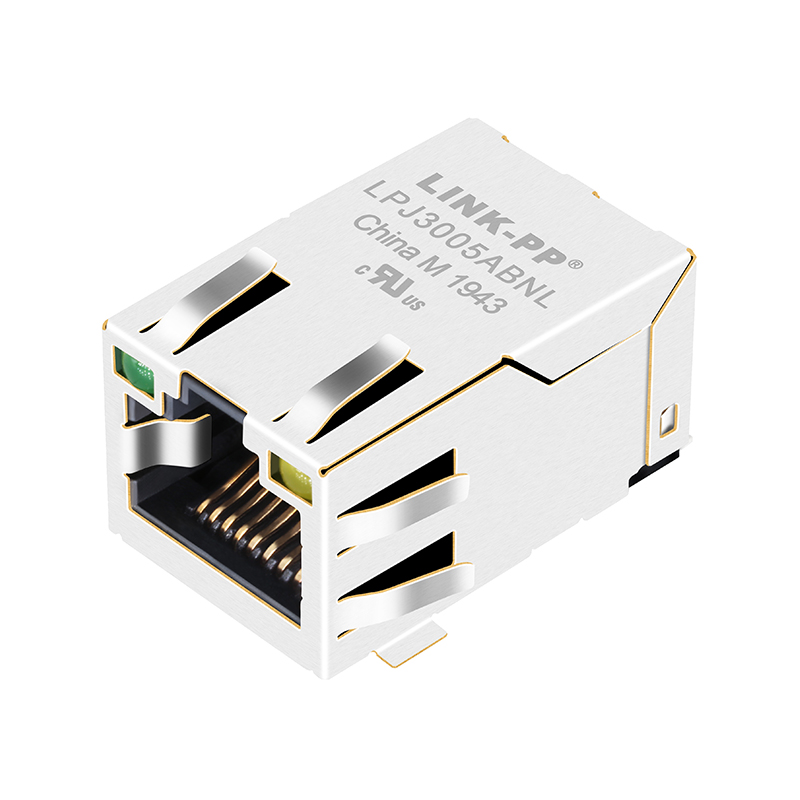

Detail 1

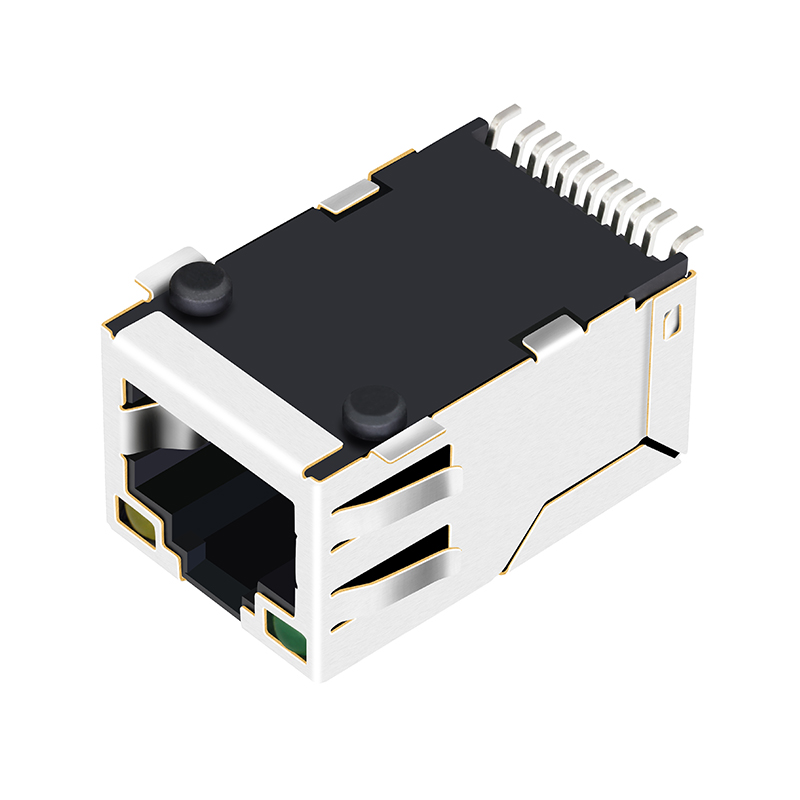

Detail 2
Detail 3
Detail 4
Detail 5
Product Series Showcase
Product Series
Quality Control 1
Quality Control 2
Manufacturing 1
Manufacturing 2
Certificate 1
Certificate 2
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.

As a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, we serve more than 10,000+ customers across over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
Workshop
Equipment
Frequently Asked Questions
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer free samples to test quality, though shipping fees are typically covered by the requester.
What is your delivery time?
Items in stock are ready to ship immediately; mass production typically takes 15-30 days.
What after-service can you offer?
We provide a one-year guarantee period and offer technical support online 24 hours a day.
Can you accept OEM/ODM orders?
Yes, we welcome OEM/ODM inquiries for detailed discussion on your specific requirements.
What is your advantage?
We have over 19 years of production experience and have been a trusted partner for major industry leaders for many years.
