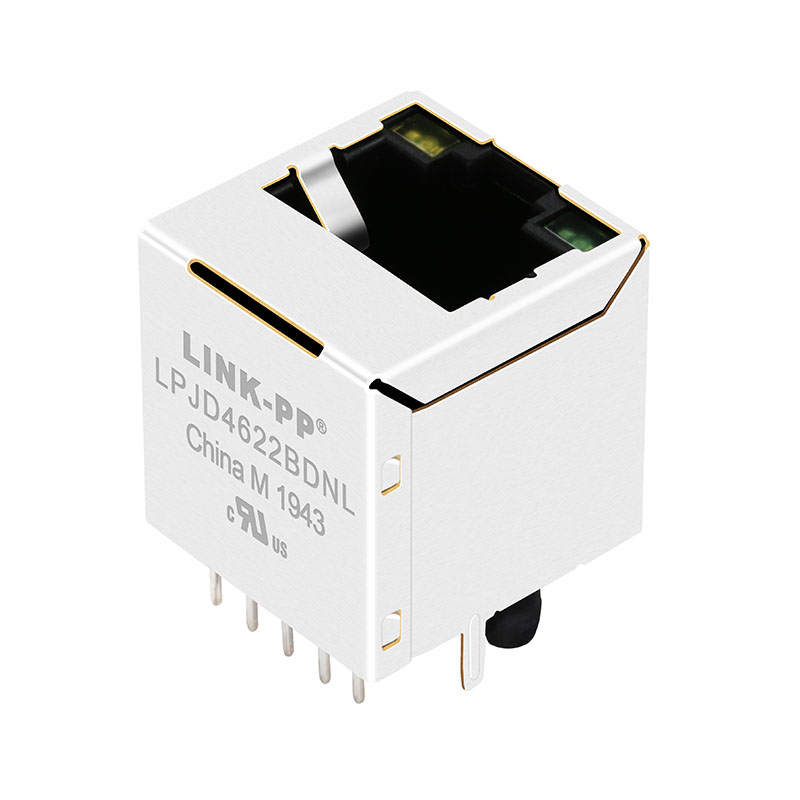

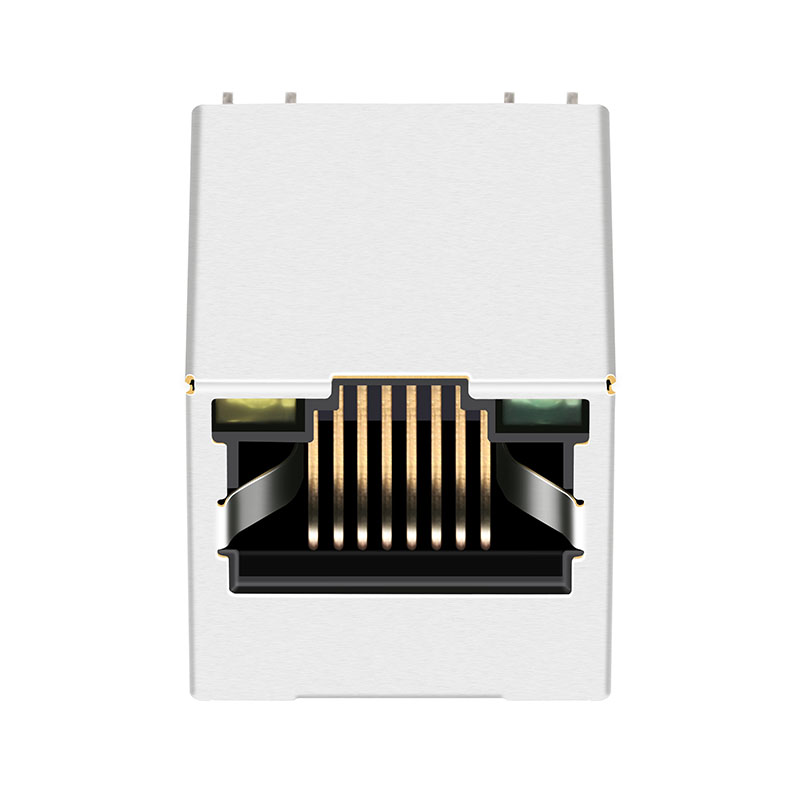

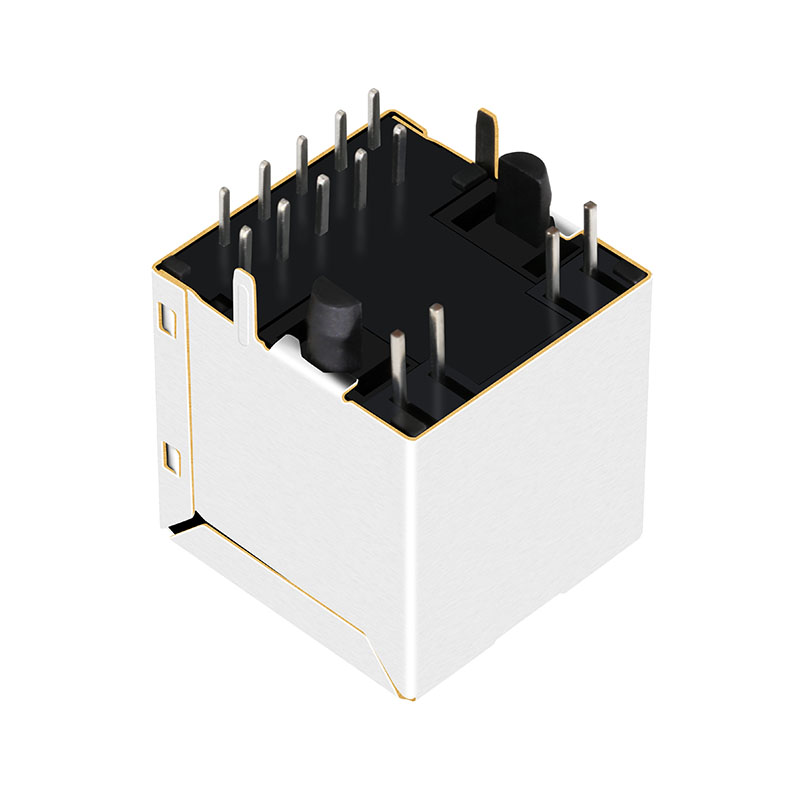

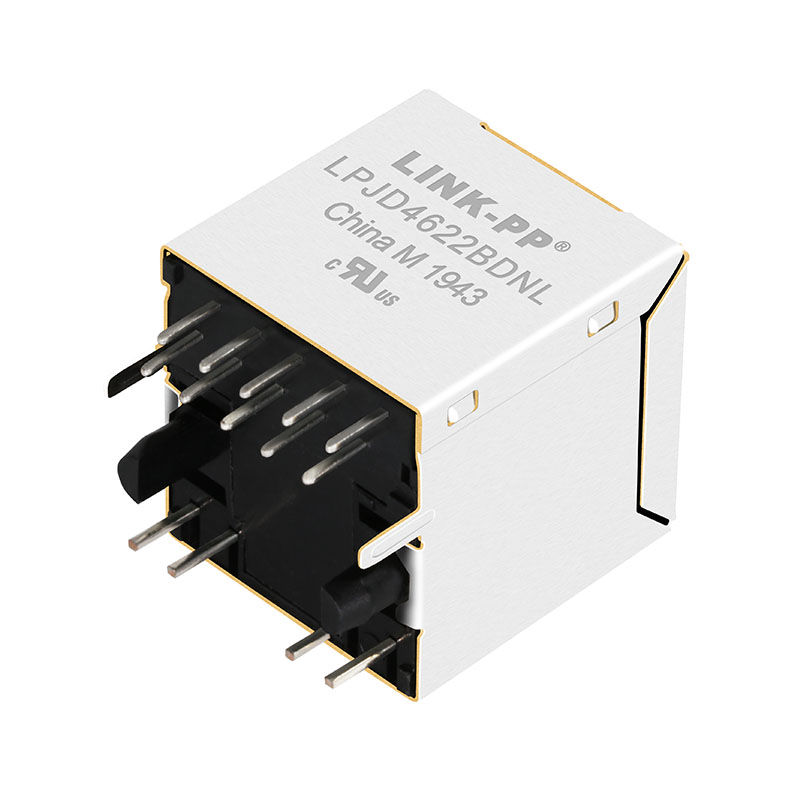

1840472-1 7499110120A JXD2-0015NL with Leds 1000Base-T Vertical RJ45 Connector

1 / 5

1840472-1 7499110120A JXD2-0015NL with Leds 1000Base-T Vertical RJ45 Connector

Send Inquiry

Product Description

Products Description

Item	RJ45 Female Connector
Part Number	LPJD4622BDNL
Cross Reference	1840472-1 7499110120A JXD2-0015NL
Part Status	Active
Connector Type	Jack
Number of Contacts	8p8c (RJ45, Ethernet)
Application-Lan	Ethernet (Non-PoE)
Number of Ports	1x1 Port
Speed	10/100/1000 Base-T
Latch Direction	Up
Cores per Port	8
Orientation	90° Angle (Right)
PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	Without
LED Option	Green/Yellow
PCB Material	FR4
Temperature Range	-40℃ TO 85℃
Bst Circuit	Yes
AutoMDIX	YES
Contact Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT

Product Detail Gallery

Extensive Product Range

Professional Manufacturing

About Us

Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we serve as a global supplier to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers across 200 countries.

By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to being a world leader in Ethernet RJ45 connectors and LAN transformer technology.

Frequently Asked Questions

1. Are you a manufacturer or a trading company?

We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

2. Can I request a sample before mass production?

Yes, we provide free samples to test quality. The customer is responsible for the shipping fees.

3. What is the standard delivery time?

Items in stock are ready to ship immediately. For mass production, the lead time is typically 15-30 days.

4. What kind of after-sales service do you provide?

We offer a one-year guarantee period along with 24-hour online technical support.

5. Do you accept OEM/ODM orders?

Yes, we welcome OEM and ODM inquiries. Please contact us to discuss your specific technical requirements.

6. What are your core advantages?

With over 19 years of production experience, we have established long-term partnerships with industry leaders and maintain a vast inventory for global supply.

Product Detail

1840472-1 7499110120A JXD2-0015NL with Leds 1000Base-T Vertical RJ45 Connector

Product Description
