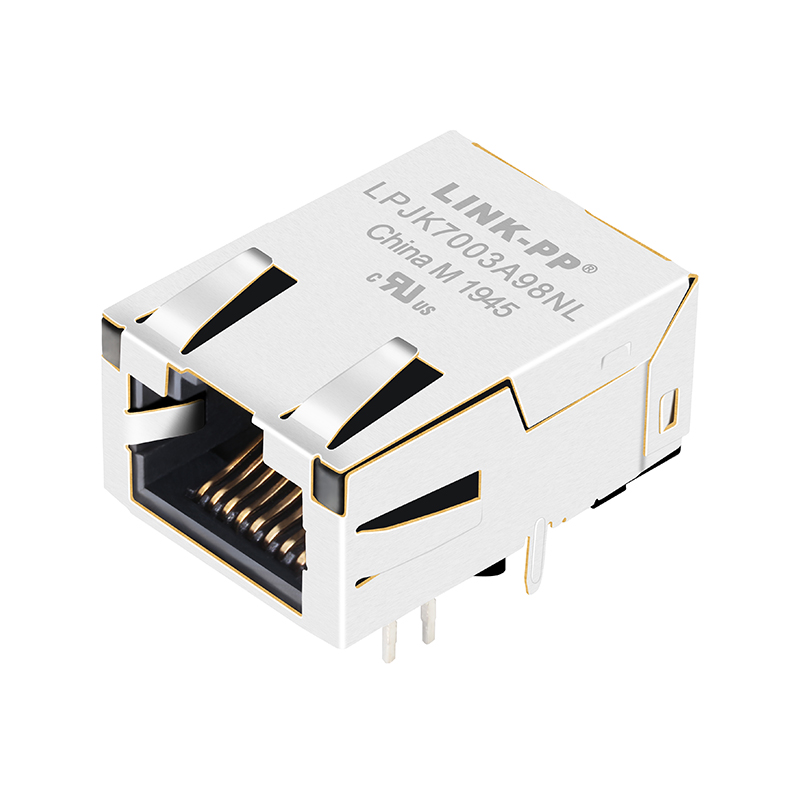

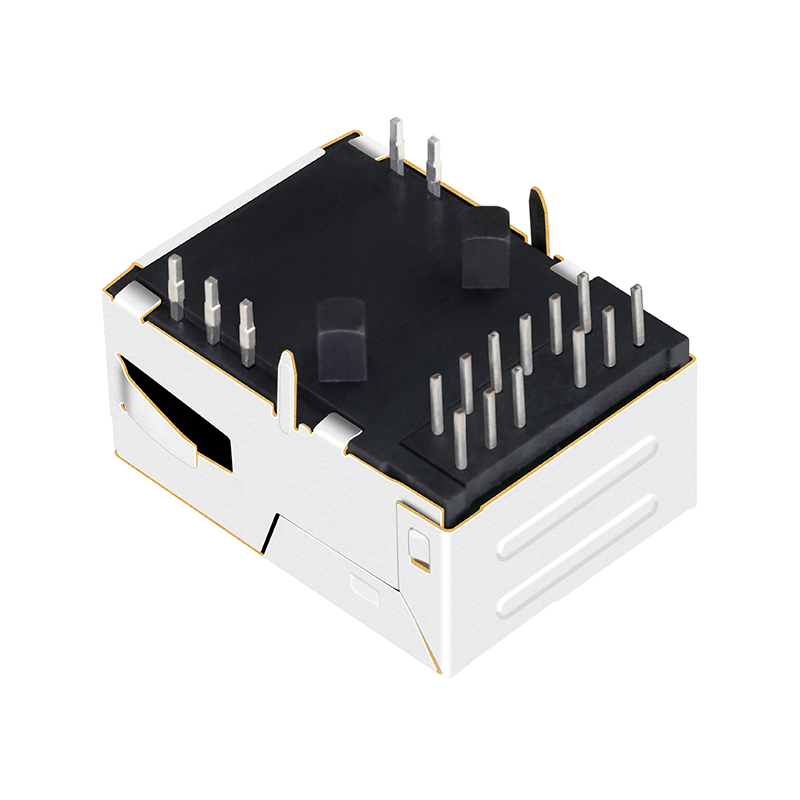

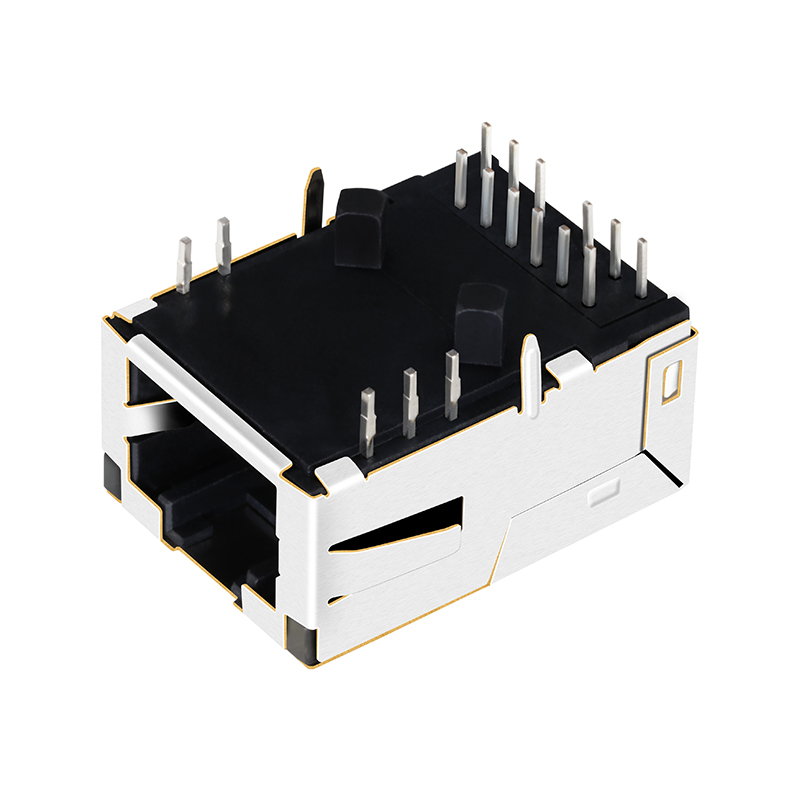

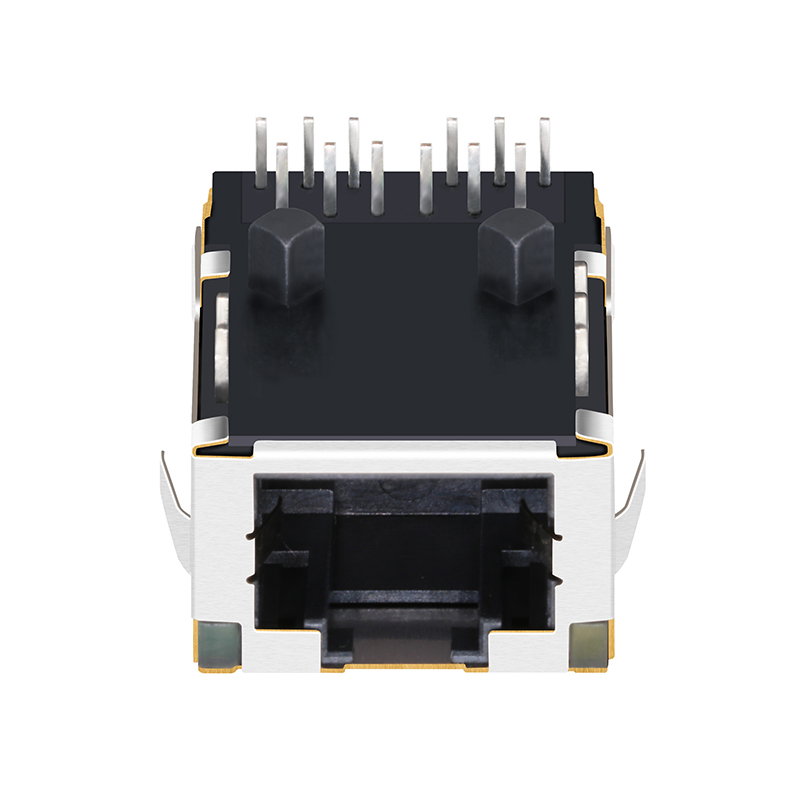

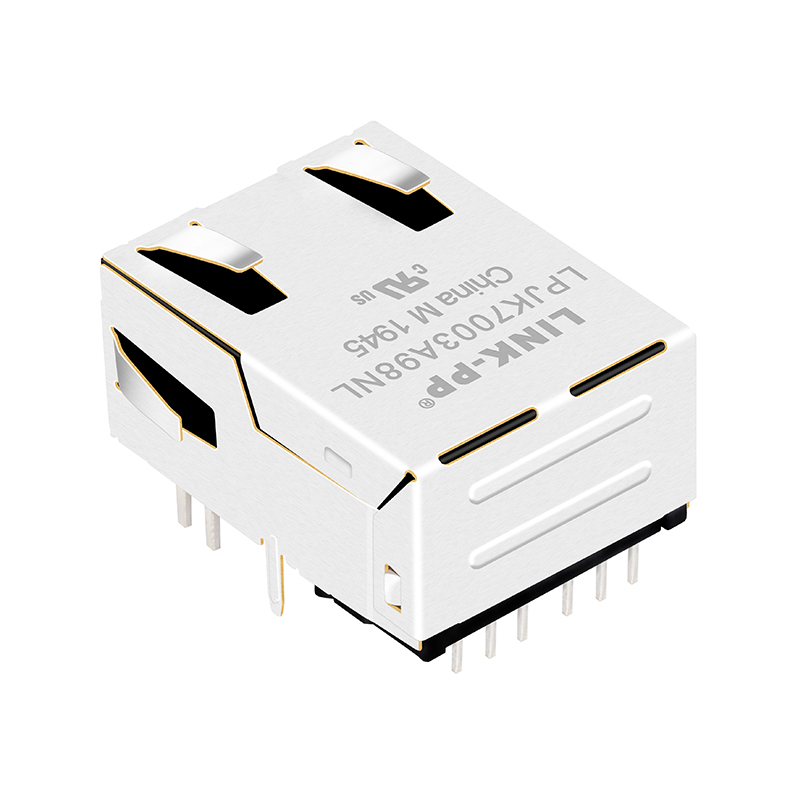

Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL
Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL
Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL
Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL
Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL
1 / 5
Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL
Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL
Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL
Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL
Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL

Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL

Send Inquiry

Product Description

RJ45 Connector Overview
Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL
📋 Products Description
ItemRJ45 Female Connector
Part NumberLPJK7003A98NL
Part StatusActive
Connector TypeJack
Number of Positions/Contacts10p8c (RJ45, Ethernet)
Application-LanEthernet (Non PoE)
Number of Ports1x1 Port, Low Profile
Speed10/100/1000 Base-T
LatchDown
Cores per Port8
Orientation90° Angle (Right)
PCB Mount AngleSIDE ENTRY
Shield EMI TabsWith
LED OptionOrange&Green/Yellow
PCBFR4
PCB Retaining PostT POST
Temperature0℃ TO 70℃
Bst CircuitYes
AutomDXYES
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C
Product Detail 1
Product Detail 2
Detail 3
Detail 4
Detail 5
🔍 More Product Options
Product Matrix
Drawing 1
Drawing 2
Quality Control 1
Quality Control 2
🏭 Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming a leading provider of Ethernet RJ45 connectors and LAN transformers.
Factory Overview
Production Line
❓ FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, though shipping fees are typically covered by the customer.
What is your delivery time?
Items in stock are ready to ship immediately. For mass production, the lead time is generally 15-30 days.
What after-service can you offer?
We provide a one-year guarantee period and offer technical support online 24 hours a day.
Can you accept OEM/ODM orders?
Yes, we welcome OEM and ODM inquiries. Please contact us to discuss your detailed requirements.
What is your advantage?
We have 19 years of professional production experience and have been a trusted partner to major industry leaders for many years.
