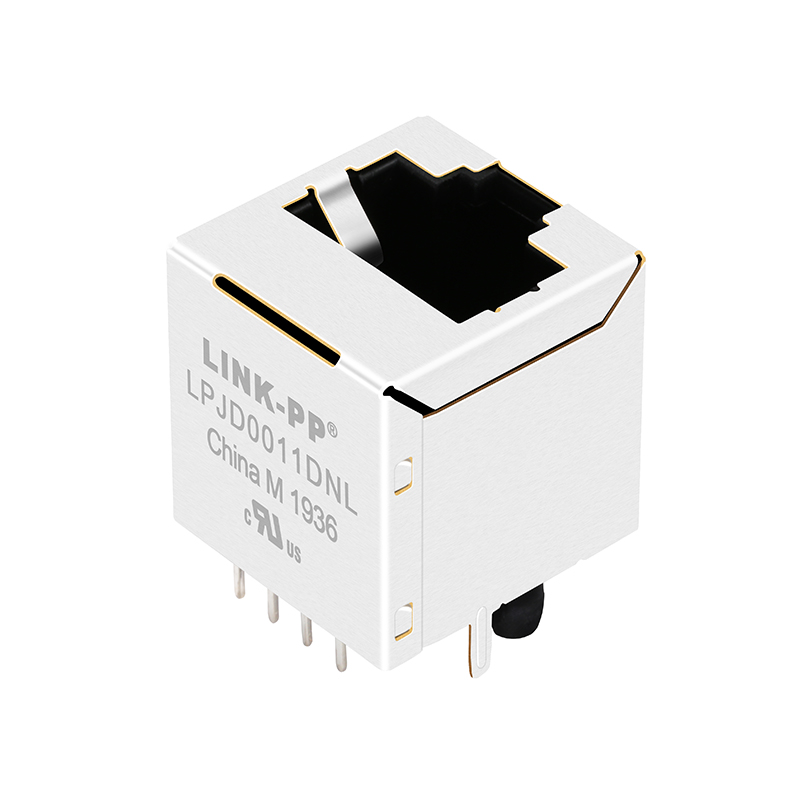

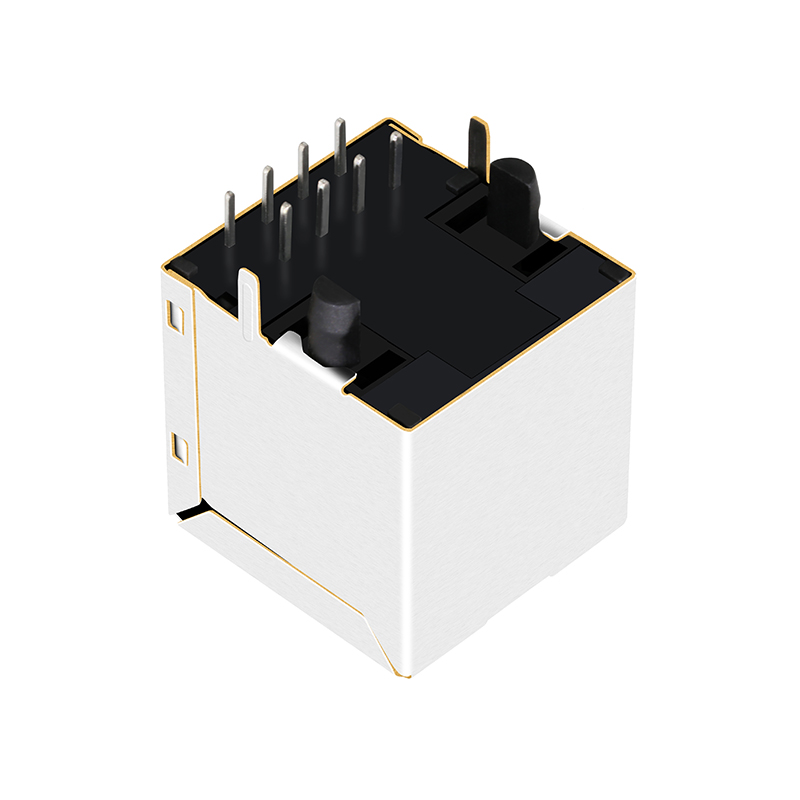

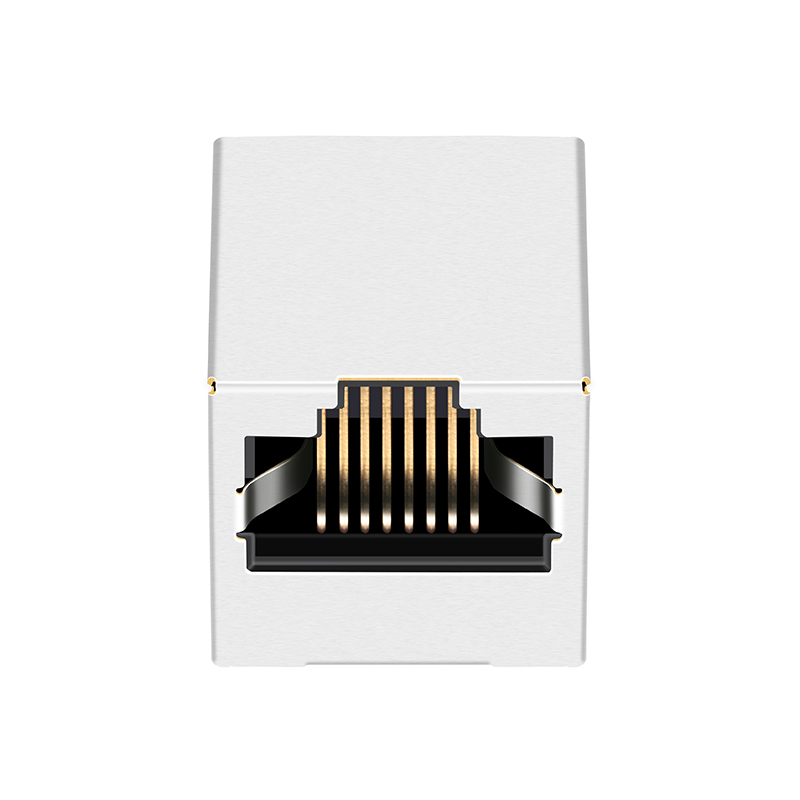

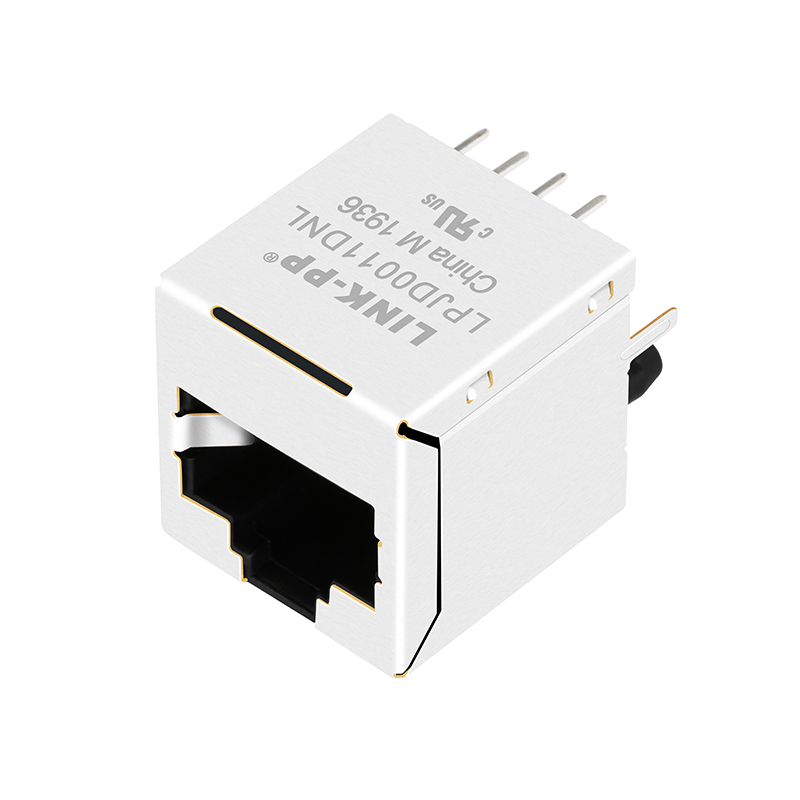

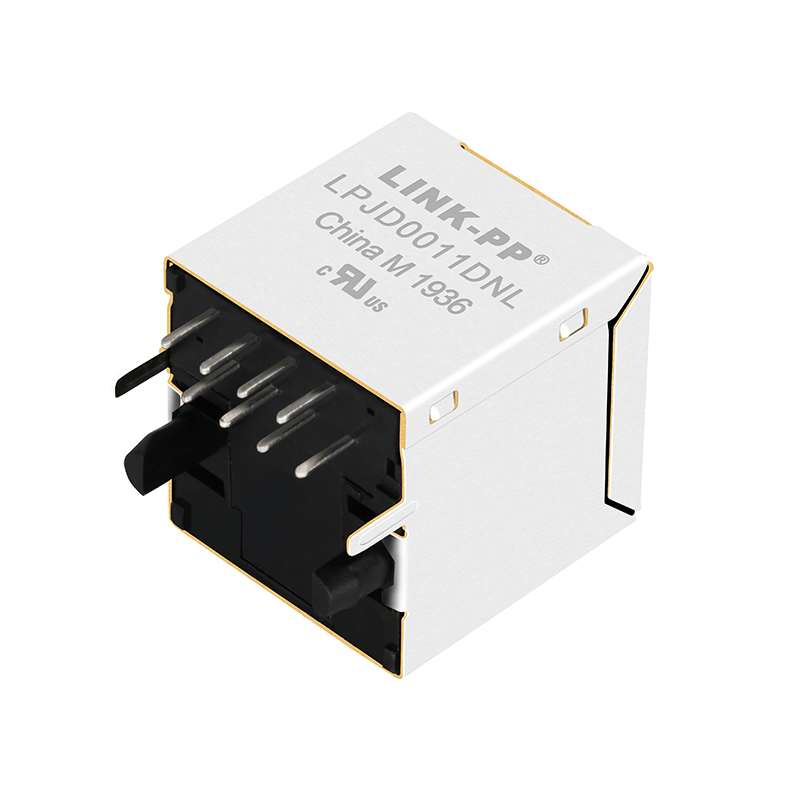

51F-1202ND2 51F-1202ND2NL 10/100 Base-t Vertical Top Entry RJ45 Connector Without Leds
51F-1202ND2 51F-1202ND2NL 10/100 Base-t Vertical Top Entry RJ45 Connector Without Leds
51F-1202ND2 51F-1202ND2NL 10/100 Base-t Vertical Top Entry RJ45 Connector Without Leds
51F-1202ND2 51F-1202ND2NL 10/100 Base-t Vertical Top Entry RJ45 Connector Without Leds
51F-1202ND2 51F-1202ND2NL 10/100 Base-t Vertical Top Entry RJ45 Connector Without Leds
1 / 5
51F-1202ND2 51F-1202ND2NL 10/100 Base-t Vertical Top Entry RJ45 Connector Without Leds
51F-1202ND2 51F-1202ND2NL 10/100 Base-t Vertical Top Entry RJ45 Connector Without Leds
51F-1202ND2 51F-1202ND2NL 10/100 Base-t Vertical Top Entry RJ45 Connector Without Leds
51F-1202ND2 51F-1202ND2NL 10/100 Base-t Vertical Top Entry RJ45 Connector Without Leds
51F-1202ND2 51F-1202ND2NL 10/100 Base-t Vertical Top Entry RJ45 Connector Without Leds

51F-1202ND2 51F-1202ND2NL 10/100 Base-t Vertical Top Entry RJ45 Connector Without Leds

Send Inquiry

Product Description

RJ45 Connector Overview
51F-1202ND2 51F-1202ND2NL 10/100 Base-t Vertical Top Entry RJ45 Connector Without Leds
🔹 Products Description
ItemRJ45 Female Connector
Part StatusActive
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Application-LanEthernet(NoN PoE)
Number of Ports1x1 Port
Speed10/100 Base-T
Cores per Port4
Orientation180° Angle (Right)
PCB Mount AngleTop Entry
Shield EMI TabsWithout
LED OptionWithout
PCB MaterialFR4
Temperature Range0℃ TO 70℃
Contact PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CT
Product Detail
🔹 Product Categories & Variations
Connector Types
Technical Drawing
Application Scene
Quality Control
Production Line
Packaging
🔹 Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities. We are a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming a leading Ethernet RJ45 connector and LAN transformer provider.
Facility 1
Facility 2
Facility 3
🔹 Frequently Asked Questions
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, though shipping fees are typically covered by the customer.
What is your delivery time?
Items in stock are ready to ship immediately. For mass production, the lead time is generally 15-30 days.
What after-service do you offer?
We provide a one-year guarantee period and offer 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, we welcome OEM and ODM inquiries. Please provide your specifications for a detailed discussion.
What is your core advantage?
We have over 19 years of professional production experience and have served as a trusted partner for major global industry leaders for many years.
