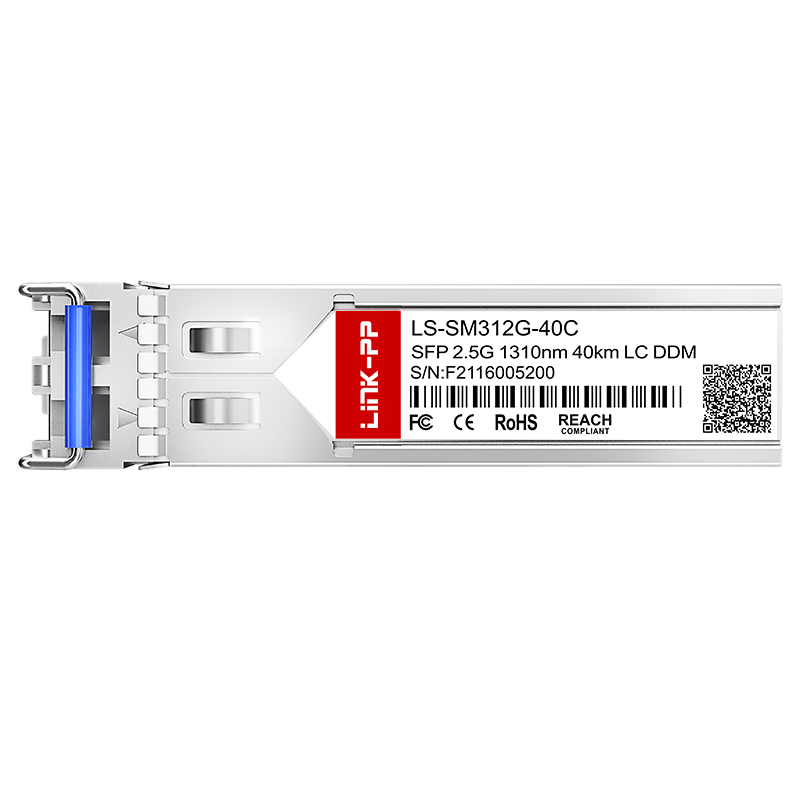

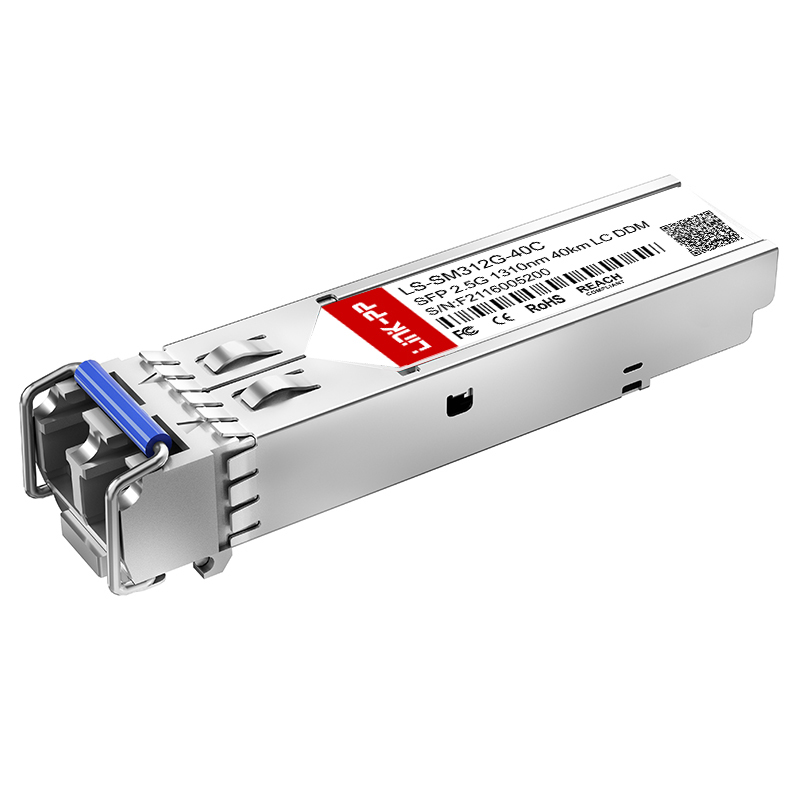

Single Mode SFP 2.5G 1310nm 40km SMF Dual LC Optic Transceiver Module

Product Description

Single Mode SFP 2.5G 1310nm 40km SMF Dual LC Optic Transceiver Module
Form FactorSFP
Max Data Rate2.5Gbps
Wavelength1310nm
Max Cable Distance40km
ConnectorDuplex LC
MediaSMF
Transmitter TypeDFB
Receiver TypePIN
TX Power-2 ~ 3dBm
Receiver Sensitivity< -27dBm
Receiver Overload-3dBm
EMC SupportSupported
DDM/DOMSupported
ProtocolsMSA Compliant
Temperature Range0 to 70°C / -40 to 85°C
Warranty5 Years
VIEW OUR SOLUTIONS
Drawing on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. A full series of optical modules is provided for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Transceiver
Solution Overview
Support Full Range Of 2.5G SFP
Part Number Data Rate Wavelength Distance Media DDM
LS-MM852G-S3C2.5Gbps850nm300mMulti-modeYes
LS-MM852G-S5C2.5Gbps850nm550mMulti-modeYes
LS-SM312G-02C2.5Gbps1310nm2kmSingle ModeYes
LS-SM312G-10C2.5Gbps1310nm10kmSingle ModeYes
LS-SM312G-15C2.5Gbps1310nm15kmSingle ModeYes
LS-SM312G-20C2.5Gbps1310nm20kmSingle ModeYes
LS-SM552G-20C2.5Gbps1550nm20kmSingle ModeYes
LS-SM312G-40C2.5Gbps1310nm40kmSingle ModeYes
LS-SM552G-40C2.5Gbps1550nm40kmSingle ModeYes
LS-SM552G-80C2.5Gbps1550nm80kmSingle ModeYes
🌐
Optical Transport Networks
End-to-end DWDM device solutions with active modules and optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR.
Transport Networks
Cloud Enterprise
☁️
Cloud and Enterprise
High-speed optical modules with rates ranging from 10G to 800G, providing high-quality interconnection solutions for data centers and mass data transmission.
📶
Wireless & FTTx
High reliability performance products with mature laser and mainstream chip solutions. Includes Dark Fiber, WDM, and solutions for 4G/5G systems, alongside total FTTx fiber access solutions.
Wireless Solution
FTTx Solution
Why Choose Our Solutions
As a specialized manufacturer of magnetic telecom and network components, we are certified by ISO9001:2000, ROSH, REACH, CE, and UL. With advanced manufacturing and testing equipment, we provide a complete series of optical modules for fixed access, wireless access, and cloud computing.
Quality
Production
Testing
Frequently Asked Questions
1. Are you a manufacturer or trading company? We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, lan transformers, and SFP modules.
2. Can I get a sample before mass production? Yes, we can offer free samples to test quality, though shipping fees are typically covered by the requester.
3. What is the standard delivery time? Items in stock are ready to ship immediately, while mass production typically takes 15-30 days.
4. What after-service support do you provide? We provide a one-year guarantee period and offer technical support online 24 hours a day.
5. Do you accept OEM/ODM orders? Yes, we accept both OEM and ODM orders. Please contact us for a detailed discussion regarding your requirements.
6. What are your core advantages? With 19 years of production experience, we have established long-term partnerships with industry leaders and maintain high-capacity production of 3000K per month.
