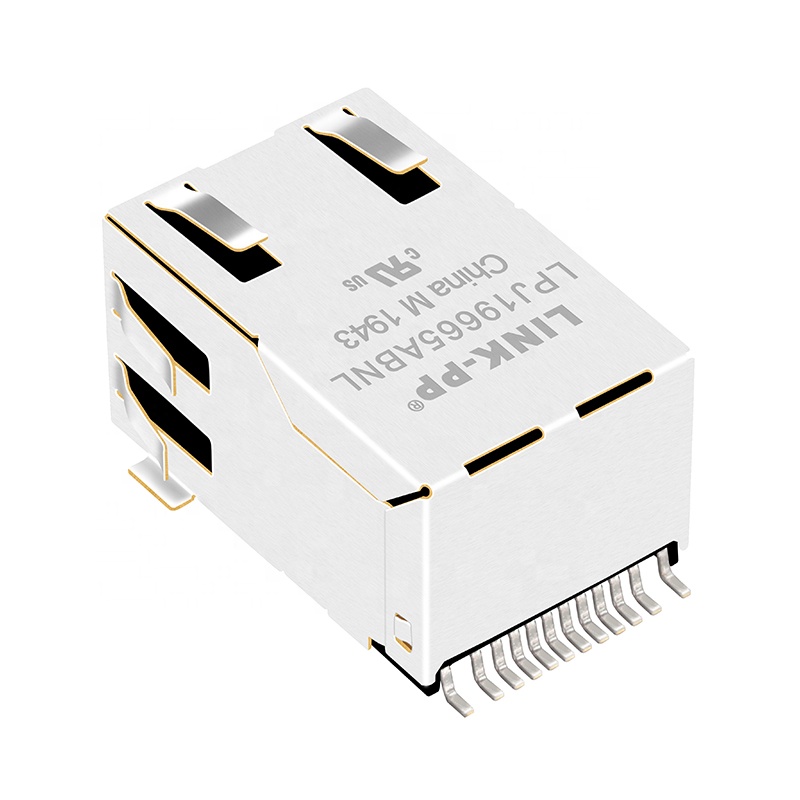

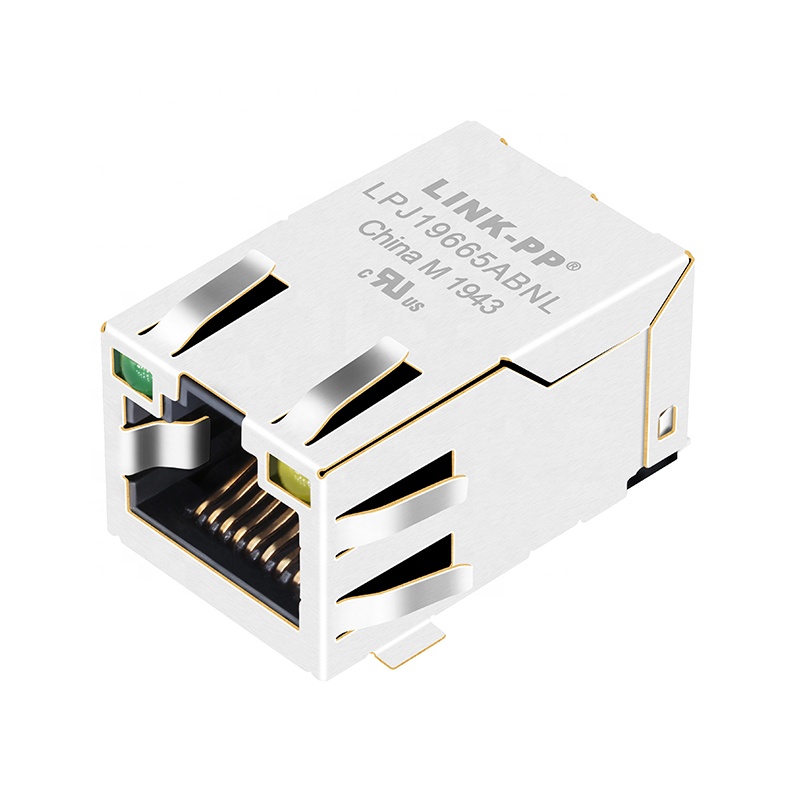

| Item | RJ45 Female Connector |
| Part Number | LPJ19665ABNL |
| Cross Reference | 7498010210A |
| Part Status | Active |
| Connector Type | Jack |
| Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(Non PoE) |
| Number of Ports | 1x1 Port |
| Speed | 10/100 Base-T |
| Latch | Up |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | With |
| LED Option | Green/Yellow |
| PCB Material | FR4 |
| Temperature Range | -40℃ TO 85℃ |
| Contact Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
