LumoWave
1 / 5
With over 10 years of experience in chips and modules, we integrate fast speeds, small size, power savings, and high performance in every module. Our full series of optical modules supports fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

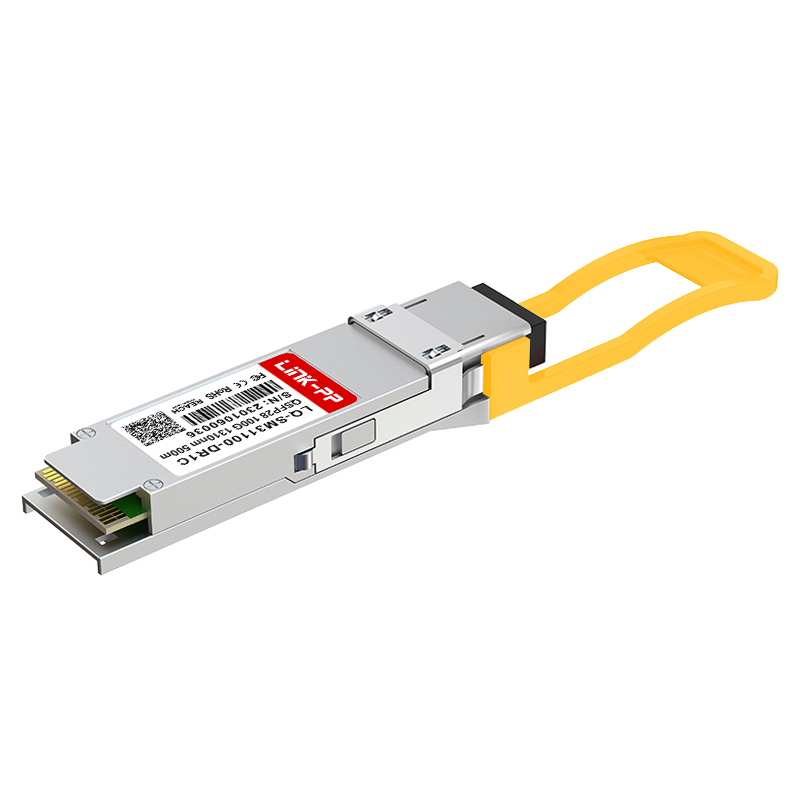

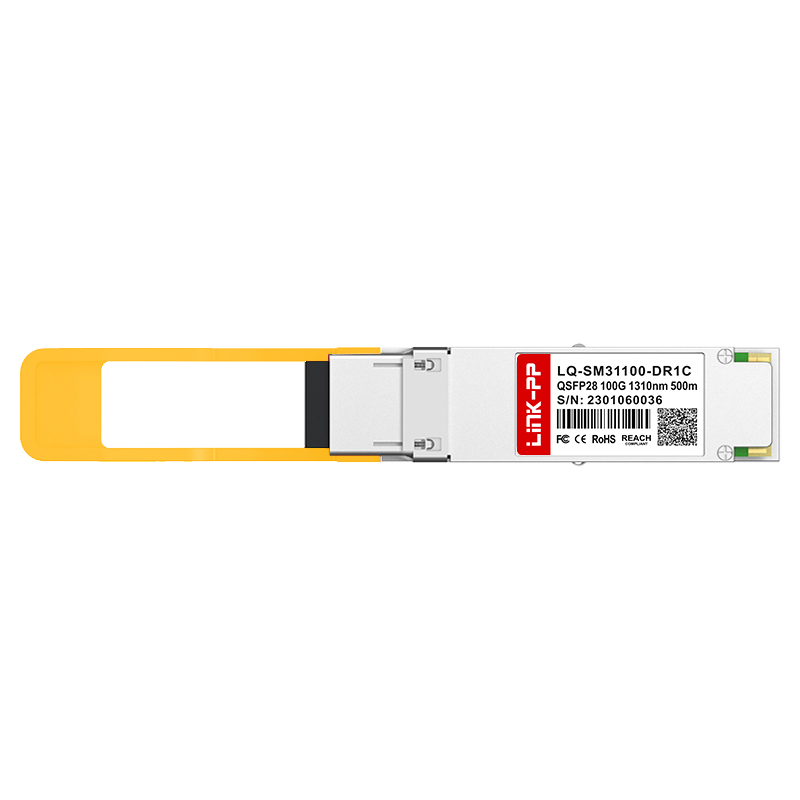

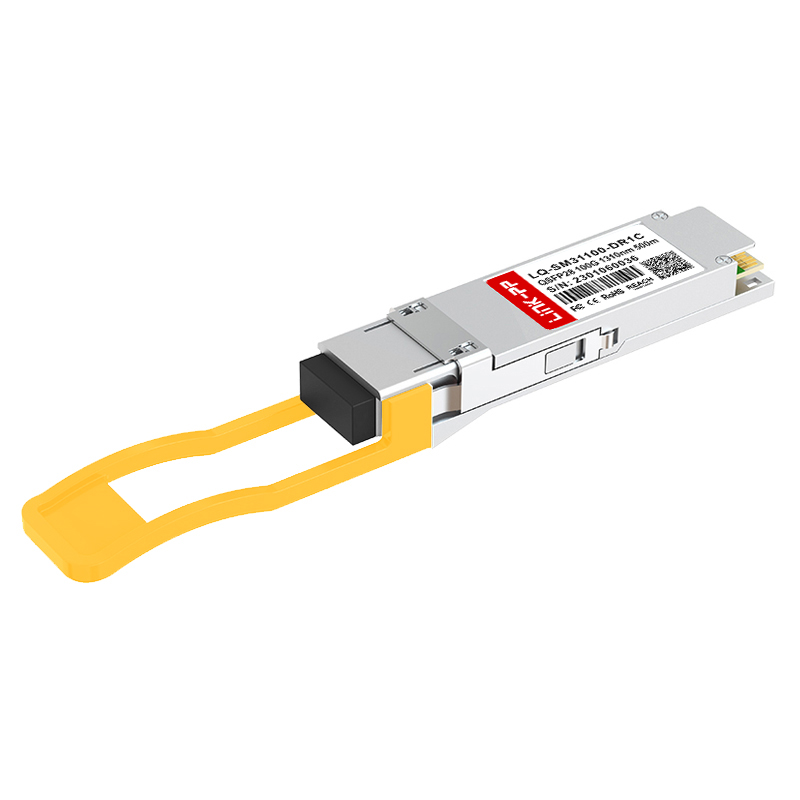

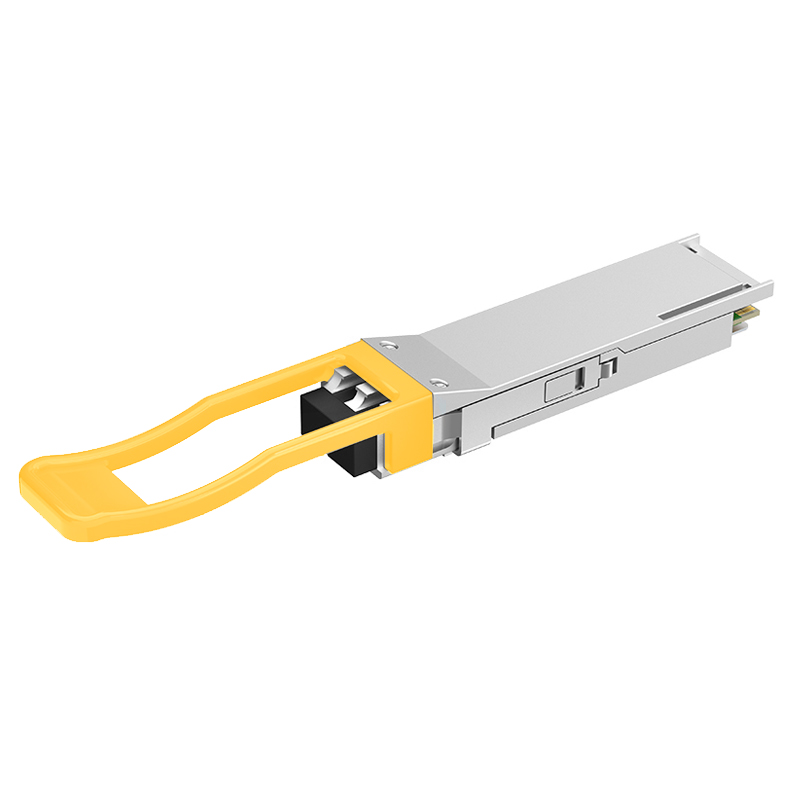

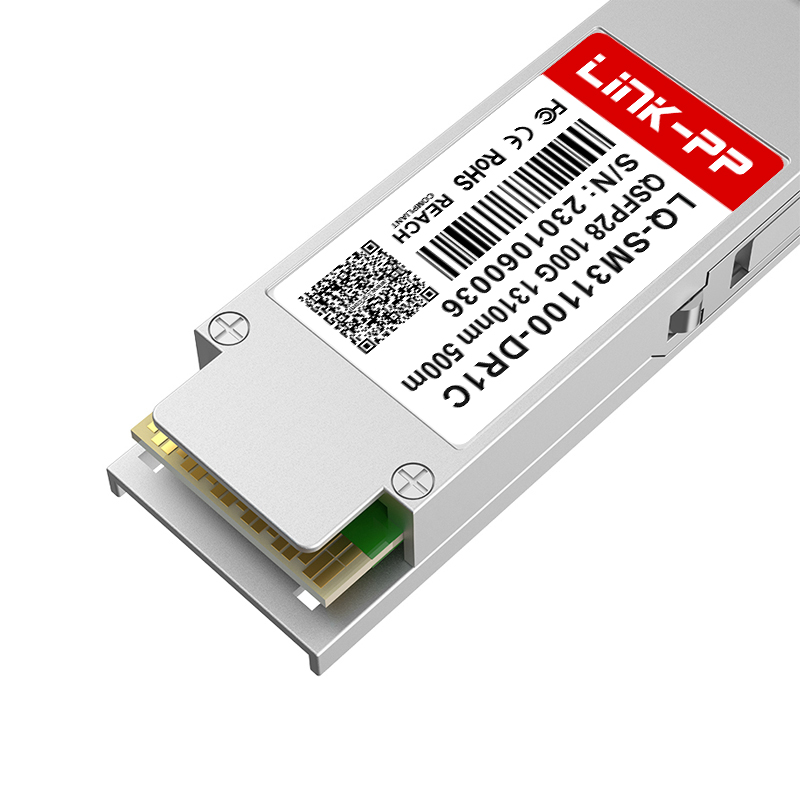

| Form Factor | QSFP28 |
| Max Data Rate | 100Gbps |
| Wavelength | 1310nm |
| Max Cable Distance | 500m |
| Connector | Duplex LC |
| Media | SMF |
| Transmitter Type | EML |
| Receiver Type | PIN |
| EMC Supported | Yes |
| DDM/DOM | Supported |
| Protocols | IEEE 802.3cd 100GBASE-DR Specification compliant |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
Comprehensive end-to-end DWDM device solutions ranging from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, ROADM, and OTDR.
High-speed optical interconnect solutions for data centers with product rates ranging from 10G to 800G, designed to meet mass data transmission demands.
High reliability performance products using mature laser and chip solutions. Covers Dark Fiber, WDM, Radio over Fiber, and Back-haul for 4G/5G system scenarios.
Total fiber access solutions including optical copper combined access and optical line protection systems (OLP) to ensure stable communication line operations.
We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, ROSH, REACH, CE and UL. With advanced manufacturing and testing equipment, we maintain an abundant production capacity of 3000K per month, ensuring short delivery times. Our range includes high-speed optical interconnect solutions for cloud computing and ultra-broadband networks using the latest optoelectronic technologies.
