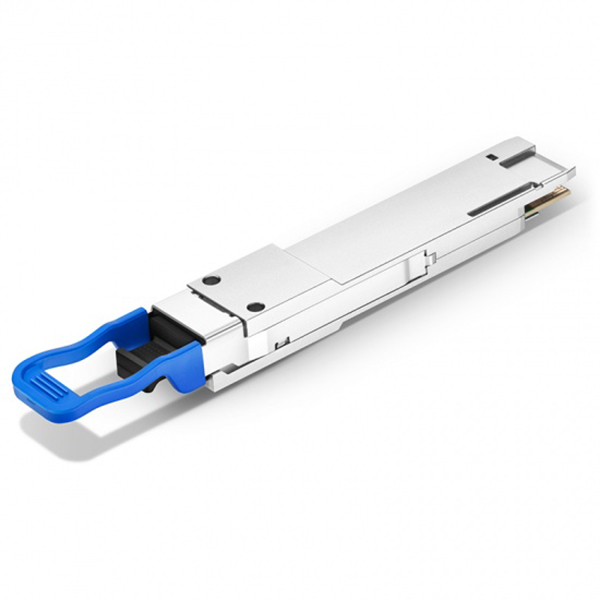

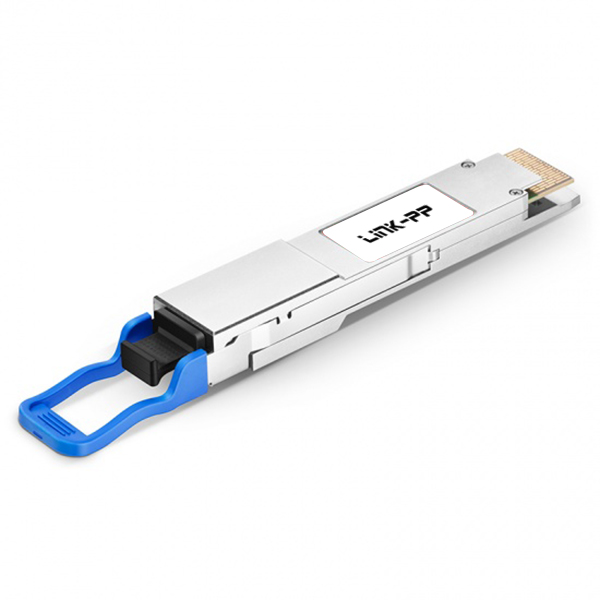

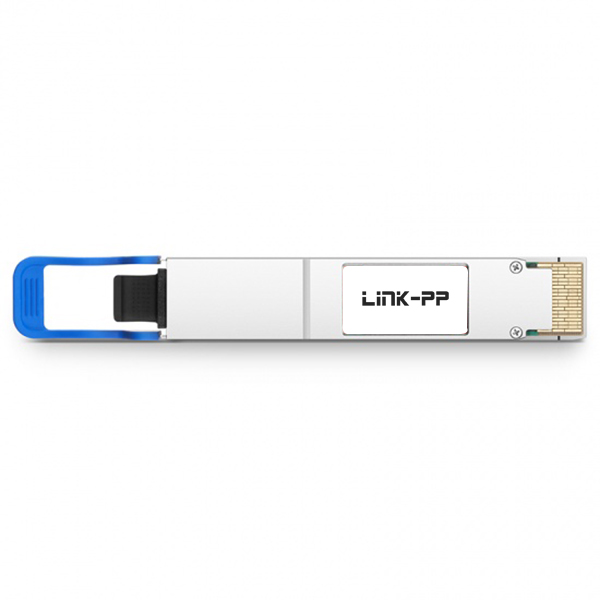

| Item | Fiber Optical Modules |
| Part Status | Active |
| Form Factor | QSFP-DD |
| Max Data Rate | 425Gbps |
| Max Cable Distance | 10km |
| Wavelength | 1310nm |
| Connector | Duplex LC |
| Media | SMF |
| Optical Component | LWDM EML/PIN |
| TX Power | -2.8~5.3dBm |
| RX Power | -9.1~5.3dBm |
| Modulation | 8x 50G PAM4 |
| Powerbudget | 6.3dB |
| Power Consumption | ≤10W |
| Extinction Ratio | 3.5dB |
| DDM/DOM | DDM Supported |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Warranty | 5 Years |
| Sample | Available |
| Protocols | IEEE 802.3bs, QSFP-DD MSA, CMIS 4.1 |
Expertise We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.
Our solution provides a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. Our facility owns advanced manufacturing and test equipment imported from abroad.
With an abundant productive capacity of 3000K per month, we are able to deliver products within a short time. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks.
