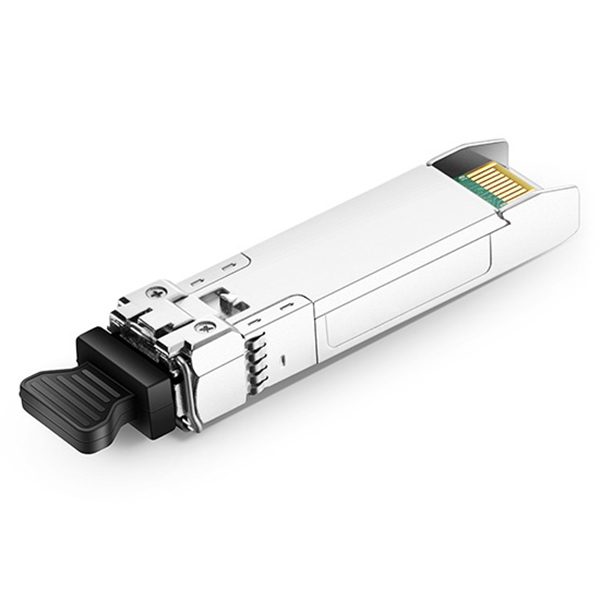

| Item | DWDM SFP |
| Part Status | Active |
| Form Factor | SFP28 |
| Max Data Rate | 25.78Gbps |
| Max Cable Distance | 10km |
| Wavelength | 15xx.xx nm |
| Connector | Duplex LC |
| Media | SMF |
| Optical Component | EML DWDM/PIN |
| TX Power | -2~6dBm |
| Receiver Sensitivity | <-12dBm |
| Power Consumption | 2W |
| Extinction Ratio | 4dB |
| Powerbudget | 10dB |
| DDM/DOM | DDM Supported |
| Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | MSA Compliant, CPRI, eCPRI |
| Warranty | 5 Years |
| Sample | Available |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. Our facilities utilize advanced manufacturing and test equipment imported from abroad to ensure the highest product reliability.
With an abundant productive capacity, we provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. Our solutions support high-speed optical interconnection for cloud computing and ultra-broadband networks.
