We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
We provide end-to-end DWDM devices with almost all optical devices - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR etc.
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions.
High reliability and performance products with mature and efficient lasers and mainstream chip solutions. Solutions include Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul for 4G/5G systems.
Total FTTx optical fiber access solutions covered from all-optical or optical copper combined access solutions and products for global communication network constructers.
Optical cable O&M solutions integrating an optical line protection system (OLP) and an optical line monitoring system (OLM) to ensure normal communication line operation.

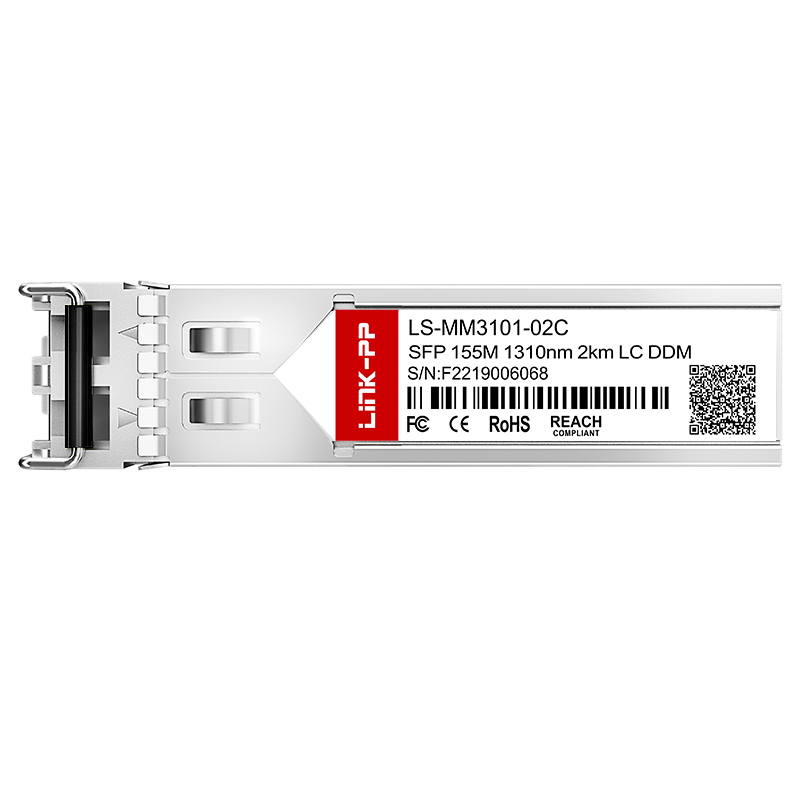

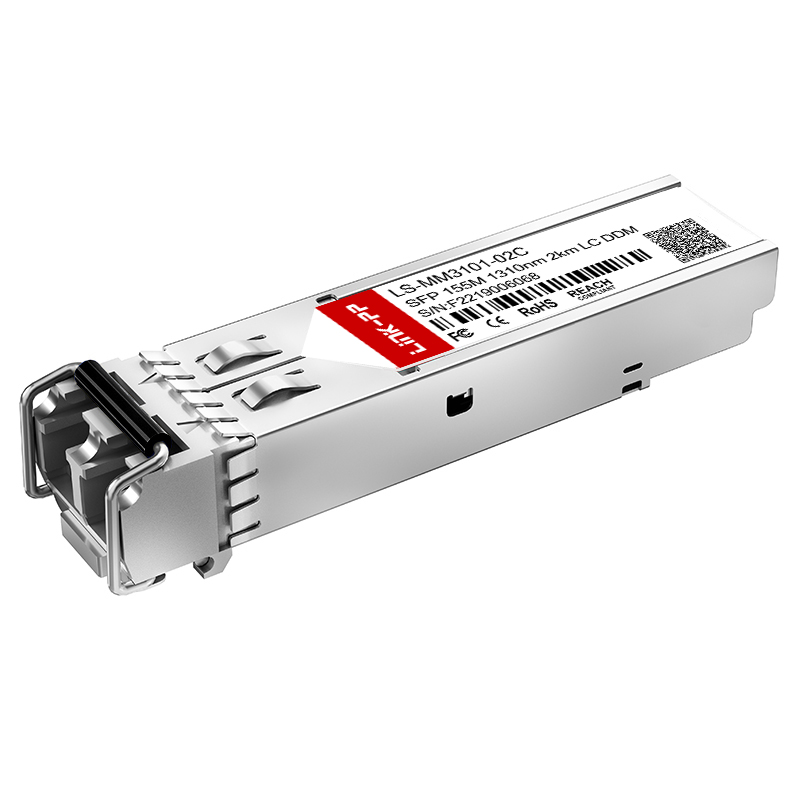

M-FAST SFP-MM/LC Compatible MMF 155M SFP 1310nm 2km Multimode Optical Transceiver Module
| Parameter | Details |
|---|---|
| Form Factor | SFP |
| Max Data Rate | 155Mbps |
| Wavelength | 1310nm |
| Max Cable Distance | 2km |
| Connector | Duplex LC |
| Media | MMF |
| Transmitter Type | FP |
| Receiver Type | PIN |
| TX Power | -15 ~ -8dBm |
| Receiver Sensitivity | < -32dBm |
| DDM/DOM | Supported |
| Protocols | IEEE802.3U, GR-468, MSA Compliant |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
| Part Number | Description |
|---|---|
| LS-MM8501-S5C | SFP 155M, 850nm, 550m, LC, DDM, 0°C-70°C (-40°C-85°C) |
| LS-MM8501-02C | SFP 155M, 850nm, 2km, LC, DDM, 0°C-70°C (-40°C-85°C) |
| LS-MM3101-02C | SFP 155M, 1310nm, 2km, LC, DDM, 0°C-70°C (-40°C-85°C) |
| LS-SM3101-10C | SFP 155M, 1310nm, 10km, LC, DDM, 0°C-70°C (-40°C-85°C) |
| LS-SM3101-40C | SFP 155M, 1310nm, 40km, LC, DDM, 0°C-70°C (-40°C-85°C) |
| LS-SM5501-80C | SFP 155M, 1550nm, 80km, LC, DDM, 0°C-70°C (-40°C-85°C) |
As a specialized manufacturer of magnetic telecom and network components, we are certified by ISO9001:2000, ROHS, REACH, CE and UL. With advanced manufacturing and testing equipment, we maintain a production capacity of 3000K per month, ensuring short delivery times.
Our expertise includes high-speed optical interconnect solutions for cloud computing and ultra-broadband networks, utilizing the latest optoelectronic technologies to design and manufacture products worldwide.
