We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Providing end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
To meet the demand of mass data transmission in data centers, high-speed optical modules with product rates ranging from 10G to 800G have been developed, providing high-quality interconnection solutions.
High reliability products with mature and efficient lasers. Solutions include Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul for 4G/5G systems.
Total solutions for global communication network constructers, covering all-optical or optical copper combined access solutions and products.
Ensuring normal communication line operation via optical line protection systems (OLP) and optical line monitoring systems (OLM).

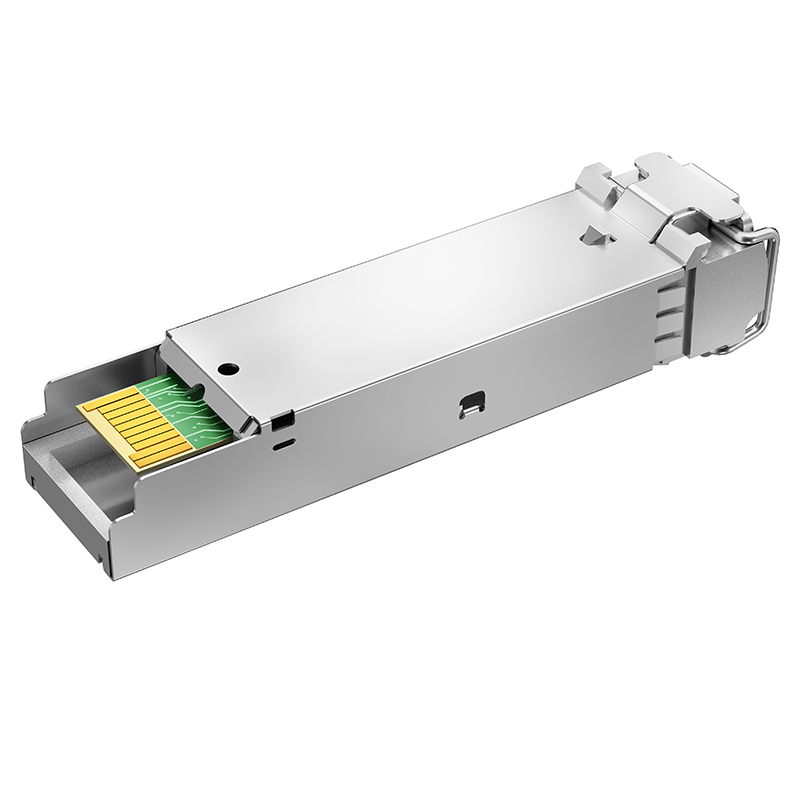

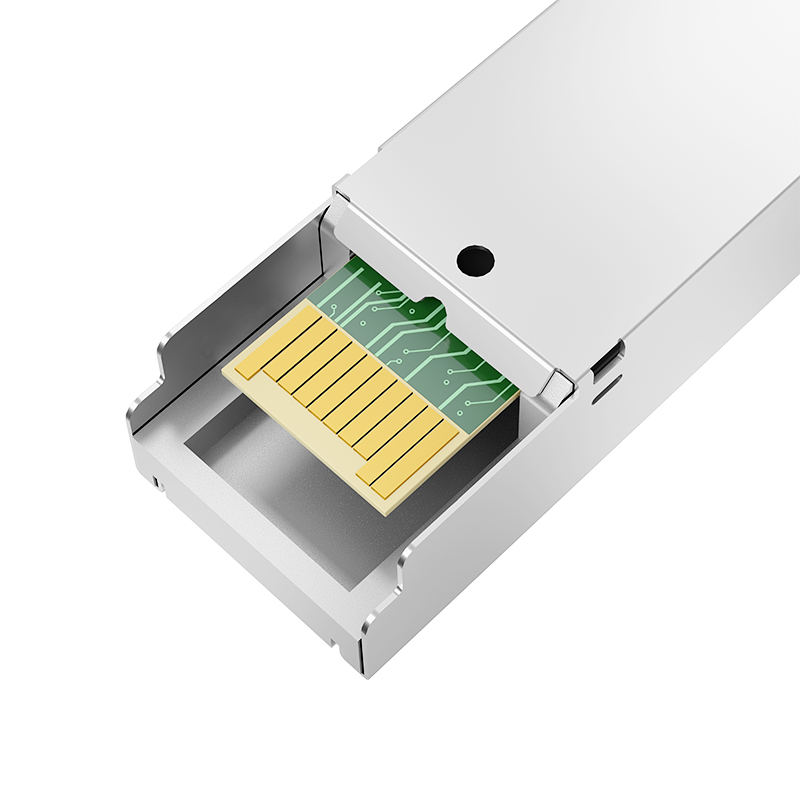

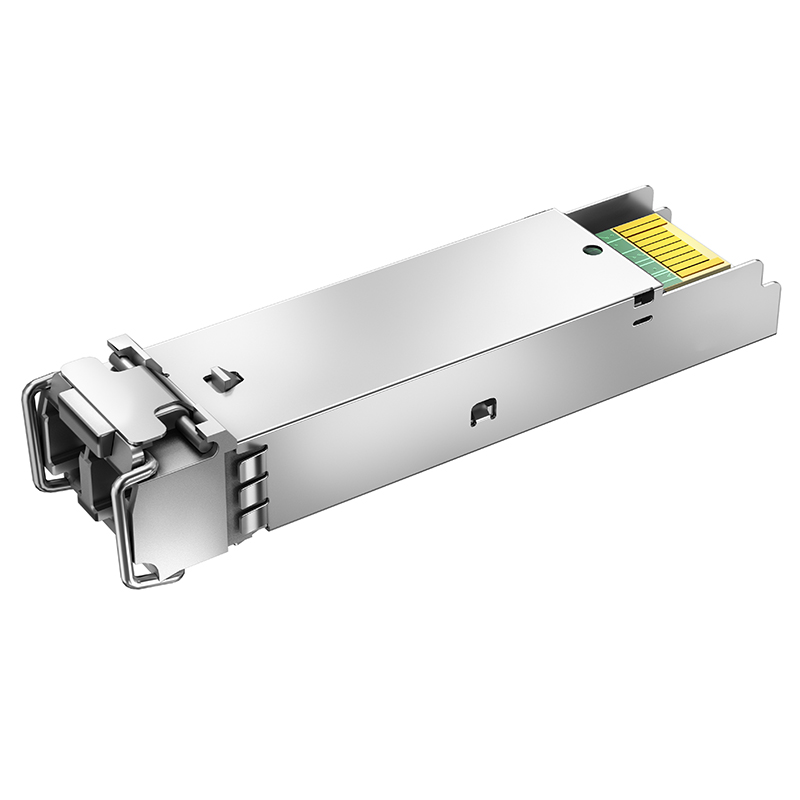

| Form Factor | SFP |
| Max Data Rate | 155Mbps |
| Wavelength | 1310nm |
| Max Cable Distance | 2km |
| Connector | Duplex LC |
| Media | MMF |
| Transmitter Type | FP |
| Receiver Type | PIN |
| TX Power | -15 ~ -8dBm |
| Receiver Sensitivity | < -32dBm |
| DDM/DOM | Supported |
| Protocols | IEEE802.3U, GR-468, MSA Compliant |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
| Part Number | Description |
|---|---|
| LS-MM8501-S5C | SFP 155M, 850nm, 550m, LC, DDM, 0°C-70°C / -40°C-85°C |
| LS-MM8501-02C | SFP 155M, 850nm, 2km, LC, DDM, 0°C-70°C / -40°C-85°C |

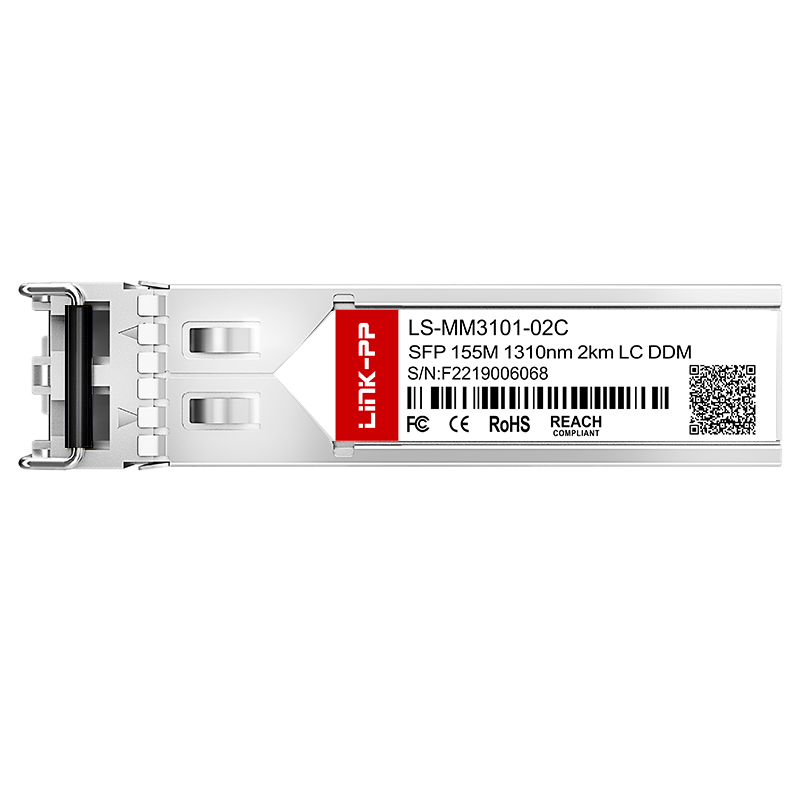

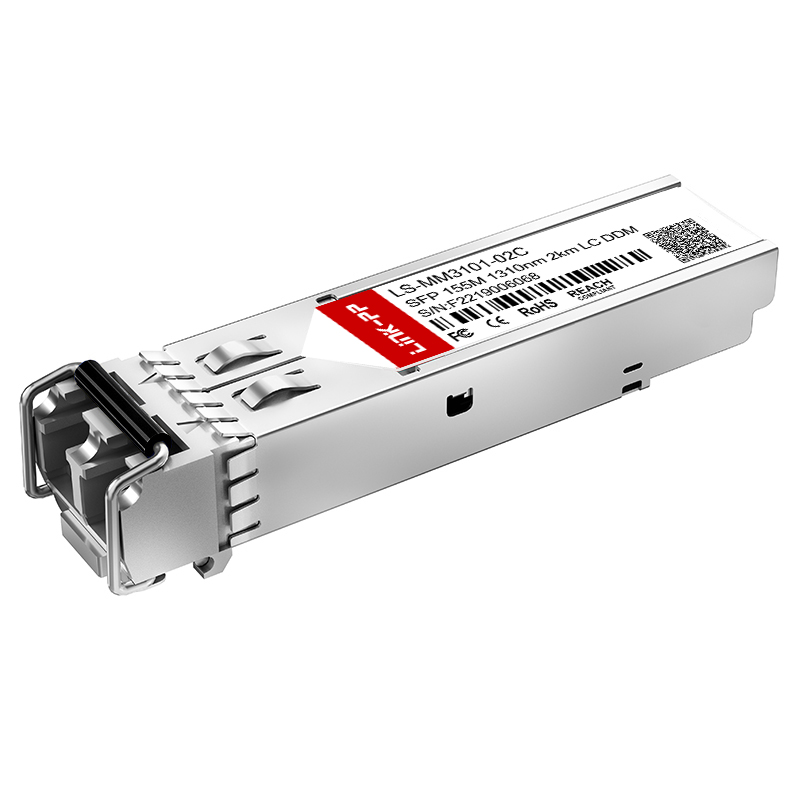

| LS-MM3101-02C | SFP 155M, 1310nm, 2km, LC, DDM, 0°C-70°C / -40°C-85°C |
| LS-SM3101-10C | SFP 155M, 1310nm, 10km, LC, DDM, 0°C-70°C / -40°C-85°C |
| LS-SM3101-40C | SFP 155M, 1310nm, 40km, LC, DDM, 0°C-70°C / -40°C-85°C |
| LS-SM5501-80C | SFP 155M, 1550nm, 80km, LC, DDM, 0°C-70°C / -40°C-85°C |
Specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, ROSH, REACH, CE and UL. Equipped with advanced manufacturing and testing equipment. With abundant production capacity of 3000K per month, ensuring short delivery times. Products include a complete series of optical modules for fixed/wireless access, carrier Ethernet, WDM, and cloud computing interconnect solutions.
