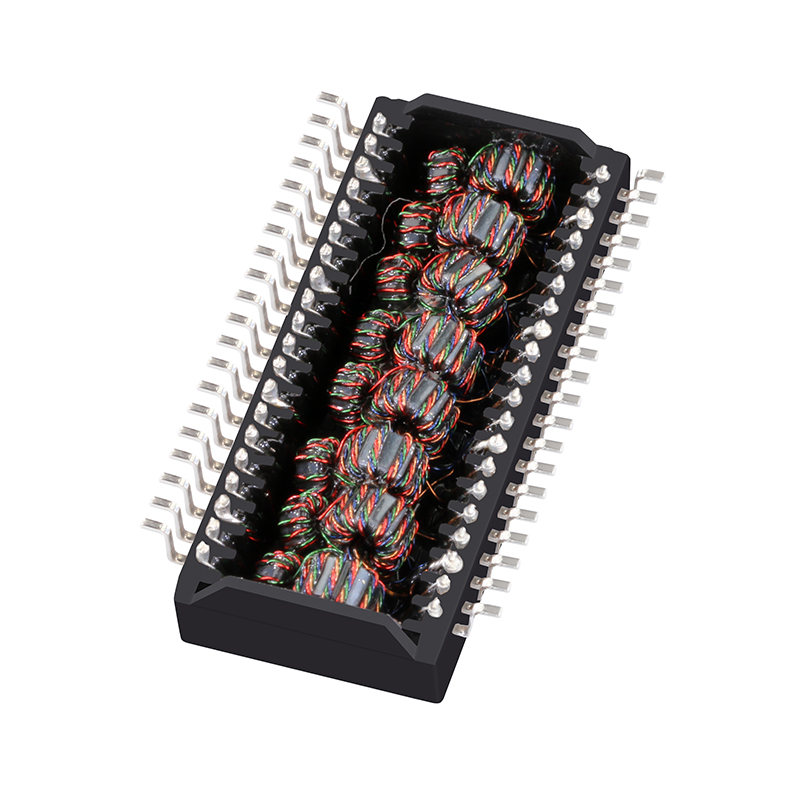

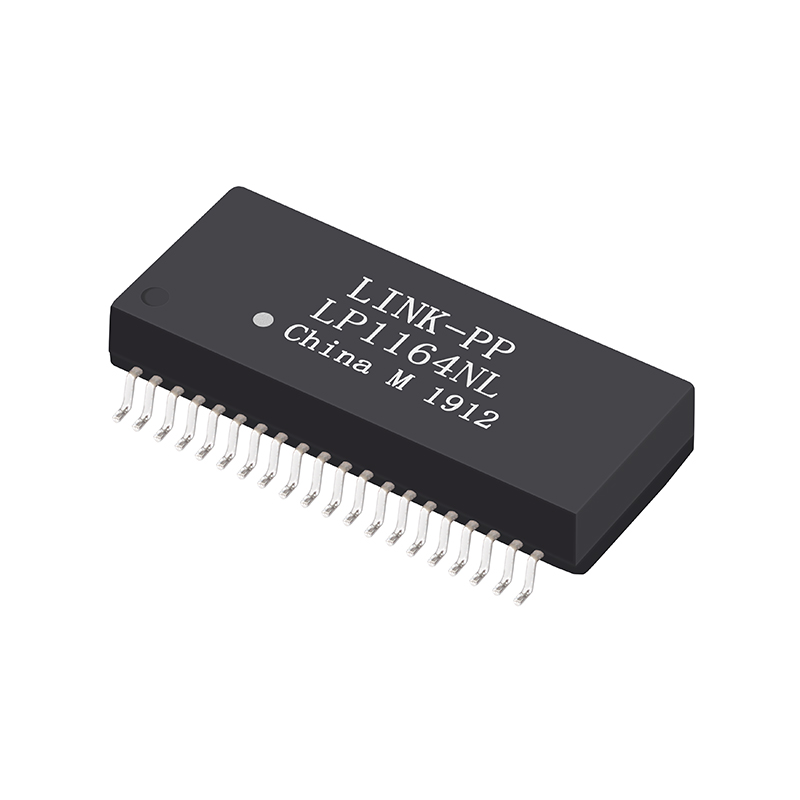

Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
1 / 5
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT

Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT

Send Inquiry

Product Description

Product Description
Product Image 1
Product Image 2
Specification
Item Value
Place of OriginChina
Part NumberLP1164NL
Cross ReferenceH1164NLT
Transformer TypeLan Transformer
Application-LanEthernet (Non PoE)
Number of PortsQuad Port
Speed10/100 Base-T
PackageTape & Reel
Cores per Port16
PIN number40
Mounting TypeSurface Mount
Temperature0℃ TO +70℃
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C,S
Packing & Delivery
Packing Image
The Package Details:
N.W/pcs: 0.005kg | Package: Reel | SPQ: 400pcs | Qty/carton: 1600pcs | Carton size: 36*35.5*23cm | G.W/carton: 7.5kg
Capabilities & Experience
Specialized manufacturer of magnetic telecom and networking components. Certified by ISO9001:2000, ROSH, REACH, CE and UL. Equipped with advanced manufacturing facilities and imported test equipment. With a monthly productive capacity of 3000K, we ensure short delivery times and provide complete solutions for magnetic components with strong technical support.
Facility 1
Facility 2
Facility 3
Facility 4
Facility 5
Facility 6
Facility 7
Main Product Range:
  • 10/100/1000M LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Our products are widely used in networking and communication equipment such as HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems.
Frequently Asked Questions
What is the main application for the LP1164NL transformer?
It is primarily designed for 10/100 Base-T Ethernet applications (Non-PoE), suitable for networking equipment like switches and routers.
What are the temperature limitations for this component?
The standard operating temperature range is 0℃ to +70℃, making it ideal for most commercial networking environments.
Is this product compliant with international standards?
Yes, our manufacturing processes and products are certified by ISO9001, RoHS, REACH, CE, and UL.
What is the standard packaging for shipping?
The product is supplied in Tape & Reel format with 400 pieces per reel and 1600 pieces per export carton.
Do you offer technical support for integration?
Yes, we provide professional complete solutions for magnetic components along with strong technical engineering support.
What is the mounting style for the LP1164NL?
This is a Surface Mount (SMD) component with a 40-pin configuration.
