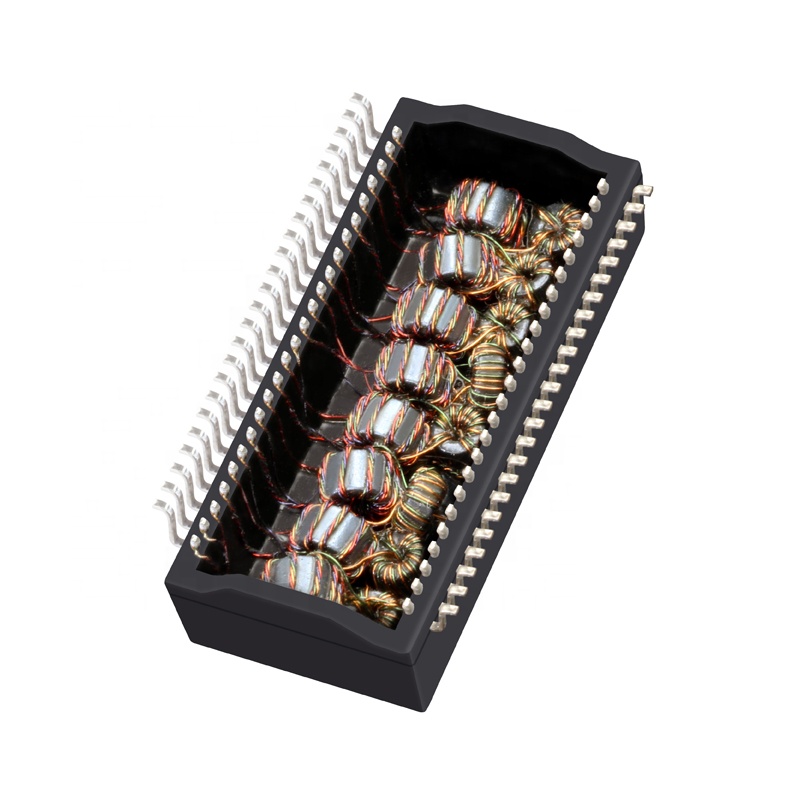

Huge Stocks 100/1000 Base-T 48 Pin Dual Port Magnetics Modules Telecom Transformer S558-5999-Q2-F

1

Product Description

2

Specifications

Place of Origin	China, Guangdong
Model Number	LP5014NL
Usage	Electronic
Phase	Single
Coil Structure	TOROIDAL
Coil Number	AUTOTRANSFORMER
Part Number	S558-5999-Q2-F
Part Status	Active
Application-Lan	Ethernet(NoN PoE)
Number of Ports	Dual Port
Speed	10/100/1000 Base-TX
Package	Tape & Reel
Cores per Port	16
PIN number	48 PIN
Mounting Type	Surface Mount
Temperature	0℃ TO +70℃

3

Packing & Delivery

4

Technical Overview & Capabilities

We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. We own advanced manufacturing facilities and test equipment. With an abundant productive capacity of 3000K per month, we provide professional complete solutions for magnetic components and strong technical support.

Main Products:

10/100/1000M LAN pulse transformer and filter
RJ45 connector with 10/100/1000M magnetic
T1/E1, T3/DS3/E3/STS-1 interface line transformer
ISDN, HDSL, ADSL and VDSL interface line transformer and splitter

Applications:
Our products are widely used in networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem.

?

Frequently Asked Questions

What is the primary application for this pulse transformer?

It is designed for Ethernet (Non-PoE) applications, specifically supporting 10/100/1000 Base-TX networking equipment.

What is the operating temperature range?

The device is rated for standard operating temperatures ranging from 0℃ to +70℃.

How is the product packaged for shipping?

The product is supplied in Tape & Reel packaging, with 350 pieces per reel and 1400 pieces per standard carton.

What certifications do these components hold?

Our manufacturing processes and components are certificated by ISO9001:2000, ROSH, REACH, CE, and UL.

What mounting type does the LP5014NL use?

This model is designed for Surface Mount (SMD) applications with a 48-pin configuration.

Can you provide technical support for custom requirements?

Yes, our engineering staff is dedicated to identifying and developing optimal solutions for unique customer requirements and providing strong technical support.
