LumoWave
1 / 5

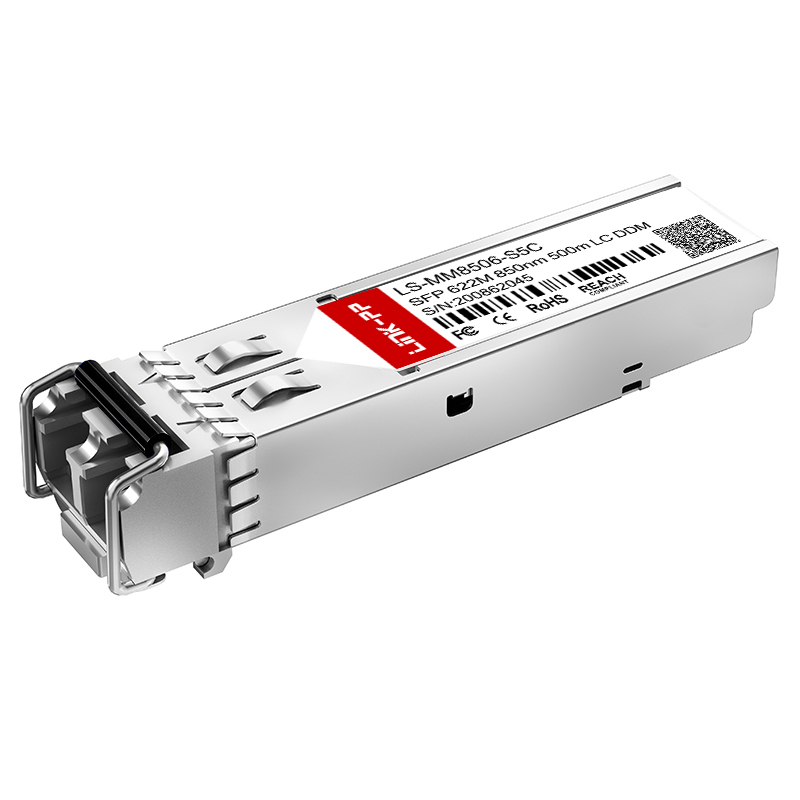

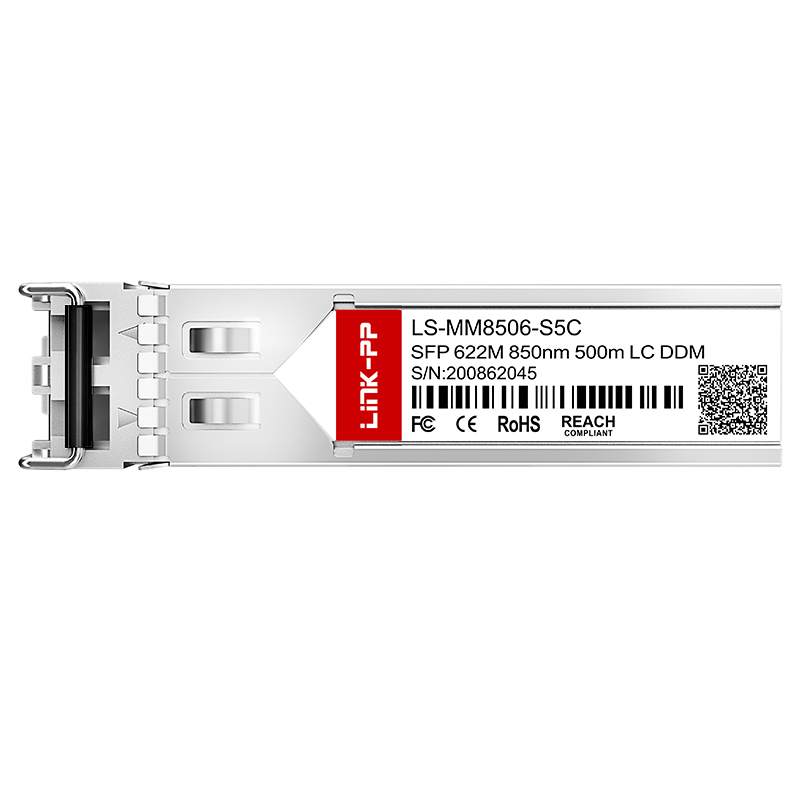

| Parameter | Details |
| Form Factor | SFP |
| Max Data Rate | 622Mbps |
| Wavelength | 850nm |
| Max Cable Distance | 500m |
| Connector | Duplex LC |
| Media | MMF |
| Transmitter Type | VCSEL |
| Receiver Type | PIN |
| EMC (Electro Magnetic Compatibility) | Supported |
| DDM/DOM | Supported |
| Protocols | MSA Compliant |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
| Sample | Available |
| Data Rate | Wavelength | Distance | Media | DDM |
| 622Mbps | 850nm | 500m | Multi-mode | Yes |
| 622Mbps | 1310nm | 500m | Single Mode | Yes |
| 622Mbps | 1310nm | 2km | Single Mode | Yes |
| 622Mbps | 1310nm | 2km | Multi-mode | Yes |
| 622Mbps | 1310nm | 20km | Single Mode | Yes |
| 622Mbps | 1310nm | 40km | Single Mode | Yes |
| 622Mbps | 1550nm | 80km | Single Mode | Yes |
| 622Mbps | 1550nm | 100km | Single Mode | Yes |
| 622Mbps | 1550nm | 120km | Single Mode | Yes |
Optical Transport Networks
End-to-end DWDM devices with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
Cloud and Enterprise
High-speed optical interconnect solutions for data centers with rates ranging from 10G to 800G, ensuring high-quality mass data transmission.
Wireless
Reliable solutions for 4G/5G systems, including Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul scenarios.
FTTx
Total optical fiber access solutions covering all-optical or optical copper combined access products for global communication constructs.
Subsystems
Optical cable O&M solutions integrating optical line protection systems (OLP) and monitoring systems (OLM) for communication stability.
