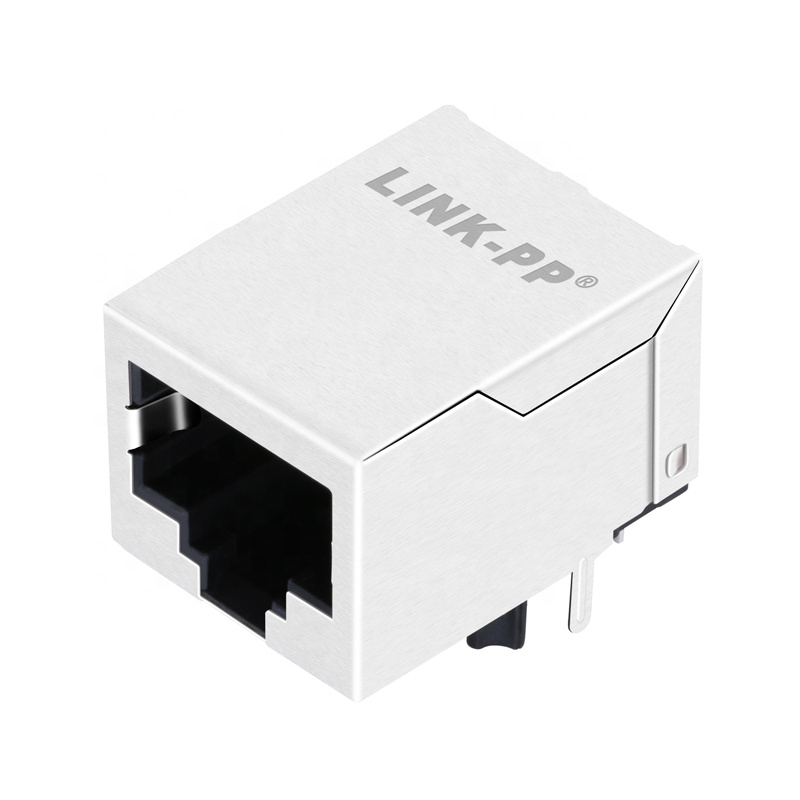

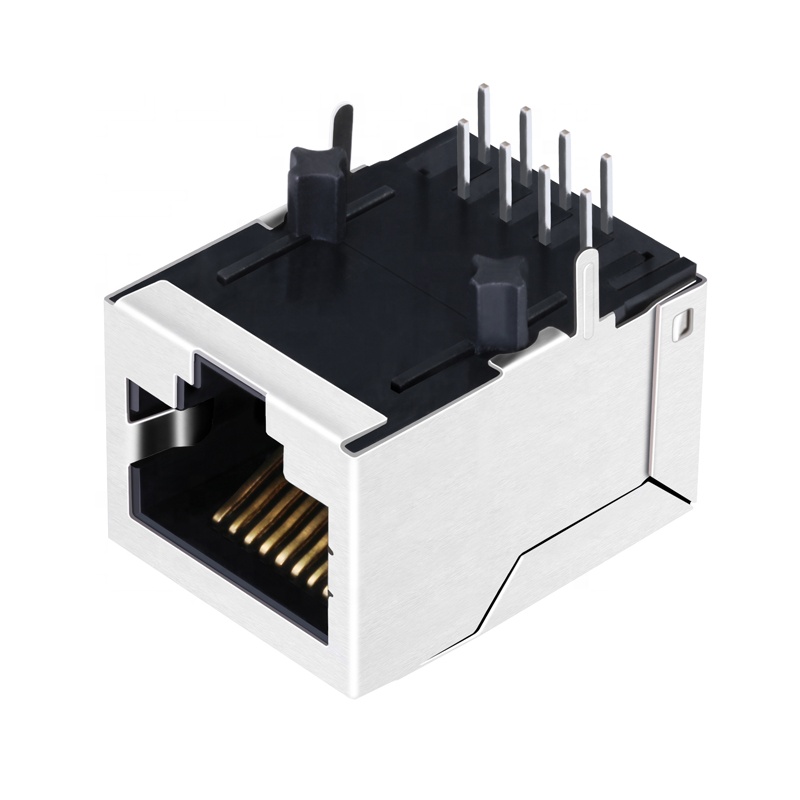

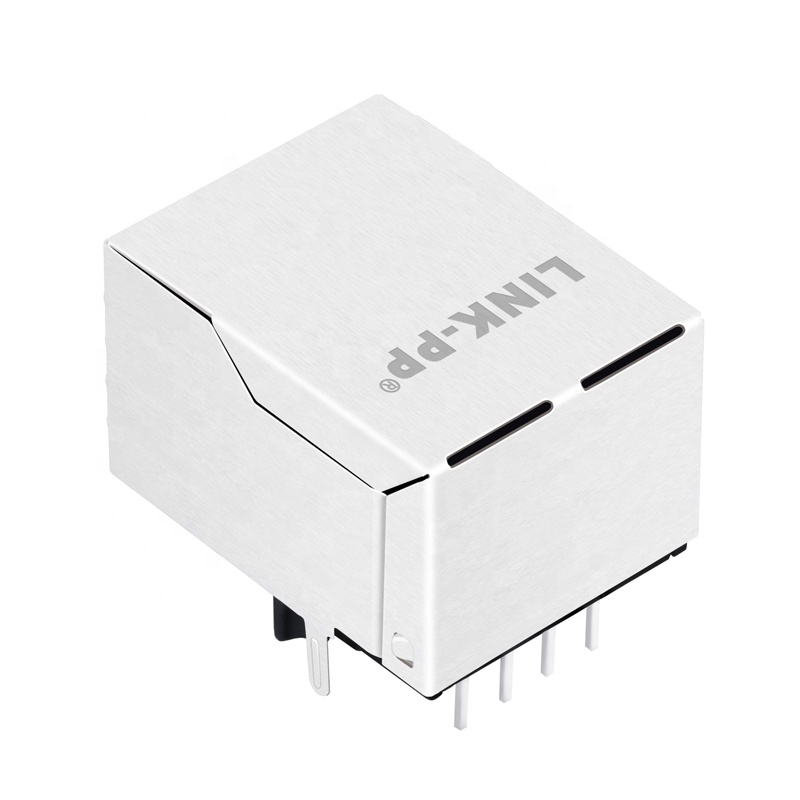

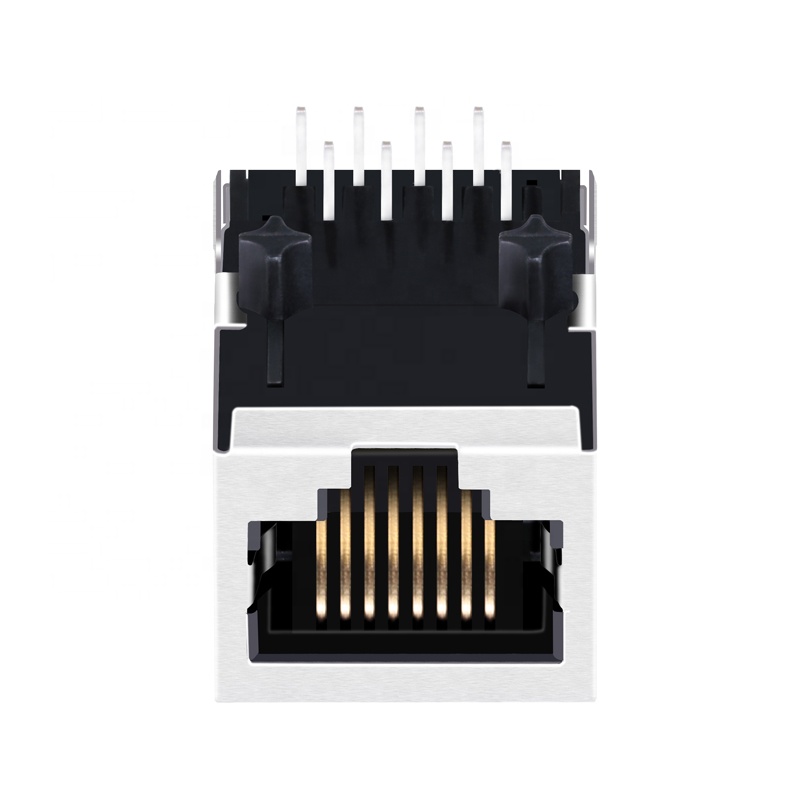

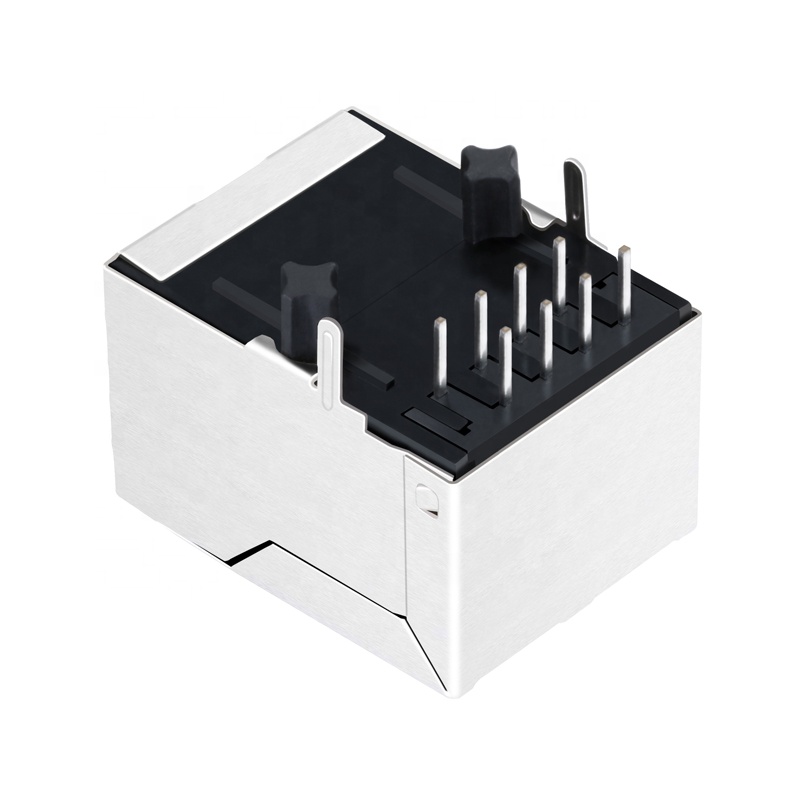

1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
1 / 5
1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector

1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector

Send Inquiry

Product Description

1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
RJ45 Connector Overview
📦 Products Description
ItemRJ45 Female Connector
Part Number1470648-1
Part StatusActive
Connector TypeJack
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Application-LanEthernet(NoN PoE)
Number of Ports1x1 Port
Speed10/100 Base-T
LatchDown
Cores per Port4
Orientation90° Angle (Right)
PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithout
LED OptionWithout
PCBFR4
PCB Retaining PostT POST
Temperature0℃ TO 70℃
Bst CircuitYes
AutomDXYES
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C
🔍 Product Details
🏷️ More Product Categories
🏢 Professional Capabilities
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities. We are a global supplier to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. By building multi-warehouse systems and continuously increasing inventory, we are committed to being a world leader in Ethernet RJ45 connectors and LAN transformer solutions.
🏭 Production & Quality Control
❓ Frequently Asked Questions
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer free samples for quality testing purposes, with the shipping costs covered by the customer.
What is your typical delivery time?
Stock items are ready to ship immediately. For mass production, the lead time is typically 15-30 days.
What kind of after-sales service do you provide?
We provide a one-year guarantee period and offer 24-hour online technical support.
Do you accept OEM/ODM orders?
Yes, we welcome OEM and ODM inquiries. Please contact us for a detailed discussion on your specific requirements.
What are your core advantages?
We have over 19 years of production experience and have been a trusted partner to major industry leaders for many years.
