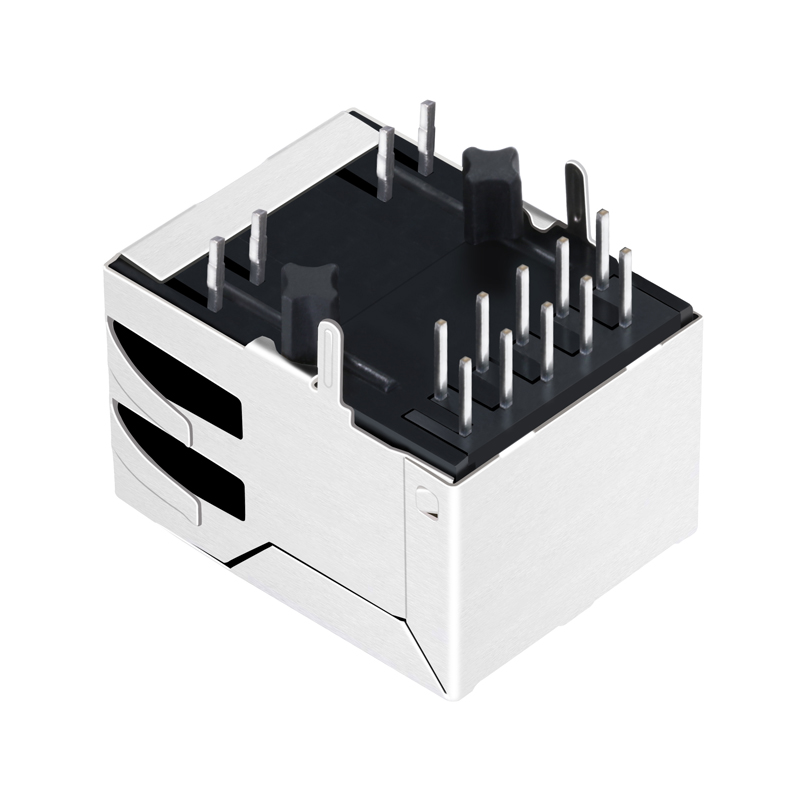

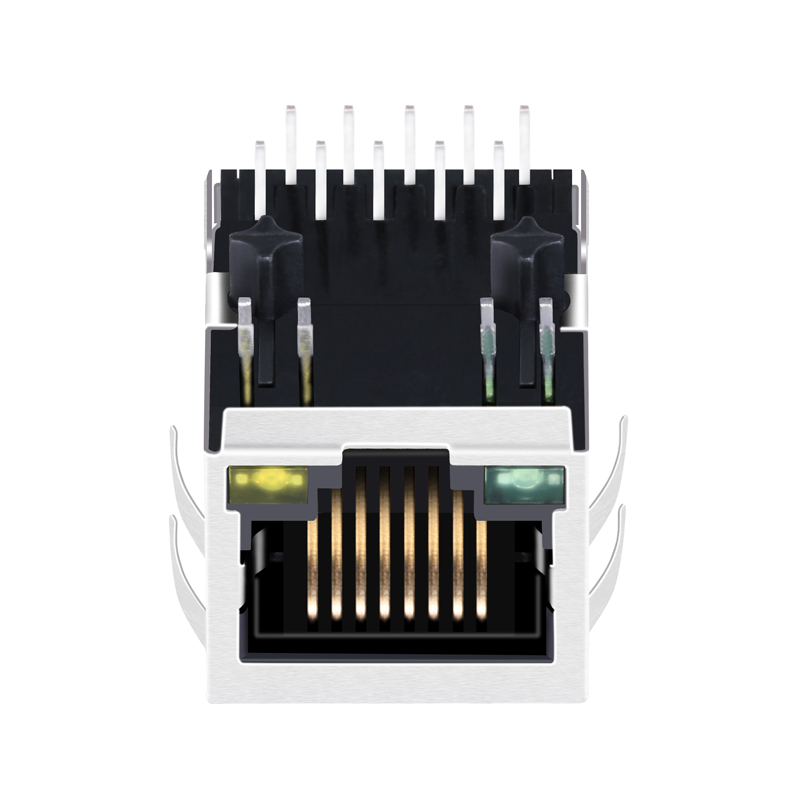

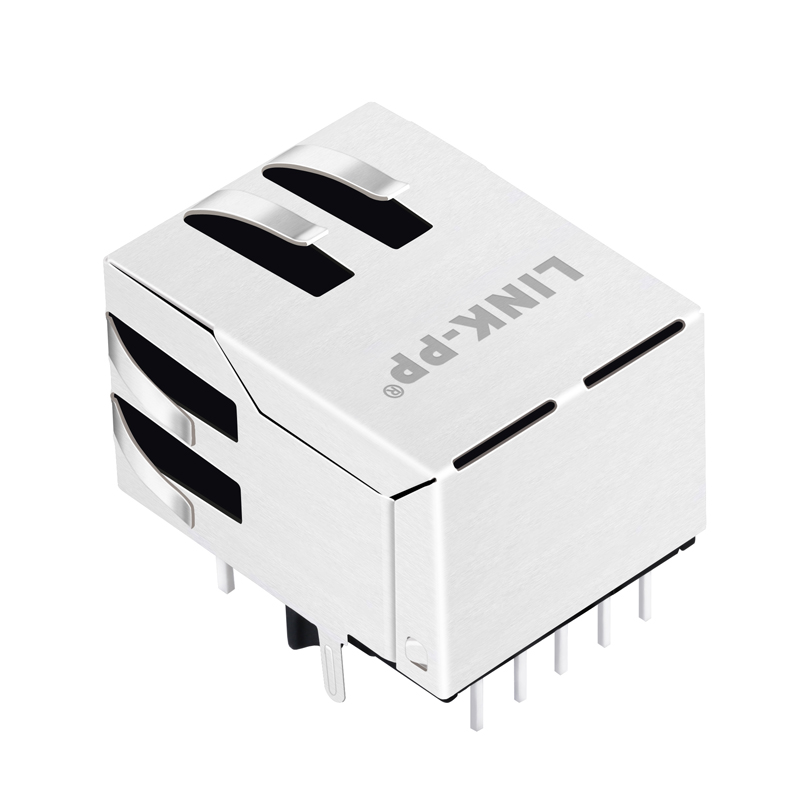

RJ 45 Connectors with POE RJ45 Ethernet Jack 1-6605833-1 SFE-PRT-08534
RJ 45 Connectors with POE RJ45 Ethernet Jack 1-6605833-1 SFE-PRT-08534
RJ 45 Connectors with POE RJ45 Ethernet Jack 1-6605833-1 SFE-PRT-08534
RJ 45 Connectors with POE RJ45 Ethernet Jack 1-6605833-1 SFE-PRT-08534
RJ 45 Connectors with POE RJ45 Ethernet Jack 1-6605833-1 SFE-PRT-08534
1 / 5
RJ 45 Connectors with POE RJ45 Ethernet Jack 1-6605833-1 SFE-PRT-08534
RJ 45 Connectors with POE RJ45 Ethernet Jack 1-6605833-1 SFE-PRT-08534
RJ 45 Connectors with POE RJ45 Ethernet Jack 1-6605833-1 SFE-PRT-08534
RJ 45 Connectors with POE RJ45 Ethernet Jack 1-6605833-1 SFE-PRT-08534
RJ 45 Connectors with POE RJ45 Ethernet Jack 1-6605833-1 SFE-PRT-08534

RJ 45 Connectors with POE RJ45 Ethernet Jack 1-6605833-1 SFE-PRT-08534

Send Inquiry

Product Description

Product Banner

RJ 45 Connectors with POE RJ45 Ethernet Jack 1-6605833-1 SFE-PRT-08534 ARJ11E-MCSS

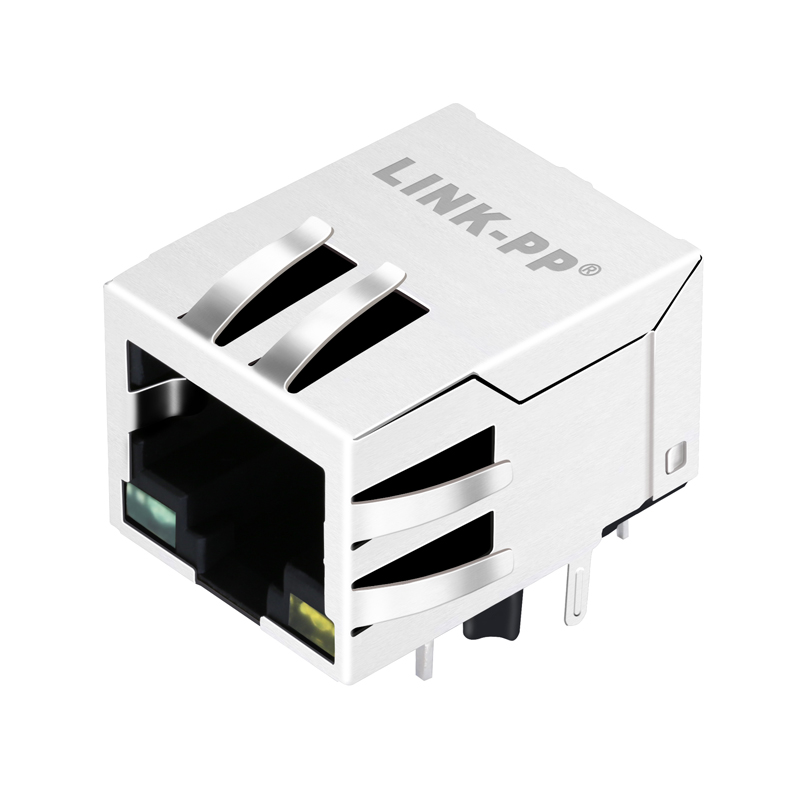

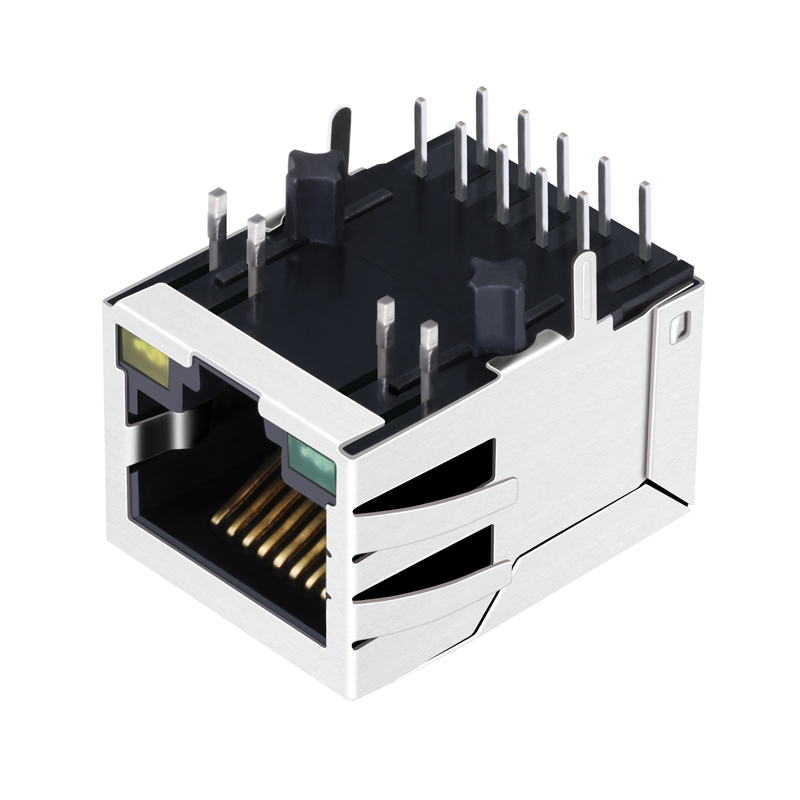

RJ 45 Connector View 1 RJ 45 Connector View 2
Technical Banner
Part NumberARJ11E-MCSS
AutomDXYES
Bst CircuitYES
Configuration RXT,C
Configuration TXT,C
Contact Mating Area PlatingGOLD 6u"/15u"/30u"/50u"
Cores Per Port4
DiodesNO DIDES41
LED OptionGREEN/RED
LatchUP
Number of Ports1X1
PCBFR4
PCB Mount AngleSIDE ENTRY
PCB Retaining PostT POST
Pin TypeTHT SOLDER
RoHS CompliantYES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
SearchYES
Shield EMI TabsWITH OR WITHOUT
Speed1000 BASE-T
Temperature0 TO 70°C / -40 TO 85°C
Turns Ratio RX1CT:1
Turns Ratio TX1CT:1
Schematic Diagram
Key Features & Advantages
◈ Leading Supplier of Integrated RJ45 Connectors and Discrete Magnetic Transformers.
◈ 100% Quality Guarantee: Manufactured under strict controls and 100% tested (not just batch tested).
◈ Broad compatibility with industry-standard boards and networking equipment.
◈ Competitive pricing and fast delivery times (2-3 weeks).
Detailed Dimensions
Internal Structure Application View
Quality & Compliance
✔ ISO 9001:2008 Certified
✔ UL Certification
✔ REACH Certification
✔ RoHS Compliance
✔ Active Environmental Policy
Divider Banner
Product Layout Packaging Info
Frequently Asked Questions (FAQ)
1. What is the maximum speed supported by this RJ45 connector?
This connector is designed for 1000 BASE-T speeds, making it suitable for Gigabit Ethernet applications.
2. Can this connector operate in harsh industrial environments?
Yes, it is available in two temperature ranges: a standard 0 to 70°C and an industrial-grade -40 to 85°C option.
3. Does it support Power over Ethernet (POE)?
Yes, this series is integrated with POE capabilities to provide both data and power through the Ethernet jack.
4. What are the plating options for the contact area?
We offer multiple Gold plating thickness options, including 6u", 15u", 30u", and 50u", to ensure optimal connectivity and durability.
5. Is the product compliant with environmental regulations?
Absolutely. The product is RoHS compliant and meets REACH standards, adhering to a strict active environmental policy.
6. What is the mounting configuration for the PCB?
This is a side-entry (right angle) connector using Through-Hole Technology (THT) solder for secure PCB mounting.
