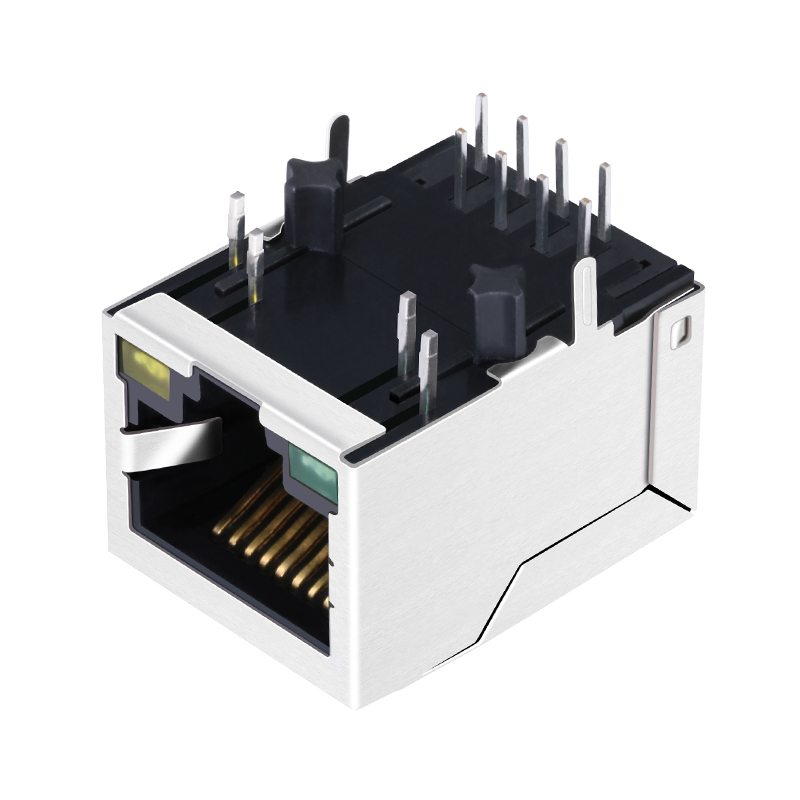

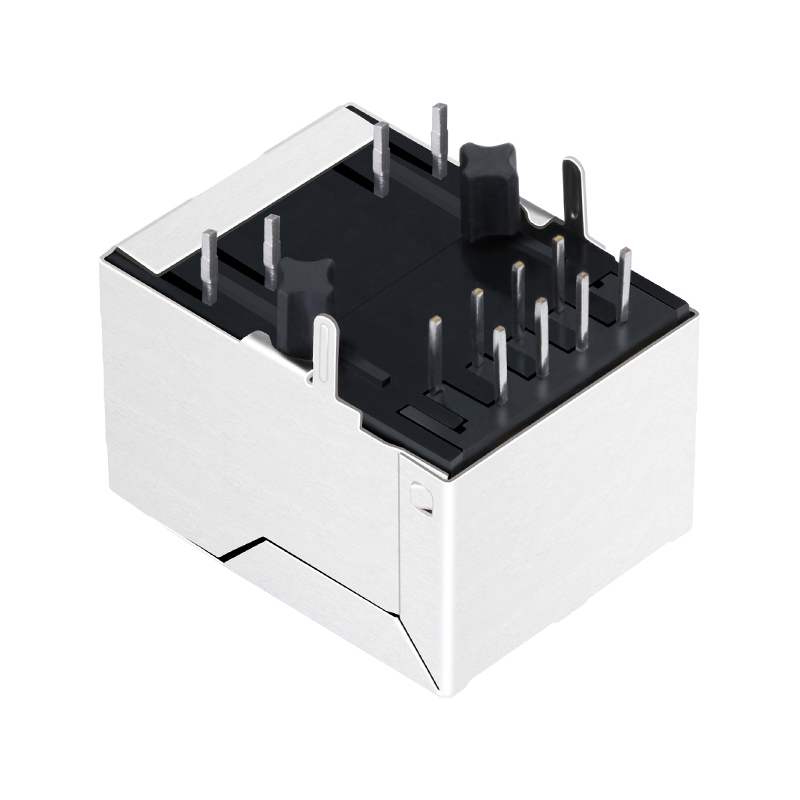

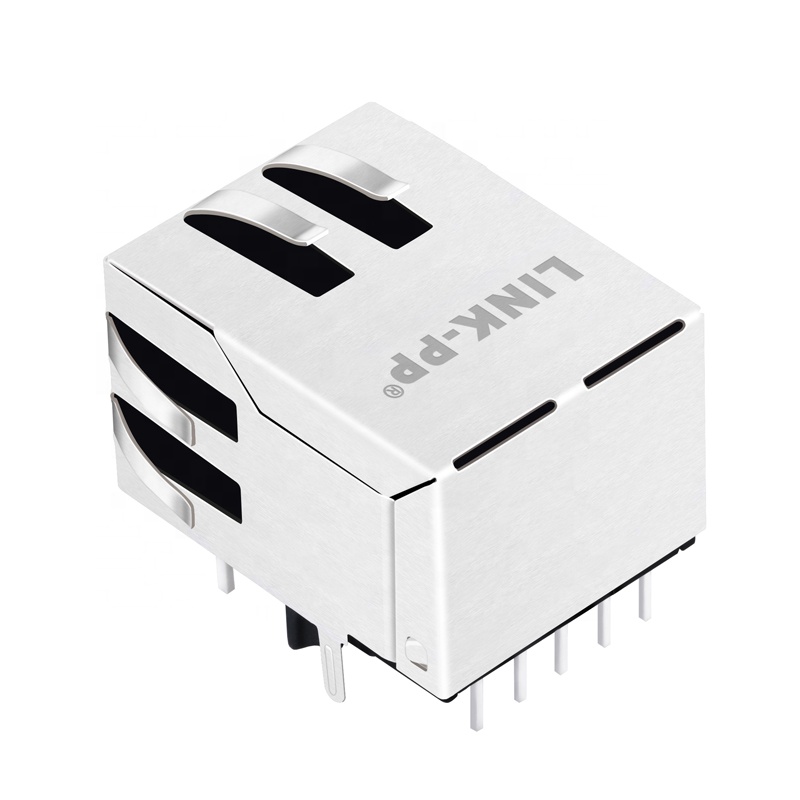

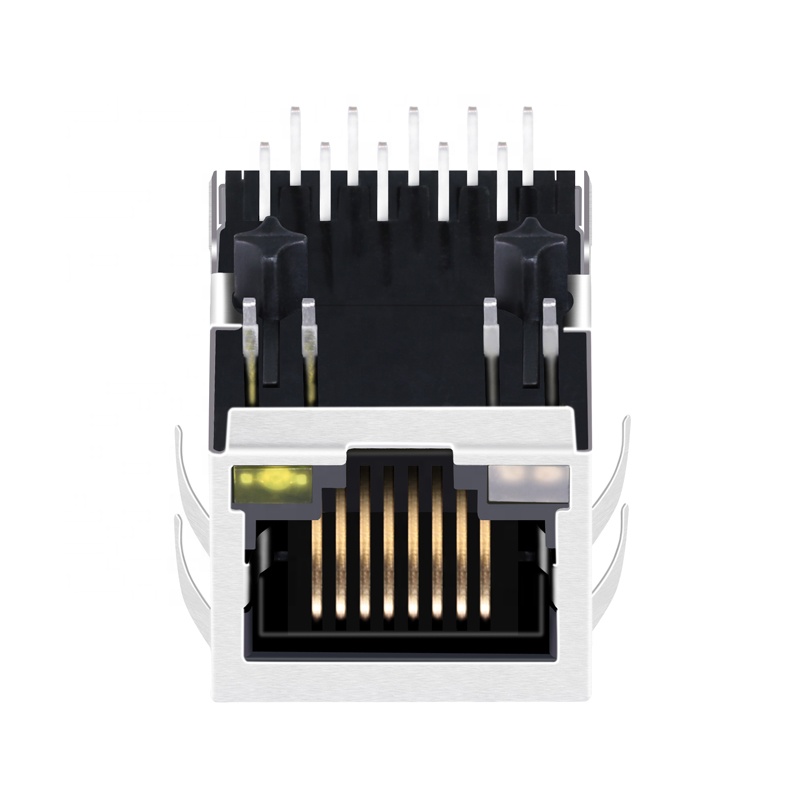

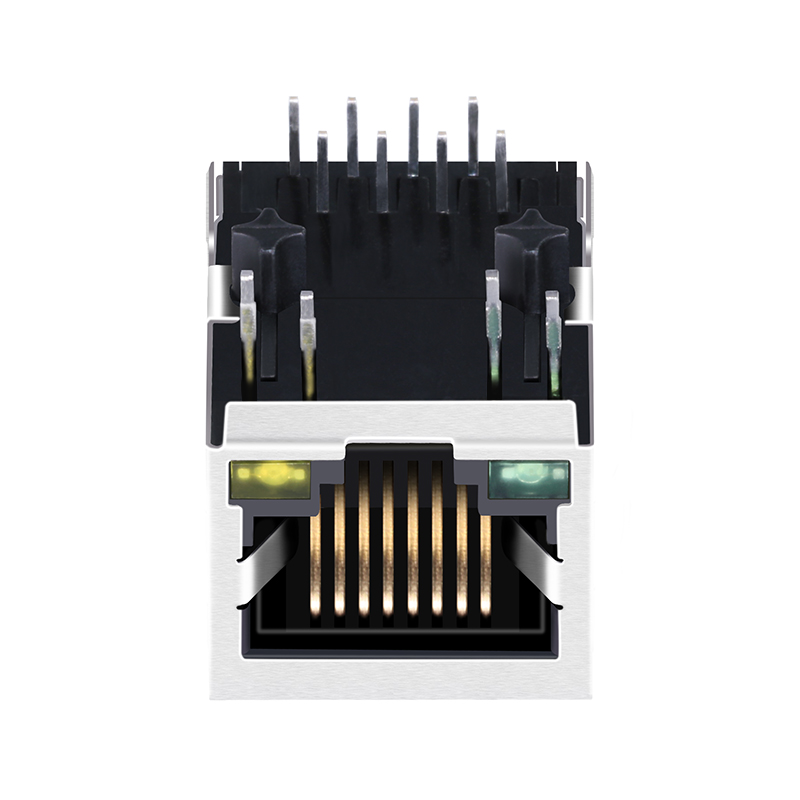

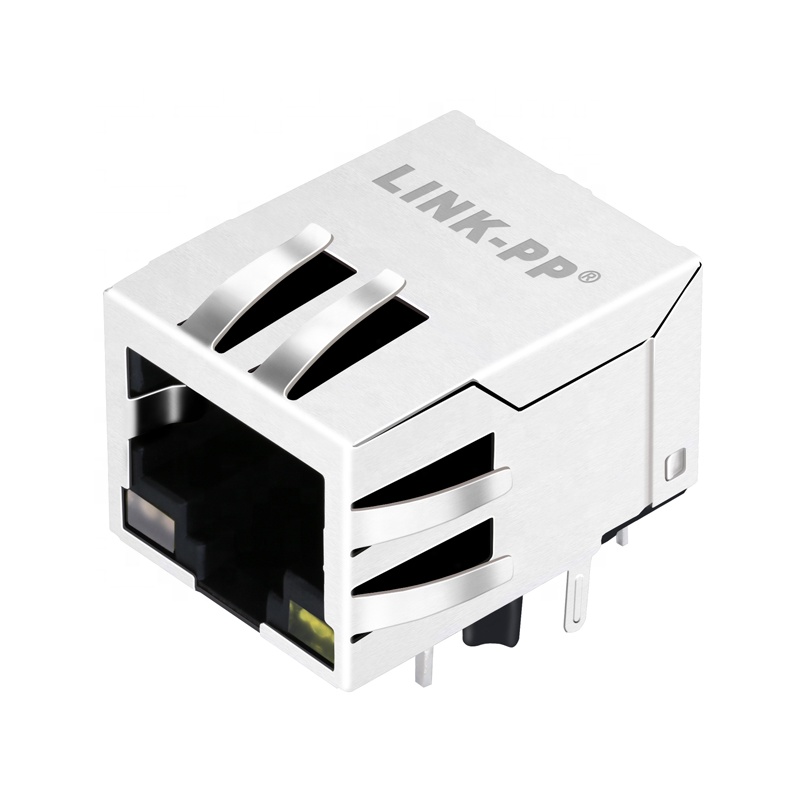

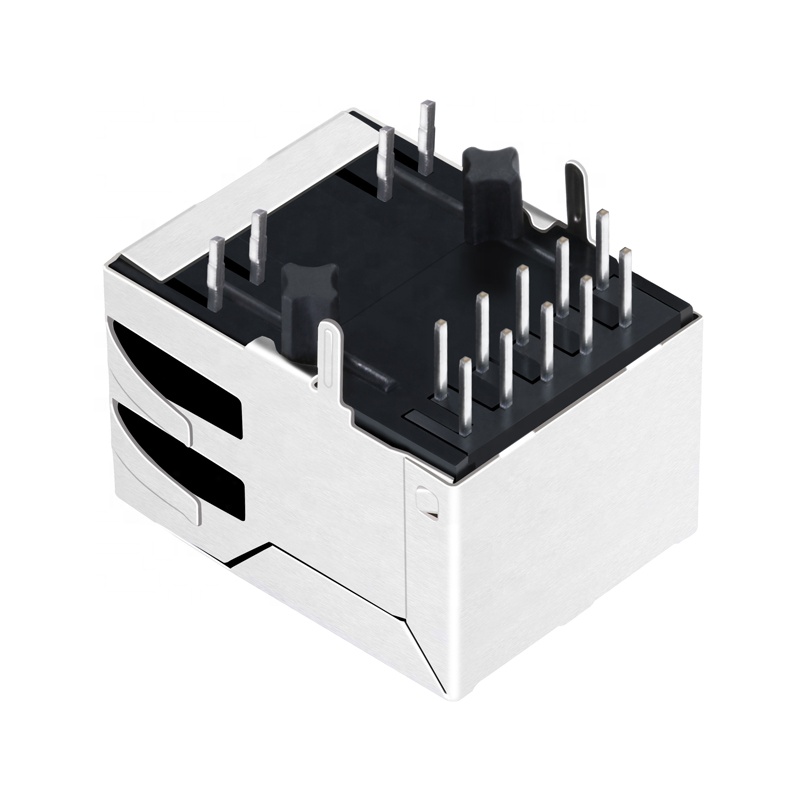

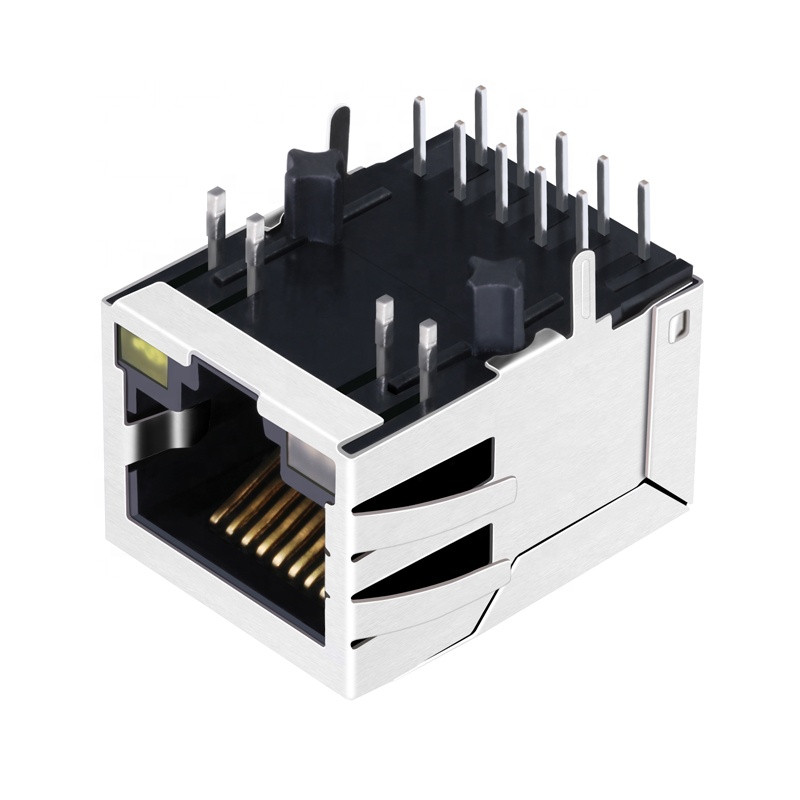

| Item | RJ45 Female Connector |
| Replaceable Part Number | HRJM15-S1188-X-D-F1 |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port |
| Speed | 10/100 Base-T |
| Latch | Down |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | With |
| LED Option | Green/Yellow |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0℃ TO 70℃ |
| Bst Circuit | Yes |
| AutomDX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
We are a specialized manufacturer of magnetic telecom and networking components. Established in 1997, we own advanced manufacturing facilities and test equipments imported from abroad. At present, we have around 2000 staff members. With abundant productive capacity, we are able to deliver goods within a short timeframe.
Our main products include 10/100/1000M LAN pulse transformers and filters, RJ45 connectors with magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformers, and more. Our products are widely used in networking and communication equipment such as HUBs, PC cards, Switches, Routers, IP Phones, and xDSL modems. We have exported to more than 30 countries and regions, including Germany, France, England, USA, Singapore, Korea, Canada, and Japan.
