Shielded With EMI Fingers RJ45 Modular Connector RJ000002

Product Description

RJ45 Modular Connector Banner
Shielded with EMI Fingers RJ45 Modular Connector RJ000002
Products Description
ItemRJ45 Female Connector
Replaceable Part NumberRJ000002
Part StatusActive
Connector TypeJack
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Application-LanEthernet(NoN PoE)
Number of Ports1x1 Port
Speed10/100/1000 Base-T
LatchDown/Up
Cores per Port4
Orientation90° Angle (Right)
PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithout/With
LED OptionGreen/Yellow
PCBFR4
PCB Retaining PostT POST
Temperature0℃ TO 70℃ / -40℃ TO 85℃
Bst CircuitYes
AutomDXYES
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C

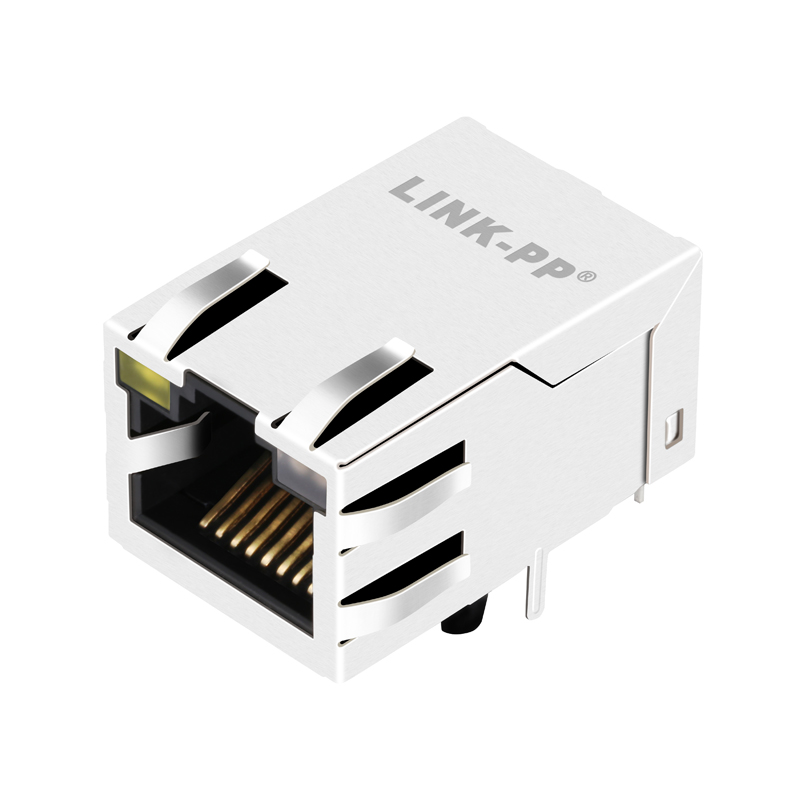

Connector Detail
RJ45 Image 1
RJ45 Image 2
RJ45 Image 3
RJ45 Image 4

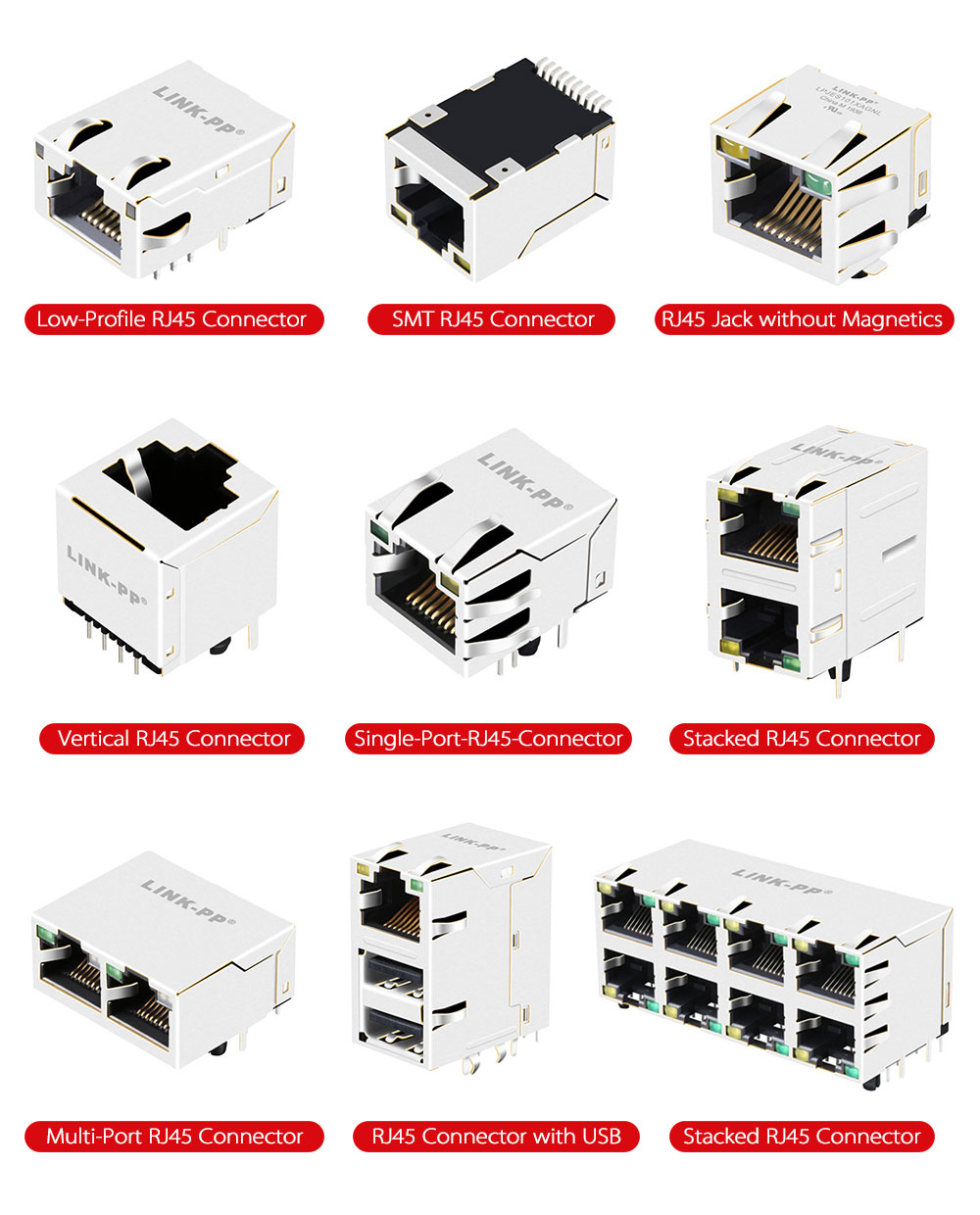

Product Range Overview

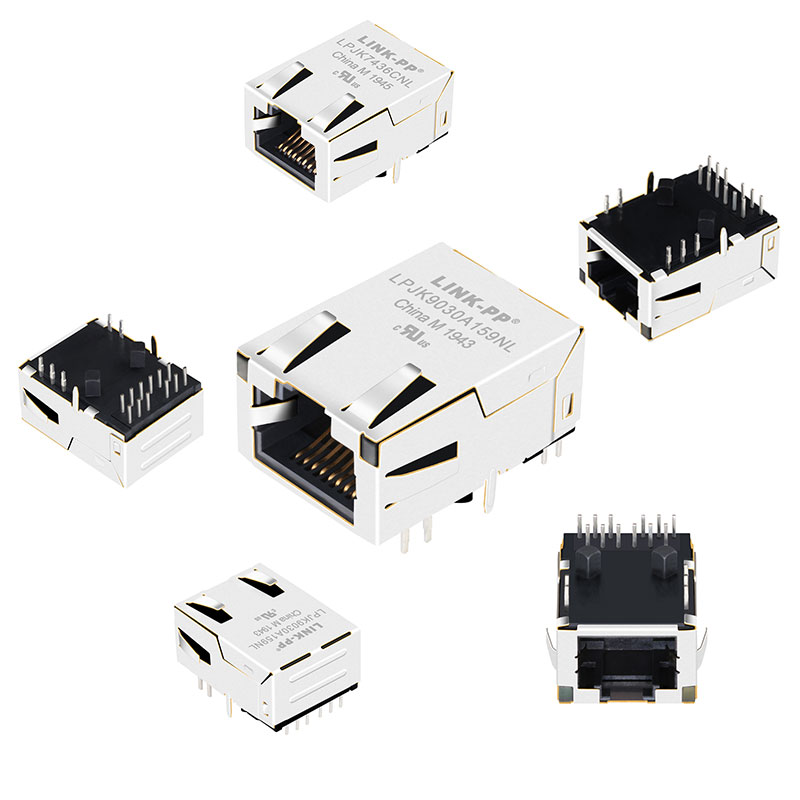

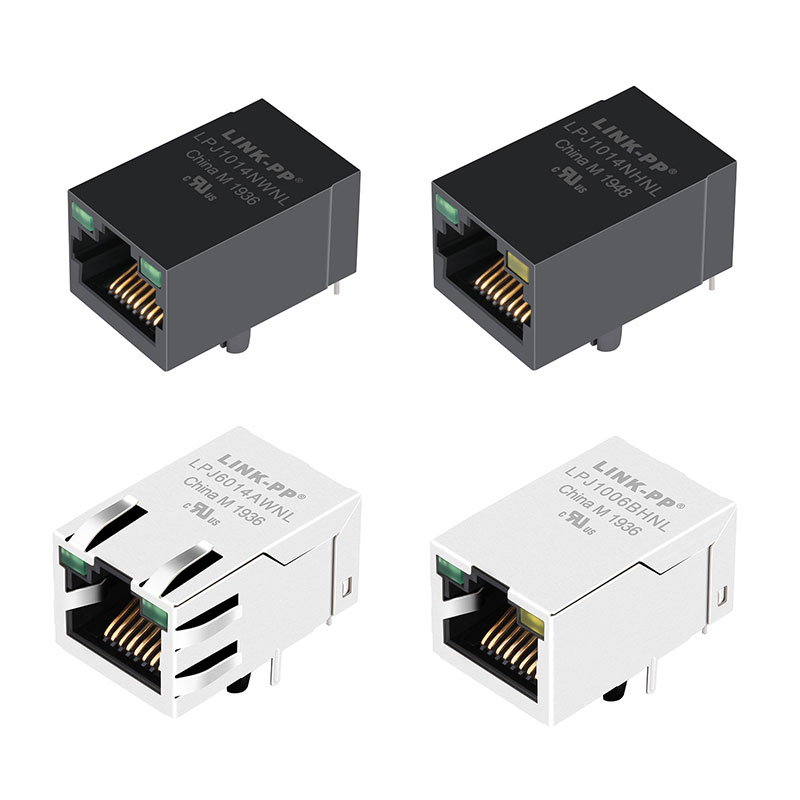

Product Series
Technical Drawing
Specification Chart
Certifications
Production Line
Testing Equipment
Storage
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries.

By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming a leading Ethernet RJ45 connector and LAN transformer provider worldwide.
Factory View
Office View
Frequently Asked Questions
Q1: Are you a manufacturer or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Q2: Can I request samples before placing a bulk order?
Yes, we provide free samples for quality testing purposes. However, the shipping costs are to be covered by the customer.
Q3: What is the typical lead time for orders?
Items in stock are ready for immediate shipment. For mass production, the typical delivery time ranges from 15 to 30 days.
Q4: What kind of after-sales support do you provide?
We offer a one-year warranty period and provide 24-hour online technical support to assist with any product-related queries.
Q5: Do you accept OEM or ODM orders?
Yes, we have extensive experience in OEM and ODM services. Please contact us to discuss your specific technical requirements.
Q6: What are your key competitive advantages?
With over 19 years of production experience and long-term partnerships with major industry leaders, we ensure high reliability and professional service.
