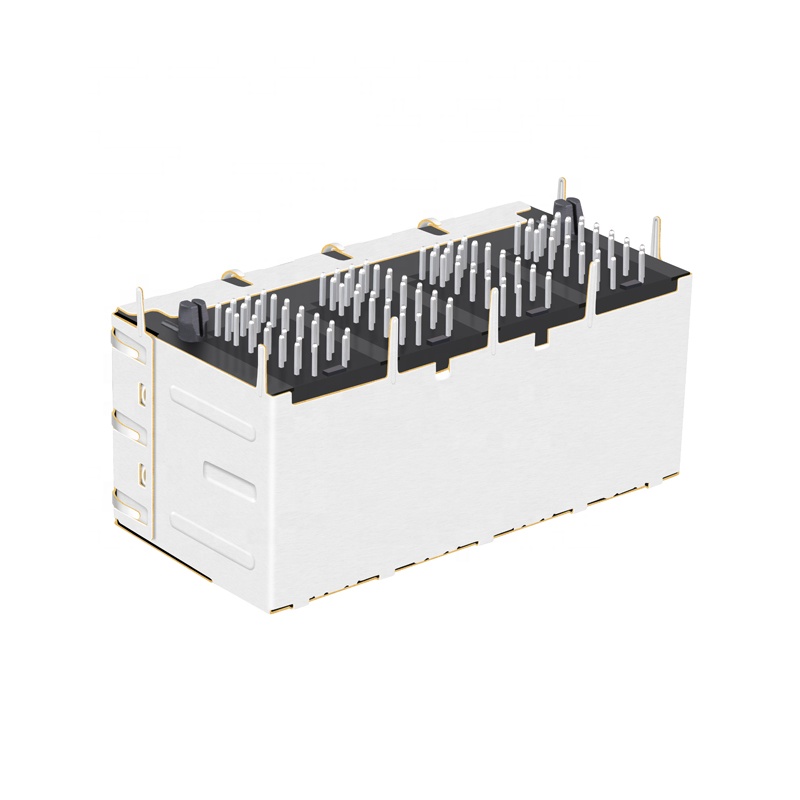

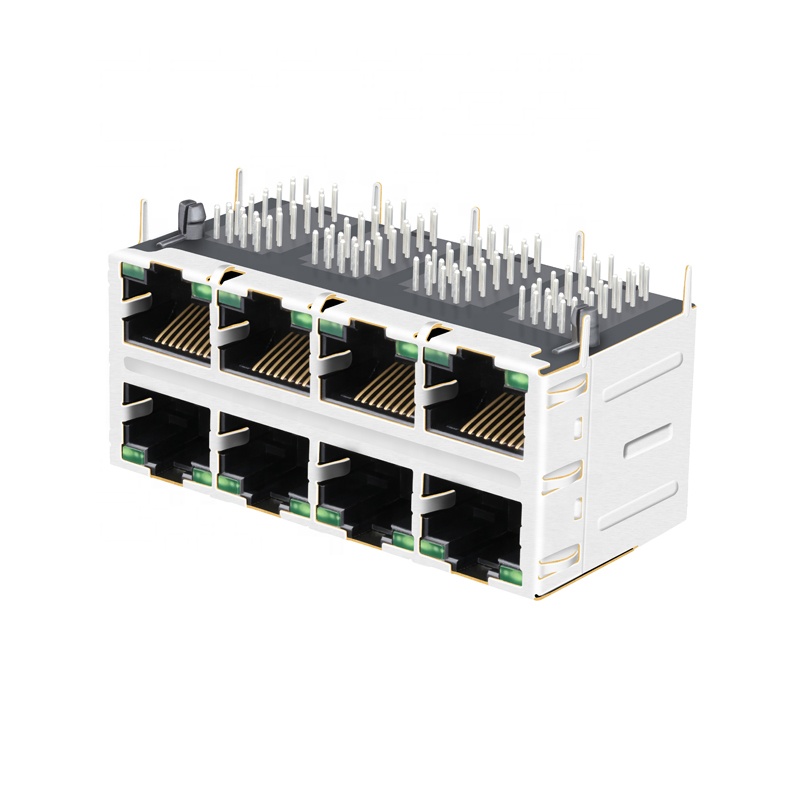

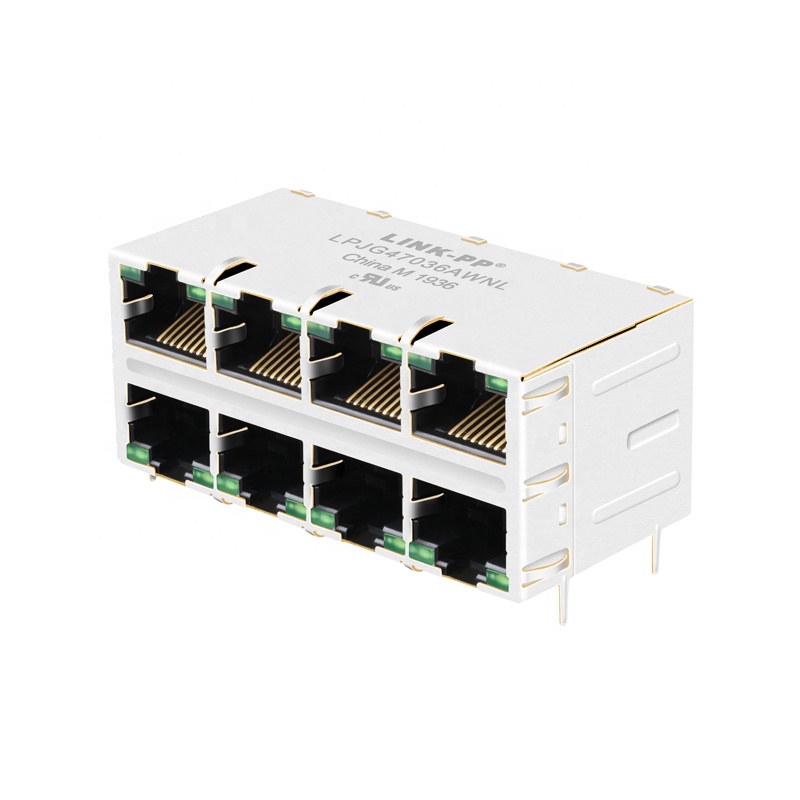

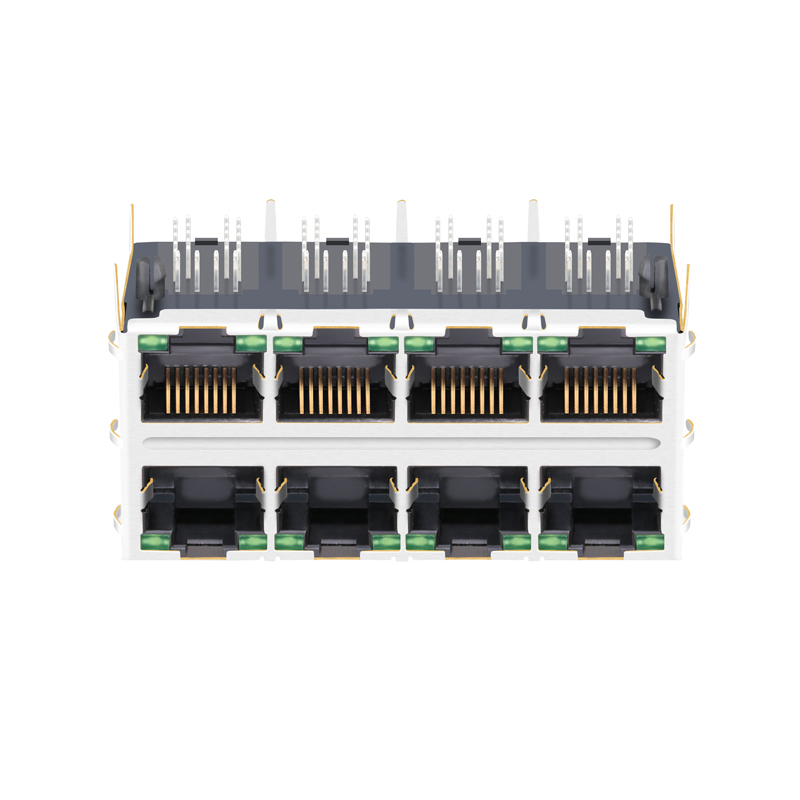

2x4 Port For PoE Cat5e 2.5G Jack RJ45 Female Connector

1 / 5

2x4 Port For PoE Cat5e 2.5G Jack RJ45 Female Connector

Send Inquiry

Product Description

2x4 Port For PoE Cat5e 2.5G Jack RJ45 Female Connector

Part Number	LPJG47036AWNL
Application-LAN	ETHERNET(POE)
AutoMDIX	YES
Bst Circuit	YES
Configuration RX/TX	T,C / T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"/50u"
Cores Per Port	8
Diodes	NO DIODES
LED Option	GREEN/GREEN
Latch	UP/DOWN
Number of Ports	2X4
PCB Mount Angle	SIDE ENTRY
Pin Type	THT SOLDER
RoHS Compliant	YES
Shielding	Shielded with EMI Tabs
Speed	2.5G BASE-T
Temperature	-20°C to +70°C
Turns Ratio	1CT:1

Preferred Supplier Status: High-performance components utilized by leading global technology innovators in networking and industrial automation sectors.

Professional Certification

ISO 9001:2008 Quality Management System
UL Certification for Safety and Reliability
Full Reach Certification Compliance
RoHS Compliance for Environmental Protection
Active Environmental Sustainability Policy

100% Guaranteed Quality

Manufactured Under Strict Quality Controls
100% Tested (Not Just Batch Tested)
Long-term OEM Expertise for Industry Leaders
Quality Guarantee: 6 Years Warranty

Competitive Price And Service

Highly Competitive Pricing Model
Fast Delivery Time: 2-3 Weeks After Order
Free Samples Available for Evaluation
New Custom Design Support Based on Client Requirements

Frequently Asked Questions

1. What is the maximum speed supported by this RJ45 connector?

This connector supports high-speed data transmission up to 2.5G BASE-T, making it ideal for modern Ethernet applications.

2. Does this connector support Power over Ethernet (PoE)?

Yes, it is specifically designed for Ethernet (POE) applications, allowing both data and power to be transmitted over a single cable.

3. What are the port configuration and mounting options?

The connector features a 2x4 (8-port) stacked configuration with a side-entry PCB mount angle and THT solder pin type.

4. What is the operating temperature range for this product?

The device is designed to operate reliably within a temperature range of -20°C to +70°C.

5. Is the connector shielded against EMI?

Yes, it is fully shielded and includes EMI tabs to ensure signal integrity and reduce electromagnetic interference.

6. What certifications does this product hold?

The product is ISO 9001:2008 certified, UL listed, and fully compliant with Reach and RoHS standards.
