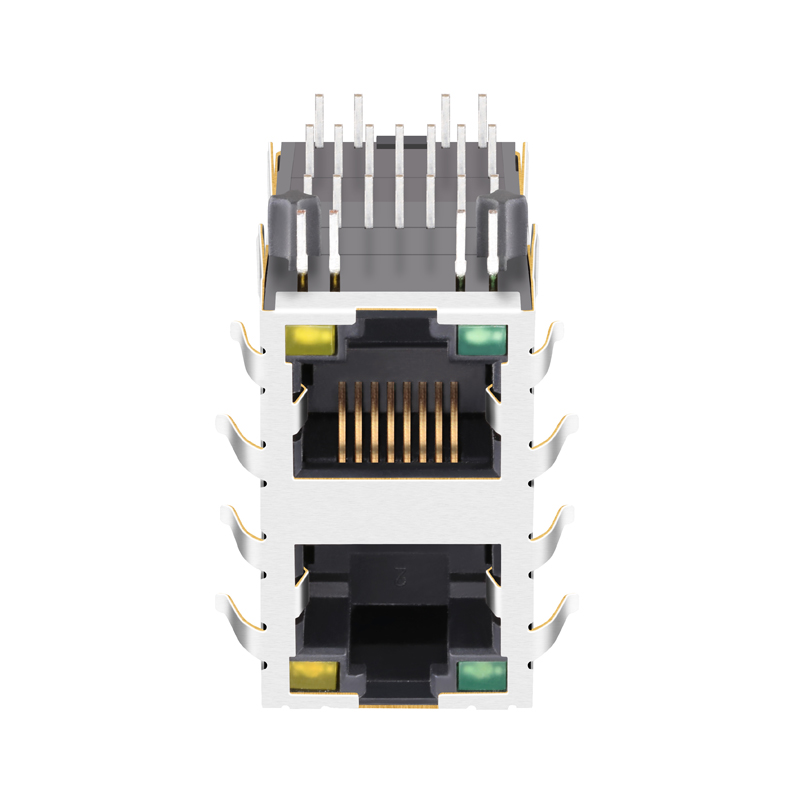

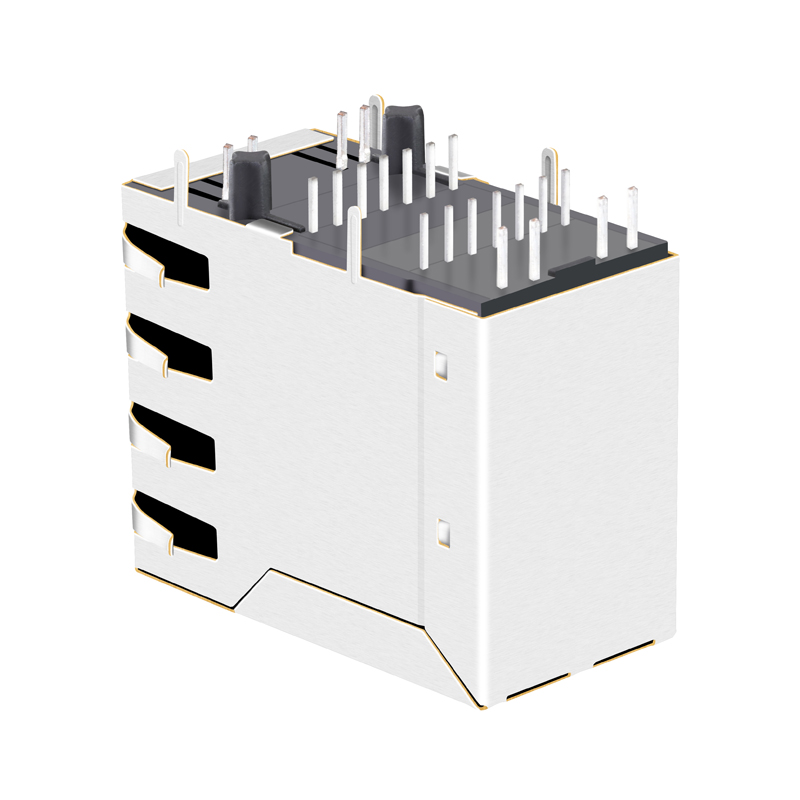

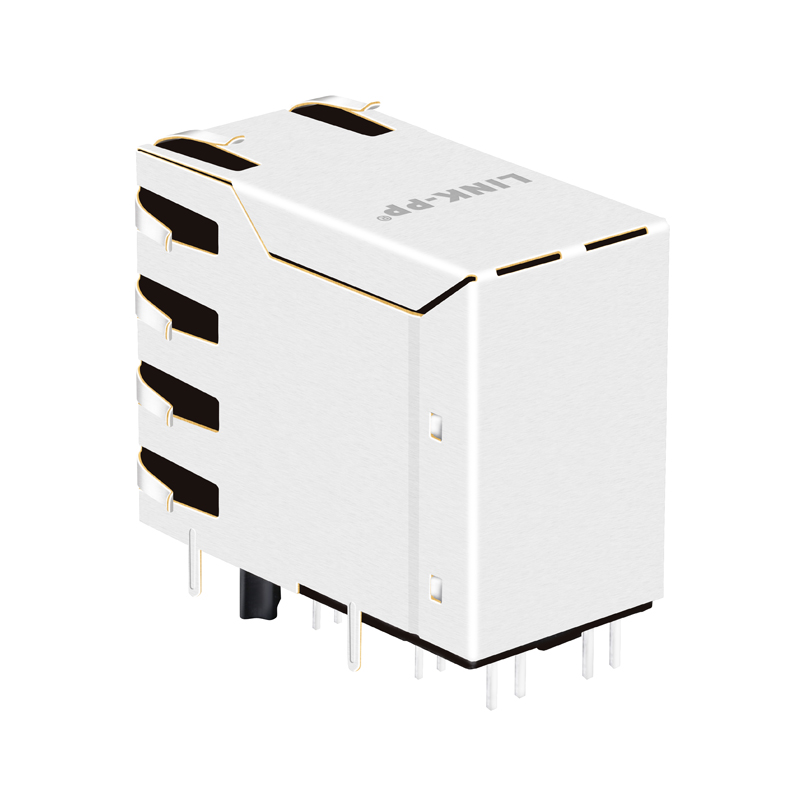

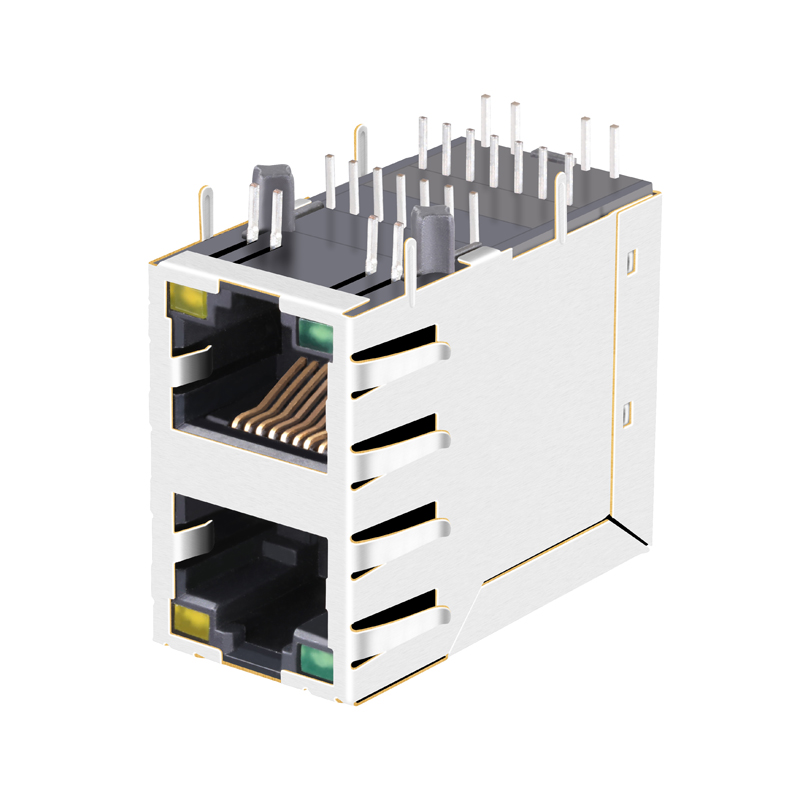

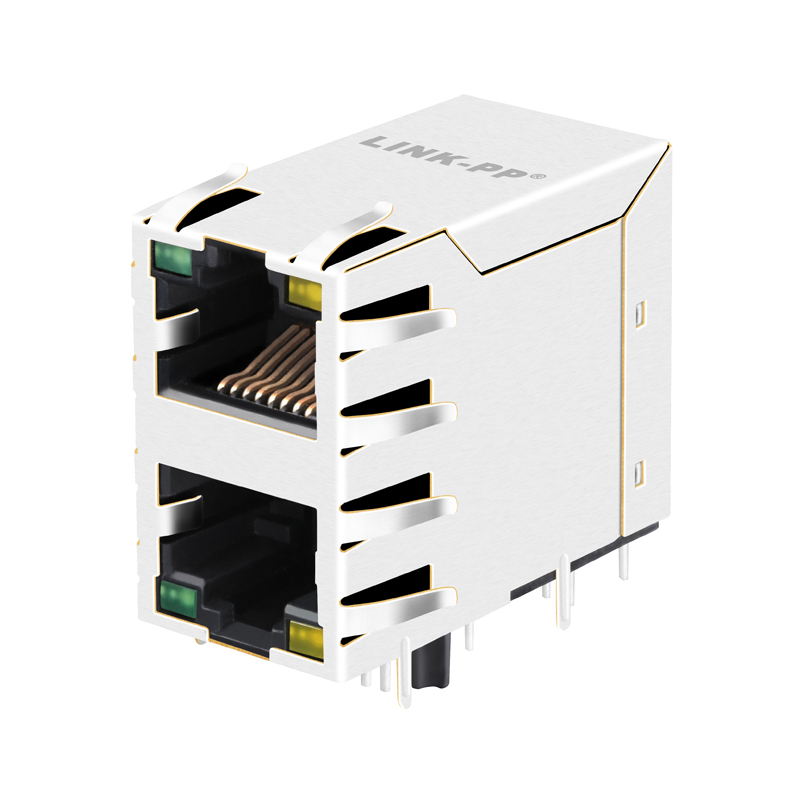

| 2x1 Port RJ45 Connector 10/100 Base-T Integrated Magnetics | |
|---|---|
| Part Number | LPJ17202CNL |
| Cross Reference | MIC24A10-0101W-LF3 / 7499051002 |
| Application-Lan | ETHERNET (Non PoE) |
| AutoMDIX | YES |
| Bst Circuit | YES |
| Configuration RX/TX | T,C / T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | NO |
| Diodes/LED Option | Without |
| Latch Configuration | TAB DOWN / Up |
| Number of Ports | 2x1 (Listed as 1x1 in original data) |
| Material & Mount | FR4 / SIDE ENTRY |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Shield EMI Tabs | With |
| Speed | 10/100 Base-T |
| Temperature Range | -40 TO 85℃ |
| Turns Ratio | 1CT:1CT |
Leading supplier of Integrated RJ45 Connectors and Discrete Magnetic Transformers with global industry standards.
• Suitable for high-density networking equipment.
• Compatible with major processor platforms and BeagleBone boards.
• Designed for industrial temperature environments (-40 to 85℃).
This connector features 10/100 Base-T integrated magnetics, EMI shielding tabs, and a robust design suitable for industrial temperature ranges from -40 to 85℃.
Yes, it is manufactured under ISO 9001:2008 standards and holds UL and Reach certifications, ensuring it meets strict global quality and safety requirements.
We offer multiple gold plating thicknesses for the contact mating area, including 6u", 15u", and 30u", depending on your durability and conductivity needs.
This specific model is designed for standard ETHERNET (Non-PoE) applications. For PoE requirements, please consult our other specialized integrated magnetic series.
Our standard delivery time is approximately 2-3 weeks after order confirmation, providing a faster turnaround compared to many other market alternatives.
Yes, every single unit is 100% tested during the manufacturing process—not just batch tested—to ensure defect-free performance and long-term reliability.
