Product Description

1
Product Description
RJ45 Connector
Characteristics

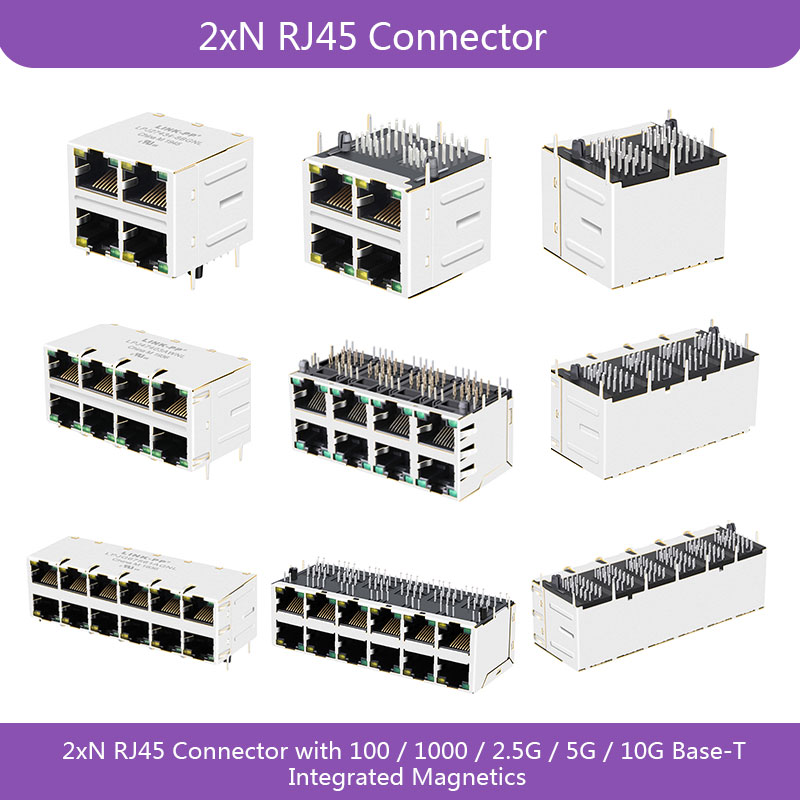

  • RJ45 Connector with integrated transformer / common mode choke
  • Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s
  • Available in SMT, THT and THT with USB
  • Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEE 802.3bt
  • HPLE products: Improved Common Mode Rejection due to additional NiZn cores
2
Technical Specifications
Model NumberRJ45 Filtered Connectors
Part StatusActive
Connector TypeRJ45
Applications-LanEthernet(PoE/Non_PoE)
Speed10/100/1000/2.5G/5G/10G Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Contact Finish Thickness6.00µin (0.152µm)
LED ColorYellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores per Jack4/6/8/12
ShieldingShielded, Emi Finger
Number of Ports2x1 2x2 2x4 2x6 2x8 Port
FeaturesBoard Guide
Tab DirectionDown/Up
Contact FinishGold
Configuration RX/TXT,C
Turns Ratio RX/TX1CT:1CT
Operating Temperature0°C ~ 70°C / -40°C ~ +85°C
3
Packing & Delivery

Package Details: Tray Packing

Carton Size: 32*30*31cm

Weight: G.W. 8.5kg / Carton | N.W. 0.007kg / piece

Quantity: 1200pcs / Carton | SPQ: 50pcs

Packing Details
4
Product Gallery
?
Frequently Asked Questions
Q: What is the maximum data speed supported by these RJ45 connectors?
These connectors support a wide range of speeds including 10/100/1000 Mbps, as well as high-speed 2.5G, 5G, and up to 10G Base-T applications.
Q: Do these connectors support Power over Ethernet (PoE)?
Yes, they are designed for PoE/Non-PoE Ethernet applications, supporting up to 50 Watts and compliant with IEEE 802.3af, 802.3at, and 802.3bt standards.
Q: What are the available mounting and orientation options?
They are available in SMT and THT (Through Hole) mounting types, with a 90° Right Angle orientation and both Up and Down tab directions.
Q: What certifications do these products hold?
Our components are manufactured under strict quality control and are certificated by SGS, ISO9001, UL, REACH, and CE standards.
Q: What is the operating temperature range?
The standard operating temperature is 0°C ~ 70°C, with industrial grade options available for -40°C ~ +85°C environments.
Q: How is quality guaranteed before shipment?
We follow a rigorous quality process including a pre-production sample before mass production and a final inspection of all goods before shipment.
