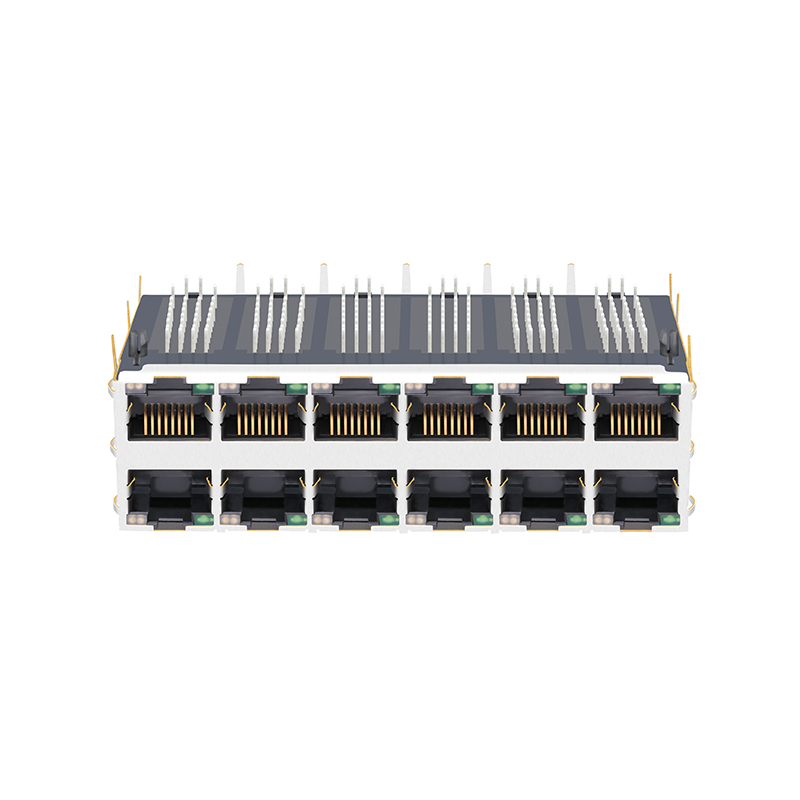

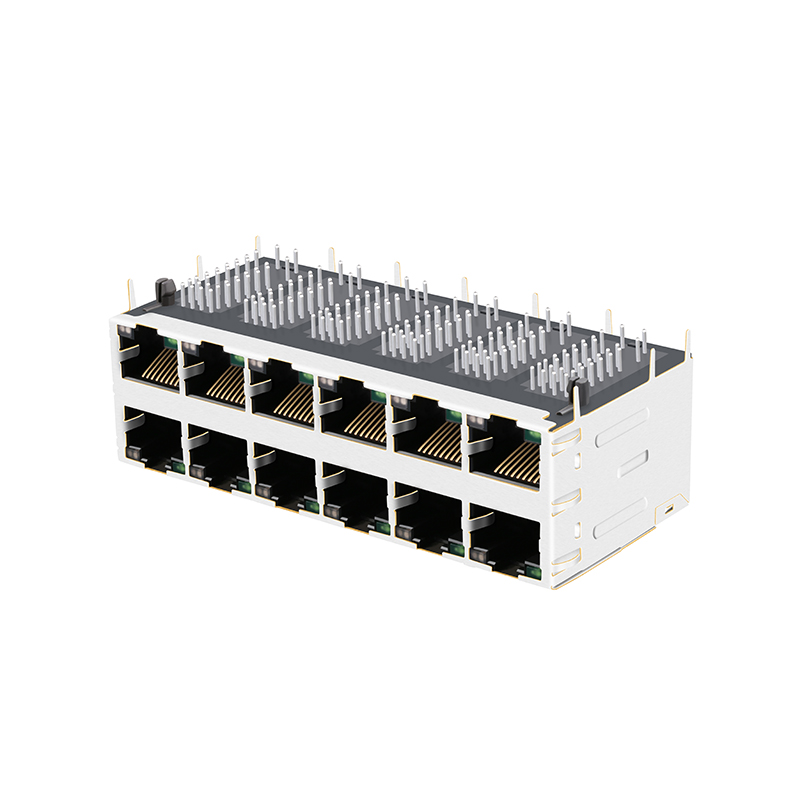

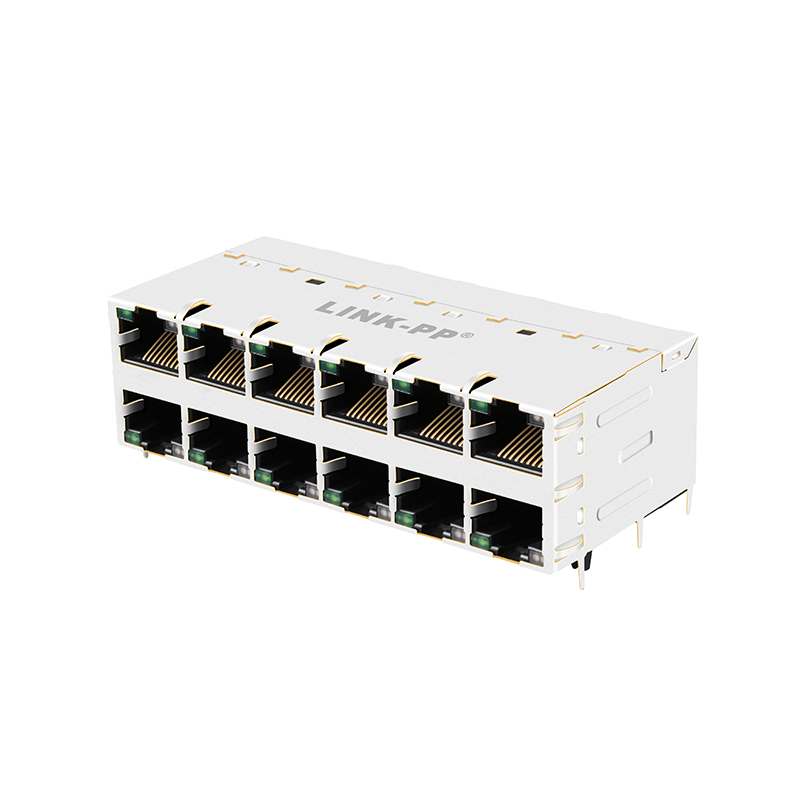

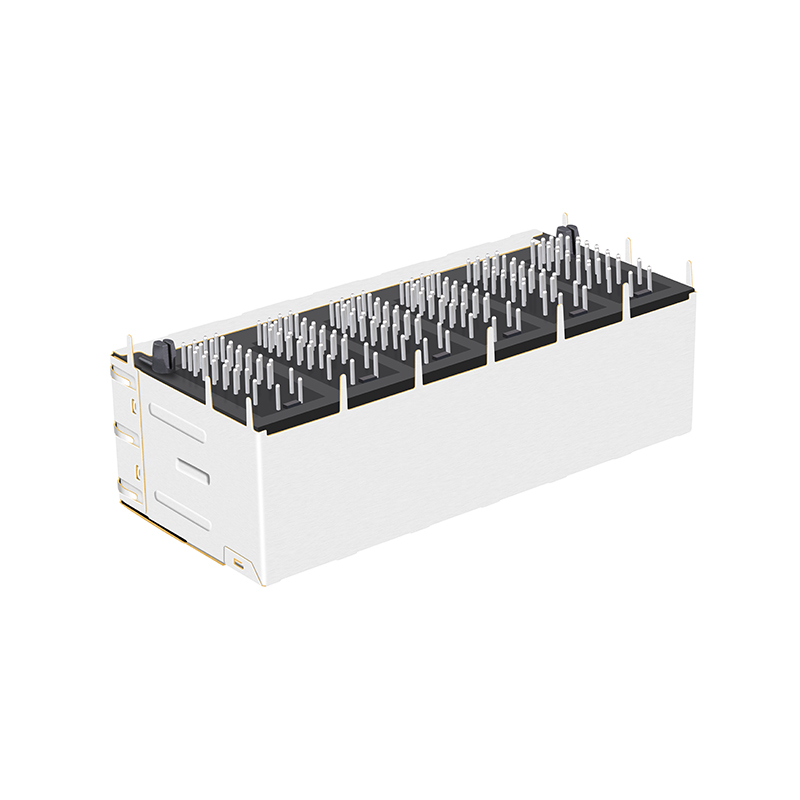

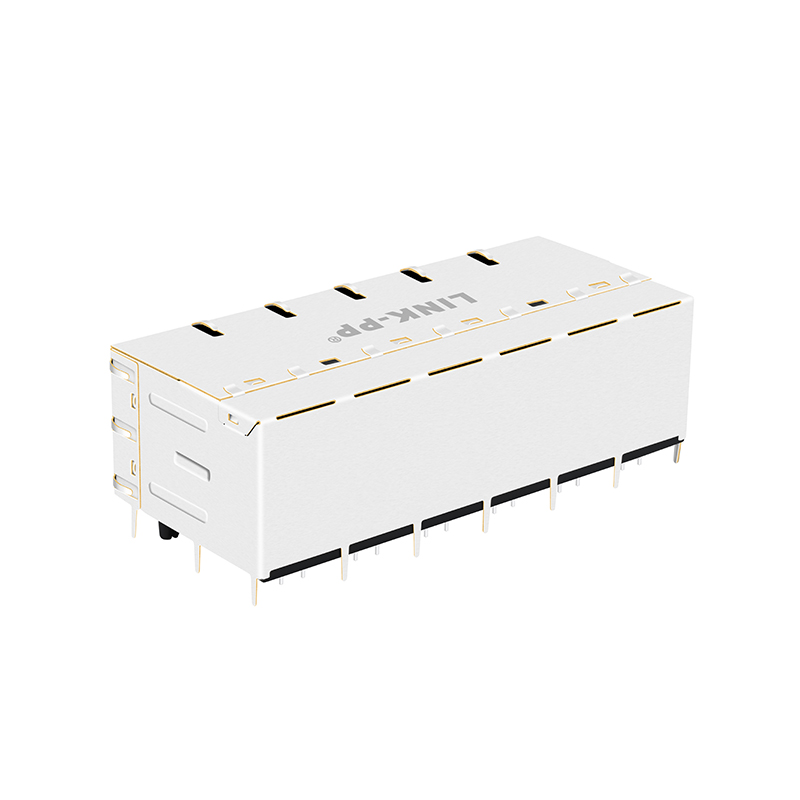

| Item | RJ45 Female Connector |
| Part Number | LPJ67312A43NL |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 2x6 Port |
| Speed | 10/100 Base-T |
| Latch | Up/Down |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | Without |
| LED Option | Green/Yellow |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0℃ TO 70℃ |
| Bst Circuit | Yes |
| AutomDX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. Our factory owns advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With an abundant productive capacity of 3000K per month, we are able to deliver goods within a short time. Moreover, we provide professional complete solutions for magnetic components and strong technical support.
Main Products include 10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem. We have exported products to more than 30 countries and regions worldwide.
