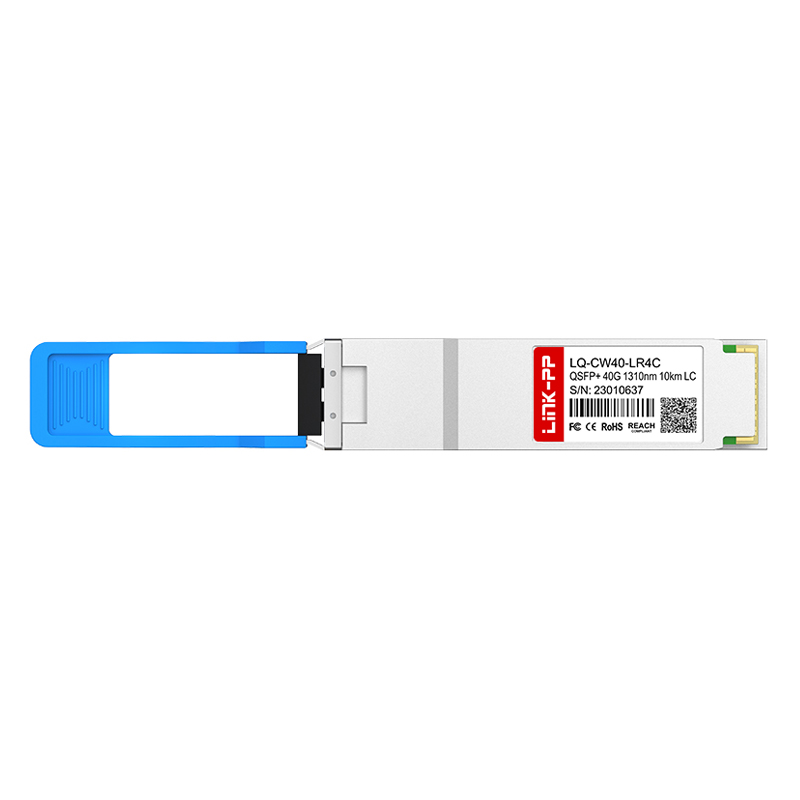

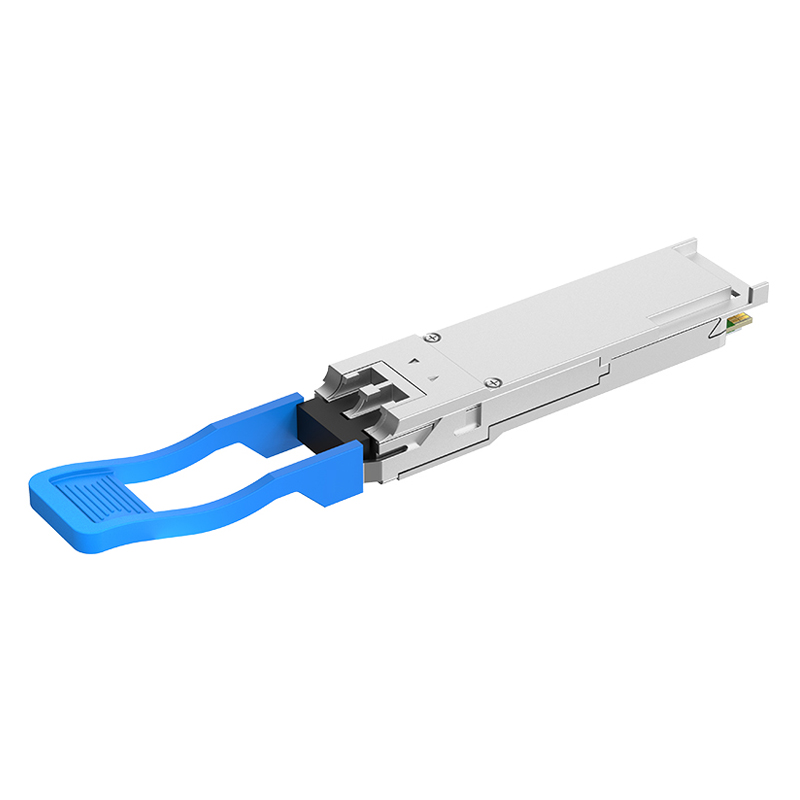

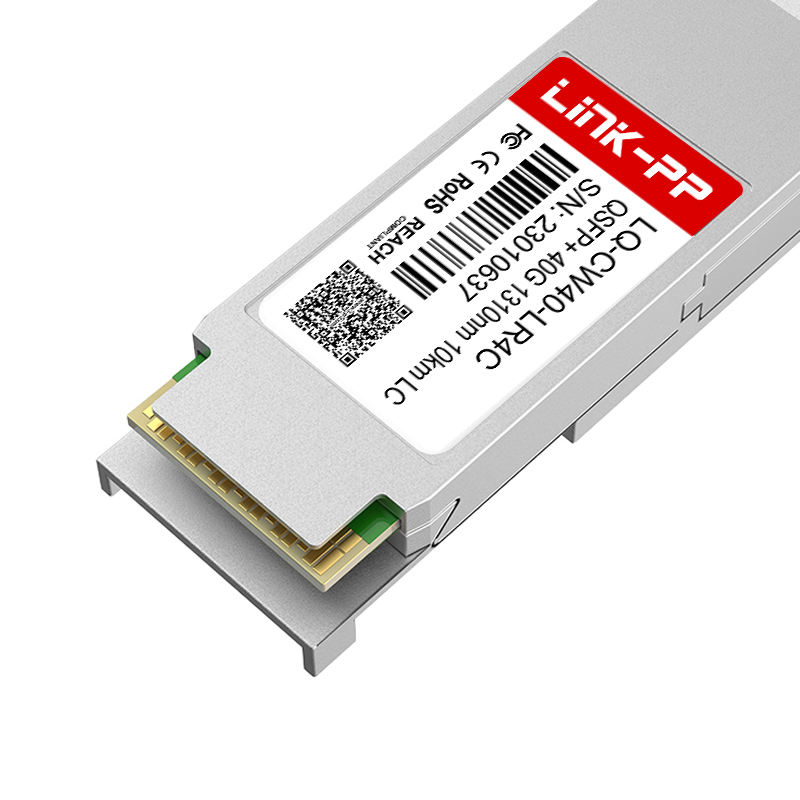

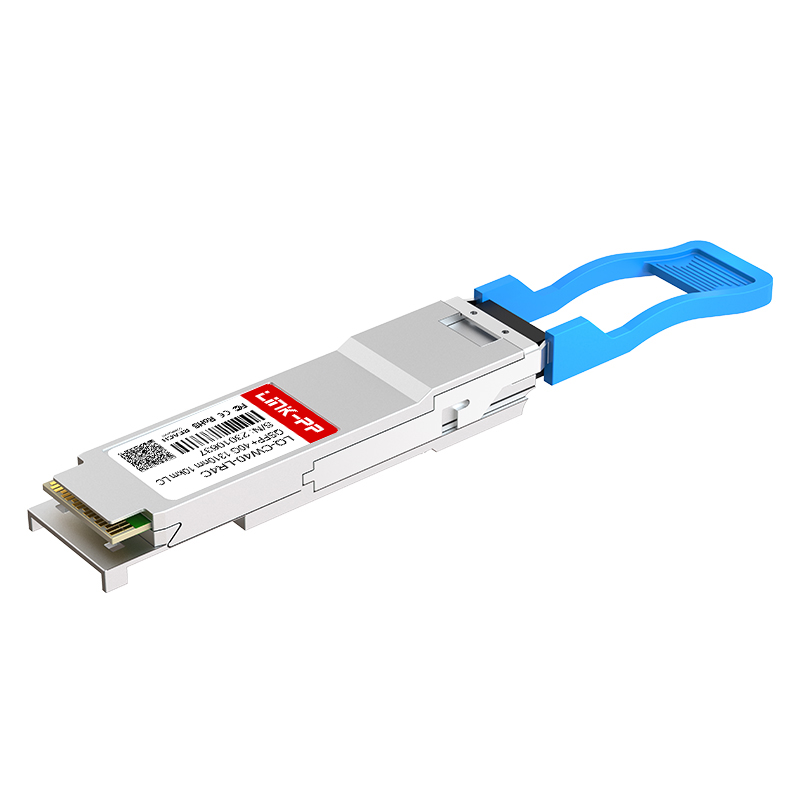

| Item | 40G QSFP+ Module |
| Part Status | Active |
| Form Factor | QSFP+ |
| Max Data Rate | 40G |
| Max Cable Distance | 10km |
| Wavelength | 1310nm |

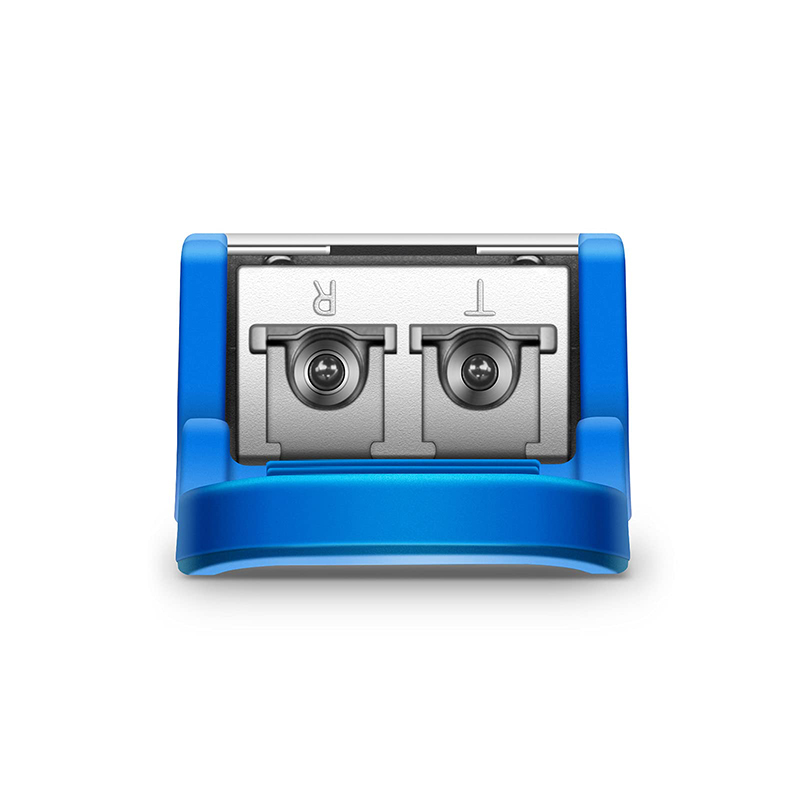

| Connector | Duplex LC |
| Media | SMF |
| Optical Component | DFB/PIN |
| TX Power | -7~2.3dBm |
| Receiver Sensitivity | <-11dBm |
| Receiver Overload | 2.4dBm |
| Power Budget | 4dB |
| Power Consumption | ≤3.5W |
| DDM/DOM | DDM Supported |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | OTN OTU3, 40G Ethernet, Fiber Channel, SATA/SAS3, MSA Compliant |
| Warranty | 5 Years |
| Sample | Available |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
End-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier(EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
To meet the demand of mass data transmission in data centers, we have developed high-speed optical modules with rates ranging from 10G to 800G, providing high-quality interconnection solutions.
High reliability products with mature lasers and chip solutions. Includes Dark Fiber, WDM, Radio over Fiber, High Speed, and Back-haul for 4G/5G systems.
FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products for global communication network constructers.
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. We own advanced manufacturing facilities and test equipment. Established in 1997, with a production capacity of 3000K per month, we ensure short delivery times and high-quality optical interconnection solutions for cloud computing and ultra-broadband networks.
