Drawing on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

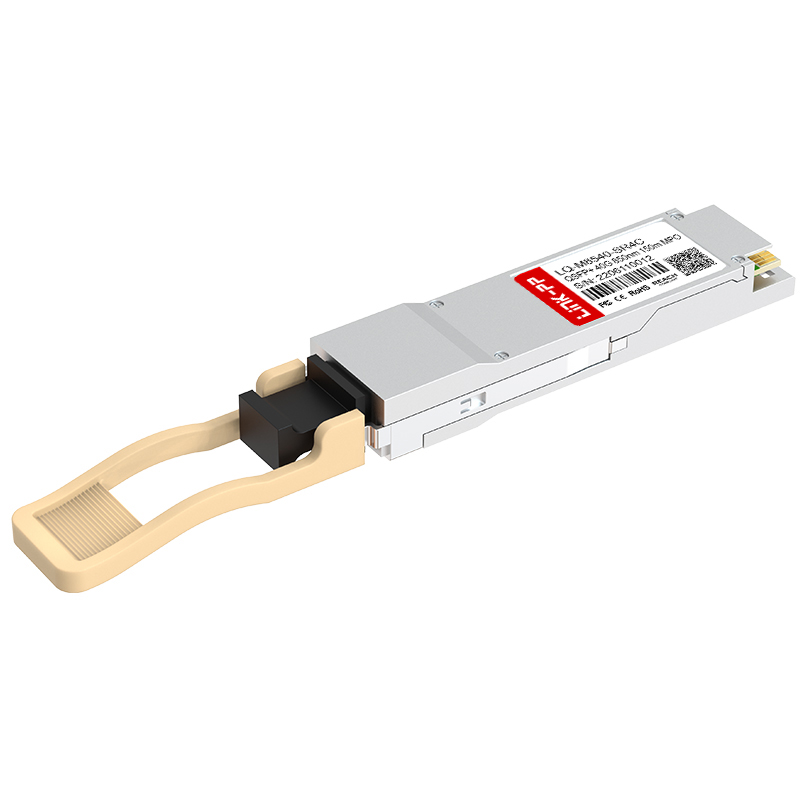

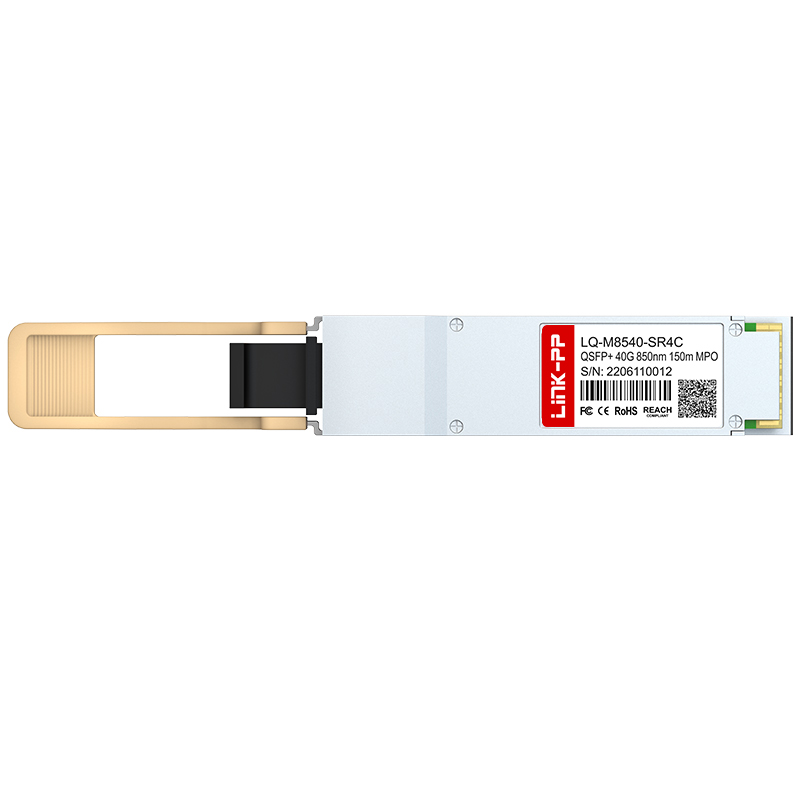

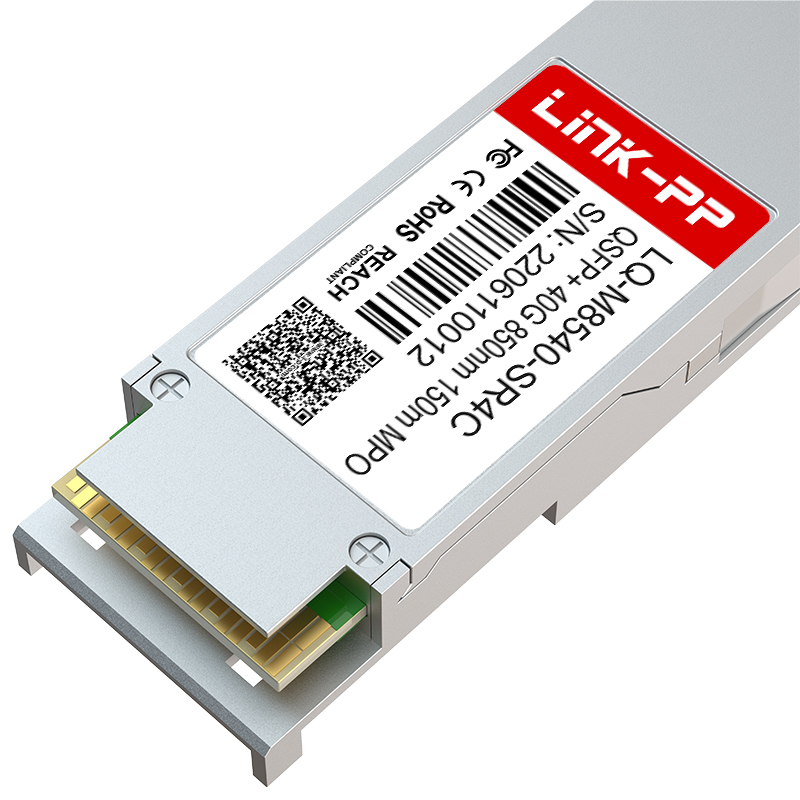

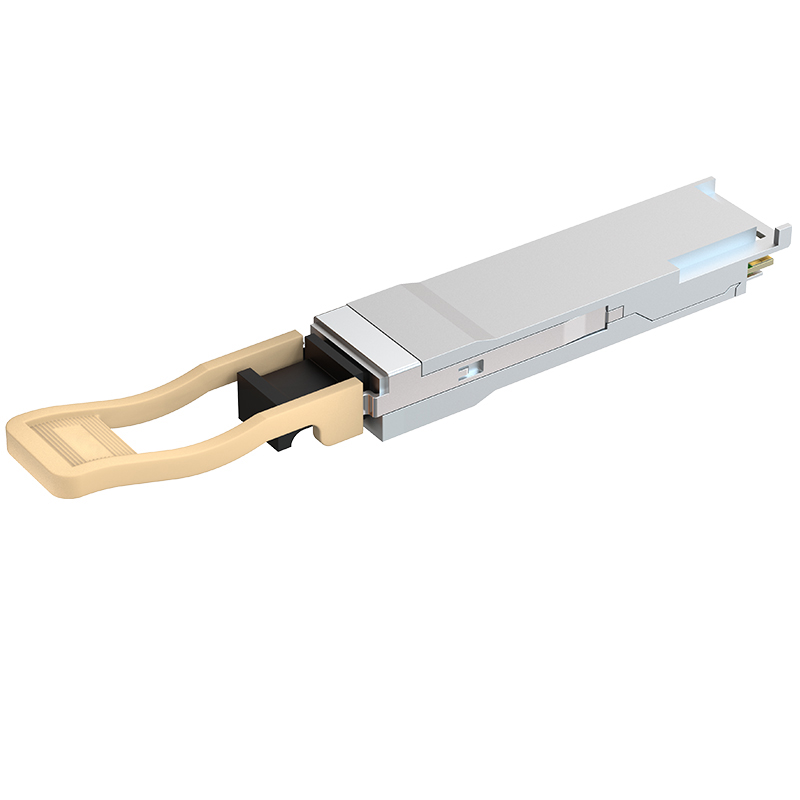

| Item | 40G QSFP+ Module |
| Part Status | Active |
| Form Factor | QSFP+ |
| Max Data Rate | 40G |
| Max Cable Distance | 150m@OM4 / 100m@OM3 |
| Wavelength | 850nm |
| Connector | MTP/MPO-12 Male |
| Media | MMF |
| Optical Component | VCSEL/PIN |
| TX Power | -7.1 ~ 1.9dBm |
| Receiver Sensitivity | < -10.3dBm |
| Receiver Overload | 2.4dBm |
| Power Consumption | < 1.5W |
| DDM/DOM | Supported |
| Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | IEEE 802.3ba, QSFP+ MSA, SFF-8436, SFF-8636 |
| Warranty | 5 Years |
End-to-end DWDM devices with almost all optical devices - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
High-speed optical modules with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers to meet mass data transmission demands.
Reliable and performance-driven products with mature lasers and mainstream chip solutions. Includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul for 4G/5G systems.
Optical fiber access total solutions covering all-optical or optical copper combined access solutions and products for global communication network constructors.
As a specialized manufacturer of magnetic telecom and networking components, we are certificated by ISO9001:2000, ROSH, REACH, CE and UL. We own advanced manufacturing facilities and test equipment to ensure high productivity and quality control.
The module supports a maximum cable distance of up to 150 meters when using OM4 Multimode Fiber (MMF) and up to 100 meters using OM3 MMF.

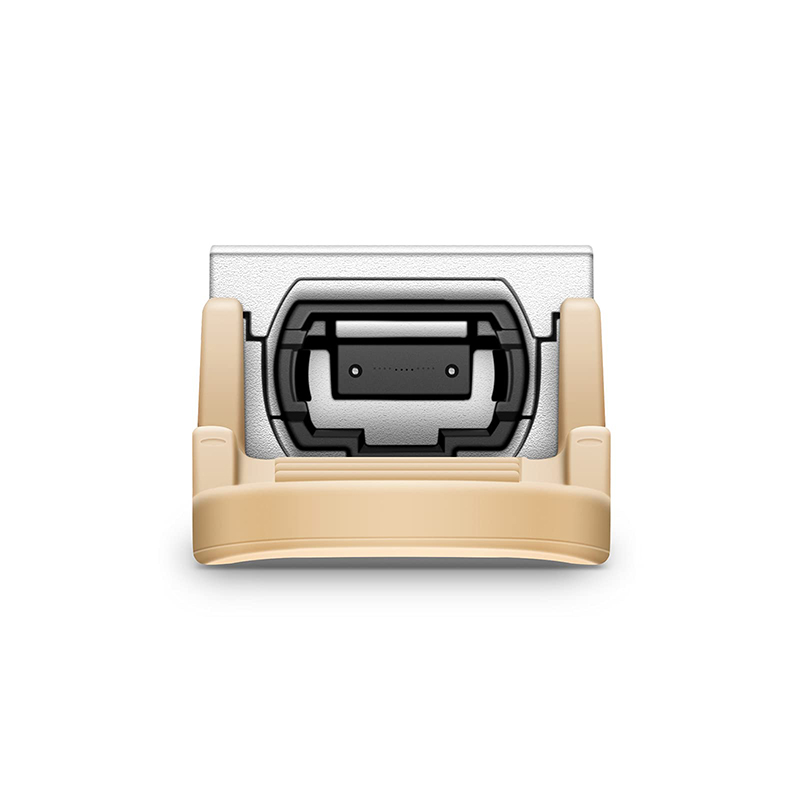

This module uses an MTP/MPO-12 Male connector, which is standard for SR4 multimode connections.
Yes, DDM (Digital Diagnostics Monitoring) is supported, allowing users to monitor real-time parameters such as temperature, voltage, and optical power.
The module is designed for high efficiency with power consumption typically under 1.5W.
Yes, it is fully compliant with IEEE 802.3ba, QSFP+ MSA, SFF-8436, and SFF-8636 protocols.
We provide a 5-year warranty for these transceiver modules to ensure long-term reliability for your network.
