Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7
Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7
Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7
Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7
Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7
1 / 5
Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7
Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7
Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7
Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7
Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7

Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7

Send Inquiry

Product Description

Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7

Product Banner

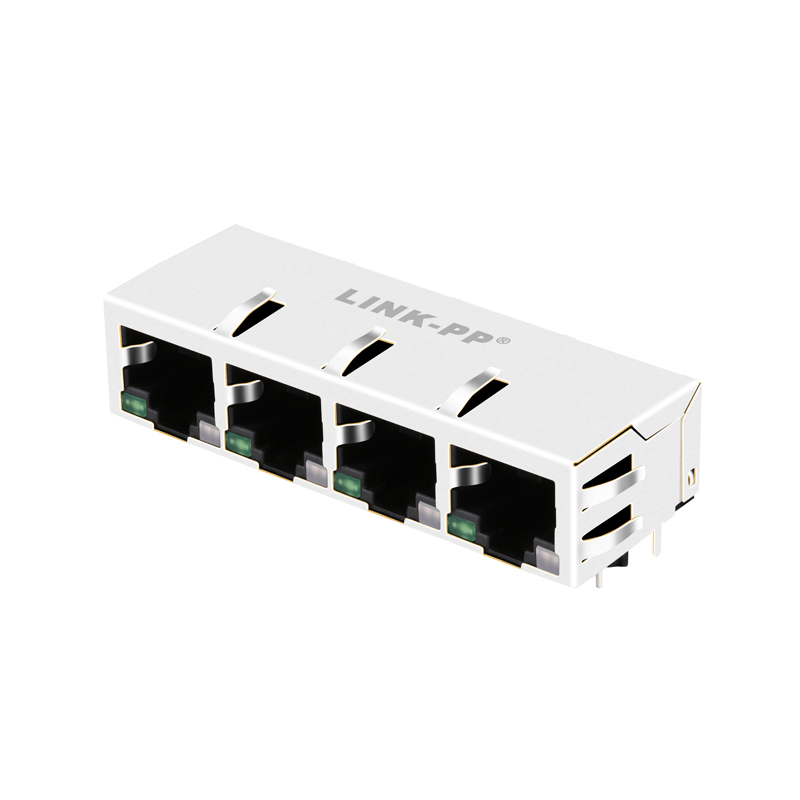

RJ45 Front View

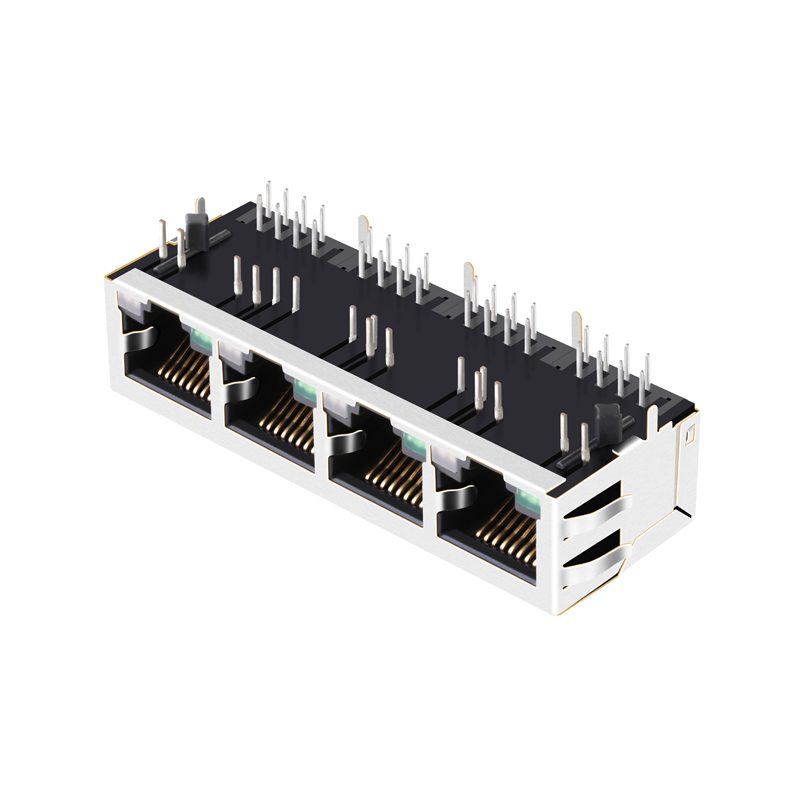

RJ45 Side View
Specifications Divider
Part Number5-6610068-7
AutomDXYES
Bst CircuitYES
Configuration RXT,C
Configuration TXT,C
Contact Mating Area PlatingGOLD 6u"/15u"/30u"/50u"
Cores Per Port4
DiodesNO DIDES41
LED OptionGREEN/GREEN&ORANGE
LatchUP
Number of Ports1X4
PCBFR4
PCB Mount AngleSIDE ENTRY
PCB Retaining PostT POST
Pin TypeTHT SOLDER
RoHS CompliantYES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
SearchYES
Shield EMI TabsWITH OR WITHOUT
Speed1000 BASE-T
Temperature0 TO 70°C/-40 TO 85°C
Turns Ratio RX1CT:1
Turns Ratio TX1CT:1

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

📜
Professional Certification
  • ISO 9001:2008
  • UL Certification
  • Reach Certification
  • RoHS Compliance
  • Active Environmental Policy
🛡️
100% Guarantee Quality
  • Manufactured Under Strict Controls
  • 100% Tested (Not Just Batch Tested)
  • Successful Customer: Texas Instruments, Samsung, Cisco, Siemens, Intel...
  • Quality Guarantee: 6 Years
💰
Competitive Price & Service
  • More Competitive Price than Major Global Brands
  • Delivery Time: 2-3 Weeks After Orders
  • Free Samples Are Available
  • Custom Design for Customer Requirements
  • 90% Off Shipping Cost by Major Carriers

Technical Drawings & Schematics

Technical Drawing 1
Technical Drawing 2
Detailed Schematic
Mechanical Dimensions

• Preferred Supplier Of TI Samsung Cisco Siemens ...

• Trusted Logo featured on BeagleBone Board

Footer Banner Top
Application 1
Application 2

Frequently Asked Questions

Q1: What is the data transfer speed of the 5-6610068-7 connector? A1: This RJ45 connector supports Gigabit Ethernet speeds (1000 BASE-T), making it suitable for high-speed networking applications.
Q2: What is the port configuration and mounting type? A2: It features a 1X4 modular jack configuration with a side entry (right angle) PCB mount and THT solder pin type.
Q3: What are the available LED options for this model? A3: The connector comes with LED options including Green/Green & Orange to indicate link status and activity.
Q4: Is this connector compliant with environmental standards? A4: Yes, it is RoHS compliant and meets UL, Reach, and ISO 9001:2008 certification standards.
Q5: What is the operating temperature range? A5: It is designed to operate in temperatures ranging from 0 to 70°C, with industrial options available for -40 to 85°C.
Q6: What type of shielding and latching does it use? A6: It features an "UP" latch position and includes EMI tabs for enhanced shielding against electromagnetic interference.
