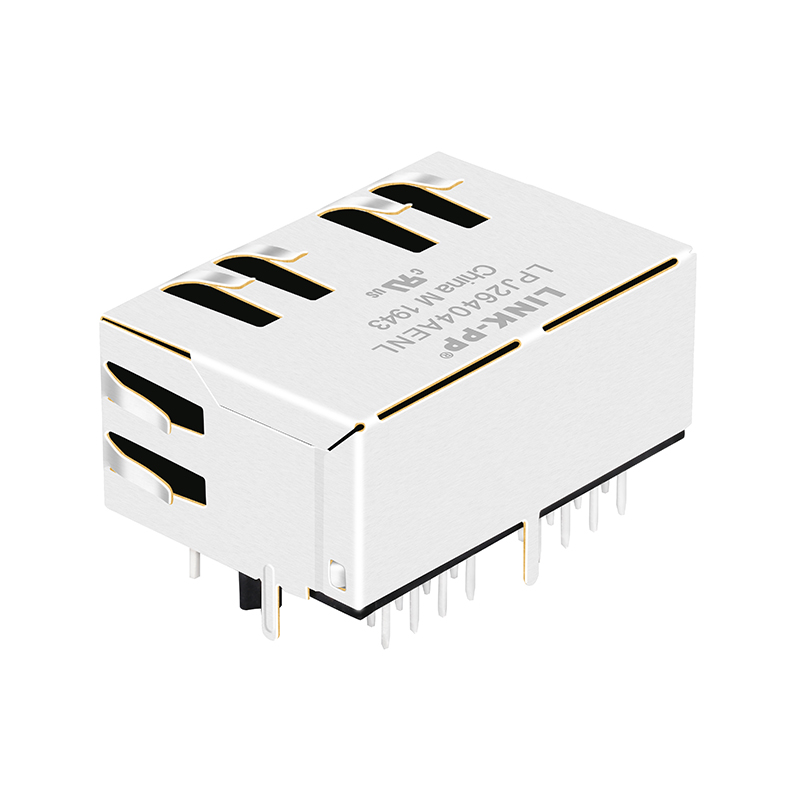

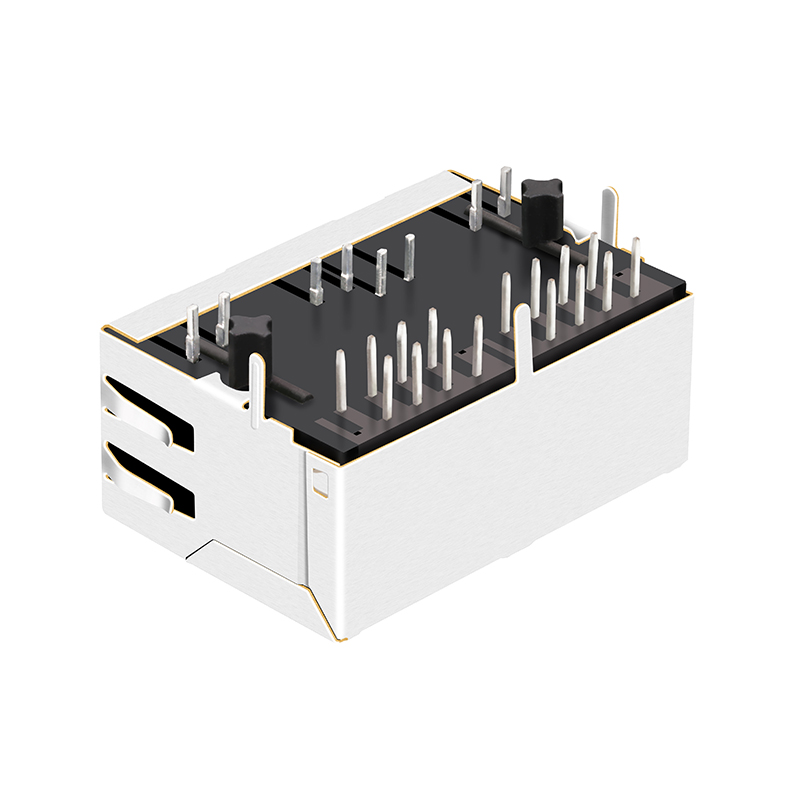

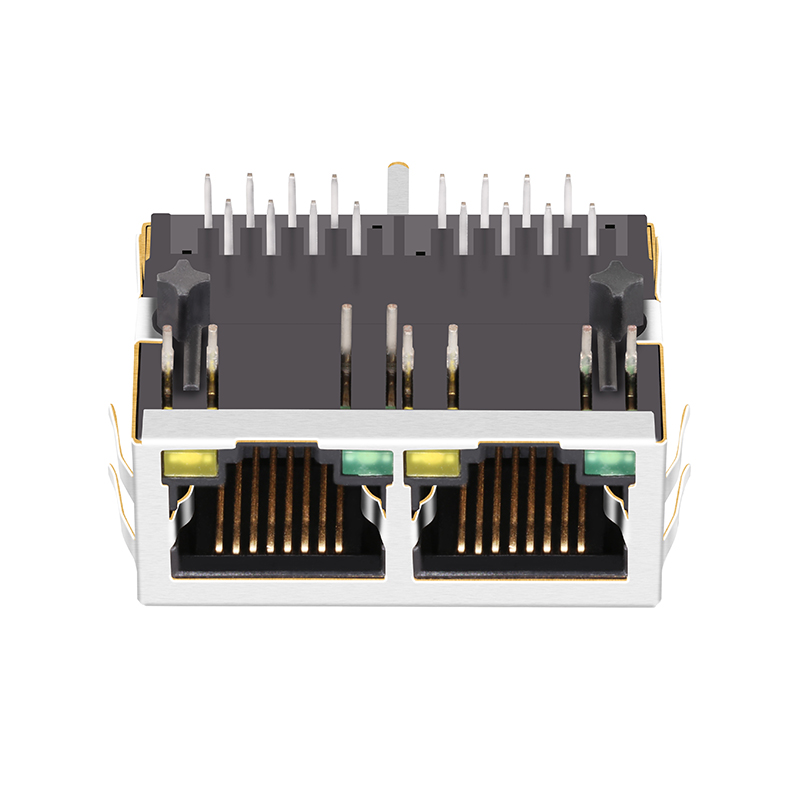

JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
1 / 5
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack
JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack

JXR8-1001NL / JXD0-2005NL 10/100 Base-T 1X2 Port G/Y Led Industrial Ethernet Connectors 8P8C Modular Jack

Send Inquiry

Product Description

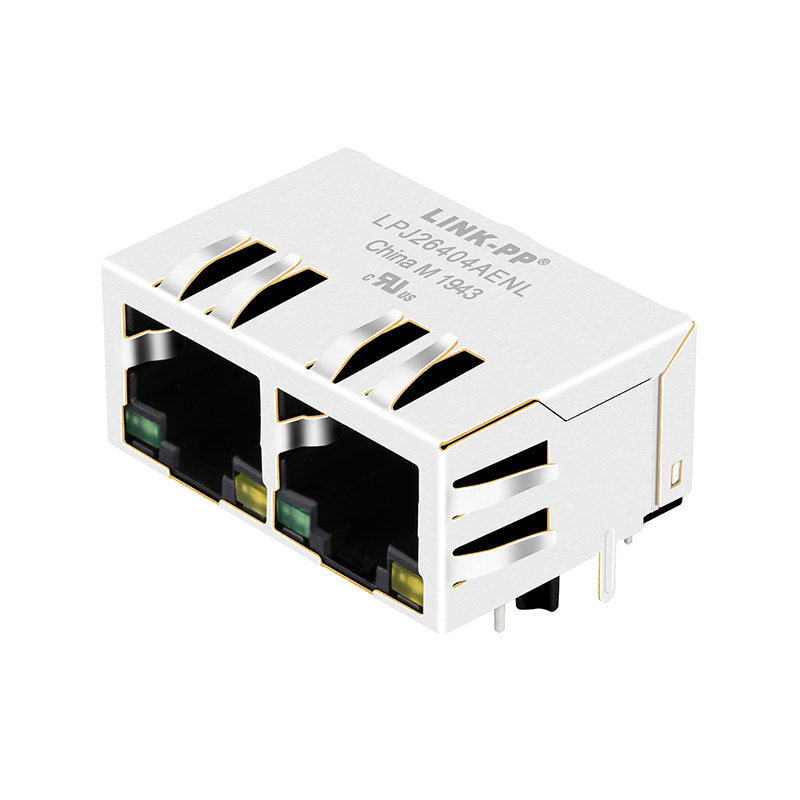

Product Display 1

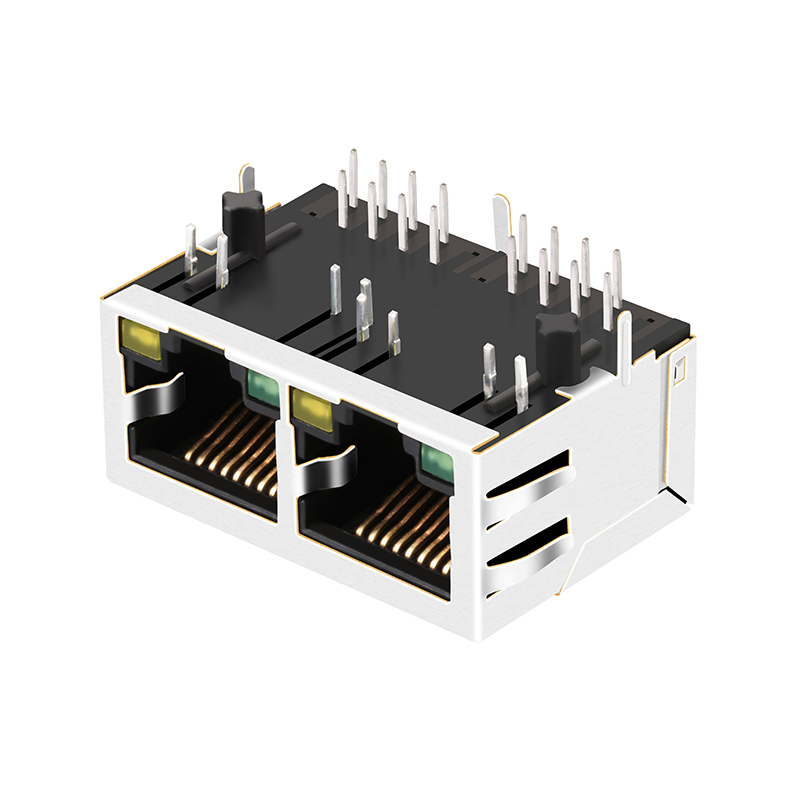

Product Display 2
Specification
itemvalue
Part NumberLPJ26404AENL
Cross ReferenceJXD0-2005NL / JXR8-1001NL
Part StatusActive
Connector TypeRJ45
Applications-LanEthernet(Non_PoE)
Speed10/100 Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Contact Finish Thickness6.00µin (0.152µm)
LED ColorGreen/Yellow Led
Number of Cores per Jack4
ShieldingShielded, Emi Finger
Number of Ports1x2 Port
FeaturesBoard Guide
Tab DirectionDown
Contact FinishGold
Configuration RX/TXT,C
Turns Ratio RX/TX1CT:1CT
Operating Temperature-40°C ~ 85°C
Professional Manufacturing

We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. Our facility owns advanced manufacturing facilities and test equipments imported from abroad. With around 2000 staff and an abundant productive capacity of 3000K per month, we ensure professional complete solutions for magnetic components and strong technical support.

Main Product Categories
  • 10/100/1000M/2.5G/5G/10G LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M/2.5G/5G/10G magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Frequently Asked Questions
Q1: Are you a manufacturer or trade company?
A: We are a manufacturer that specialized in RJ45 connectors and LAN Transformer for more than 23 years.
Q2: Can I get some samples for testing?
A: Yes, 3-5 pcs free samples are available for your test. Small batches are also acceptable.
Q3: Is OEM/ODM service available?
A: Yes. We have rich experience and the ability to put your design and idea into a real product, including laser printing your brand.
Q4: What is the typical lead time?
A: We have a professional production team. Usually, we can ship within 30 days depending on the specific order details.
Q5: Which certifications do your products hold?
A: Our products are certificated by ISO9001:2000, ROSH, REACH, CE and UL to ensure international quality standards.
Q6: What are the main applications for these components?
A: They are widely used in networking and communication equipment such as HUBs, PC cards, Switches, Routers, Mainboards, and IP Phones.
