Shielded Magnetic Dual Ports RJ-45 Connector 1840538-3 6610128-1 1840538-4 1840538-2
Shielded Magnetic Dual Ports RJ-45 Connector 1840538-3 6610128-1 1840538-4 1840538-2
Shielded Magnetic Dual Ports RJ-45 Connector 1840538-3 6610128-1 1840538-4 1840538-2
Shielded Magnetic Dual Ports RJ-45 Connector 1840538-3 6610128-1 1840538-4 1840538-2
Shielded Magnetic Dual Ports RJ-45 Connector 1840538-3 6610128-1 1840538-4 1840538-2
1 / 5
Shielded Magnetic Dual Ports RJ-45 Connector 1840538-3 6610128-1 1840538-4 1840538-2
Shielded Magnetic Dual Ports RJ-45 Connector 1840538-3 6610128-1 1840538-4 1840538-2
Shielded Magnetic Dual Ports RJ-45 Connector 1840538-3 6610128-1 1840538-4 1840538-2
Shielded Magnetic Dual Ports RJ-45 Connector 1840538-3 6610128-1 1840538-4 1840538-2
Shielded Magnetic Dual Ports RJ-45 Connector 1840538-3 6610128-1 1840538-4 1840538-2

Shielded Magnetic Dual Ports RJ-45 Connector 1840538-3 6610128-1 1840538-4 1840538-2

Send Inquiry

Product Description

Shielded Magnetic Dual Ports RJ-45 Connector 1840538-3 6610128-1 1840538-4 1840538-2

RJ45 Connector Banner

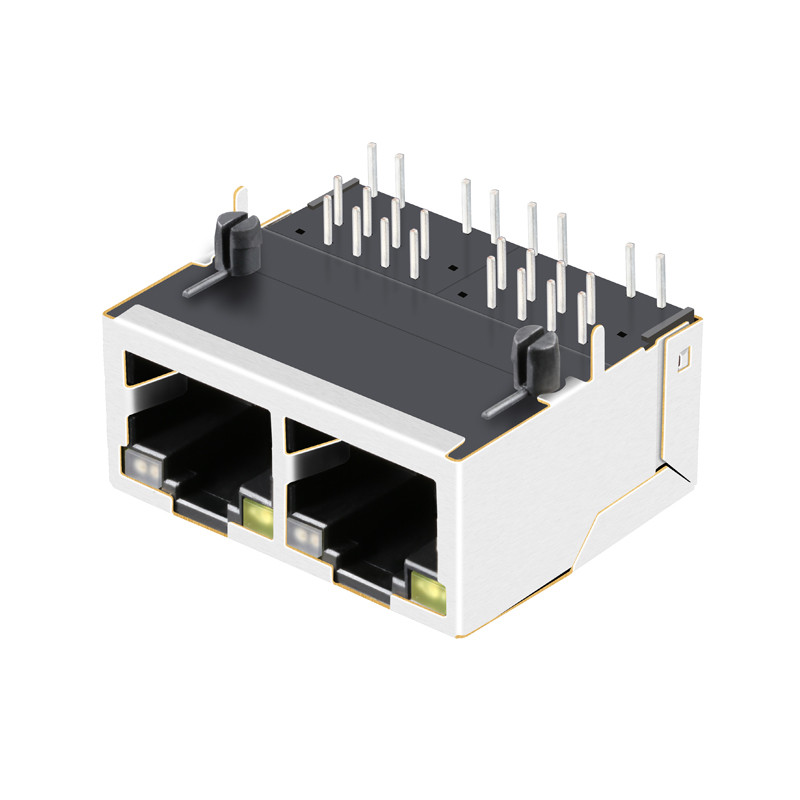

RJ-45 Connector Side View

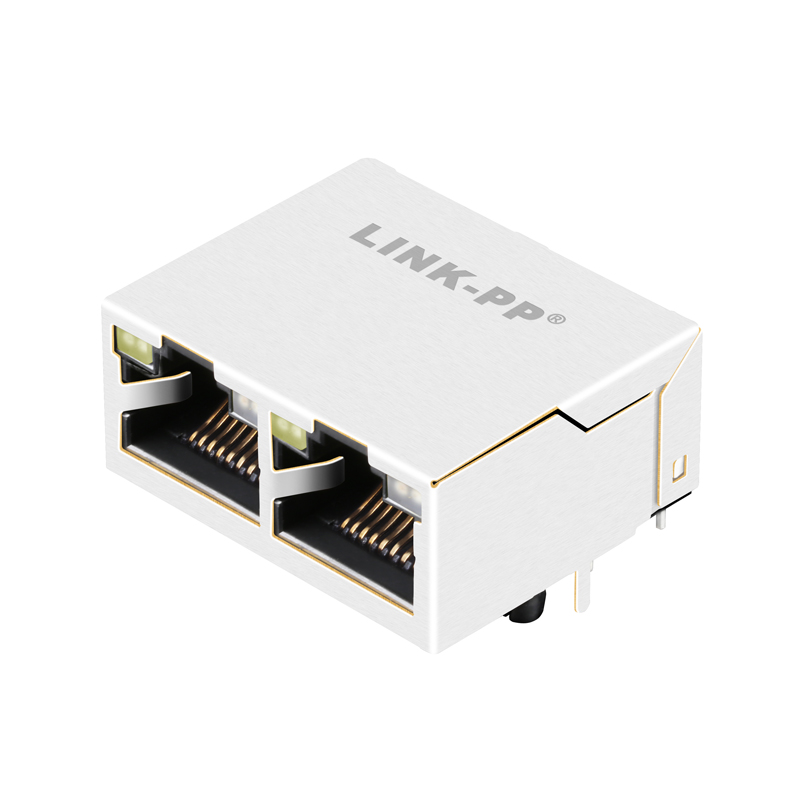

RJ-45 Connector Top View
Magjack Specifications

⚙️Product Specifications

Part Number1840538-3 6610128-1 1840538-4 1840538-2
Application-LANETHERNET (Non-POE)
AutoMDIXYES
Bst CircuitYES
Configuration RX/TXT,C / T,C
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Cores Per Port6
DiodesNO DIODES
LED OptionGREEN/GREEN
LatchUP
Number of Ports1x2
PCB Mount AngleSIDE ENTRY
PCB Retaining PostT POST
Pin TypeTHT SOLDER
RoHS CompliantYES (RoHS-5 with lead in solder exemption)
ShieldingShielded with EMI Tabs
Speed10/100 Base-T
Temperature Range0 ~ 70℃
Turns Ratio RX/TX1CT:1
Detailed RJ45 Design

Preferred Supplier Of Global Brands

Highly recognized and used on beaglebone boards with verified logos.

Product Quality Certification
Production Process
Quality Testing

⭐Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

🛡️Professional Certification

  • ISO 9001:2008
  • UL Certification
  • Reach Certification
  • RoHS Compliance
  • Active Environmental Policy

✅100% Guarantee Quality

  • Manufactured Under Strict Controls
  • 100% Tested (Not Just Batch Tested)
  • OEM Provider for Major Brands
  • 6 Years Quality Guarantee

💰Competitive Price & Service

  • Highly Competitive Market Pricing
  • Fast Delivery: 2-3 Weeks
  • Free Samples Available
  • Custom Design Solutions
Footer Banner
Internal Structure
Dimensions

❓Frequently Asked Questions

1. What is the transmission speed of this RJ45 connector? This connector supports 10/100 Base-T Ethernet speeds, making it ideal for standard LAN applications.
2. Is the 1840538-3 connector compatible with PoE? No, this specific model is designed for Non-POE (Power over Ethernet) applications.
3. Does it provide EMI protection? Yes, the connector is fully shielded and includes EMI tabs to ensure stable signal integrity and minimize interference.
4. What are the available gold plating options for the contacts? We offer multiple gold plating thickness options, including 6u", 15u", and 30u", depending on your durability requirements.
5. What is the typical lead time for an order? The standard delivery time is approximately 2-3 weeks after the order is confirmed.
6. Are these connectors 100% tested before shipping? Yes, every single unit undergoes 100% testing under strict quality controls, rather than just random batch testing.
