| Item | Value |

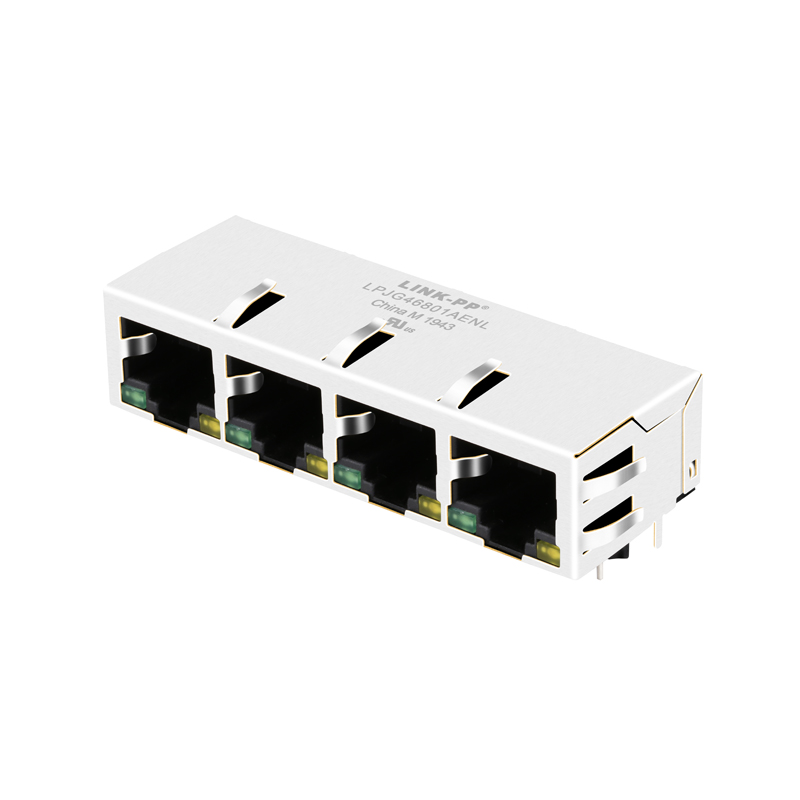

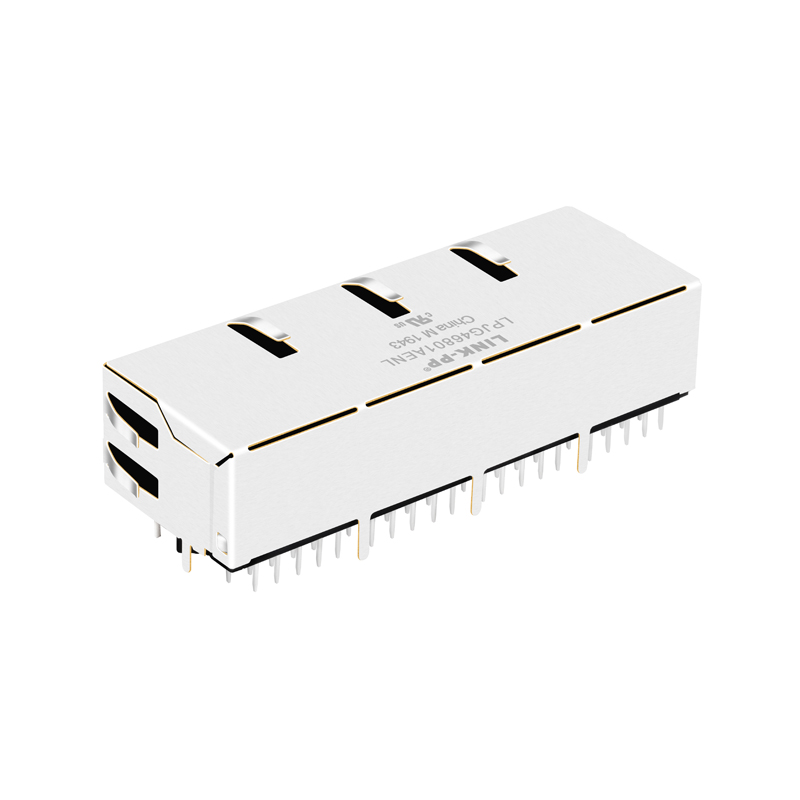

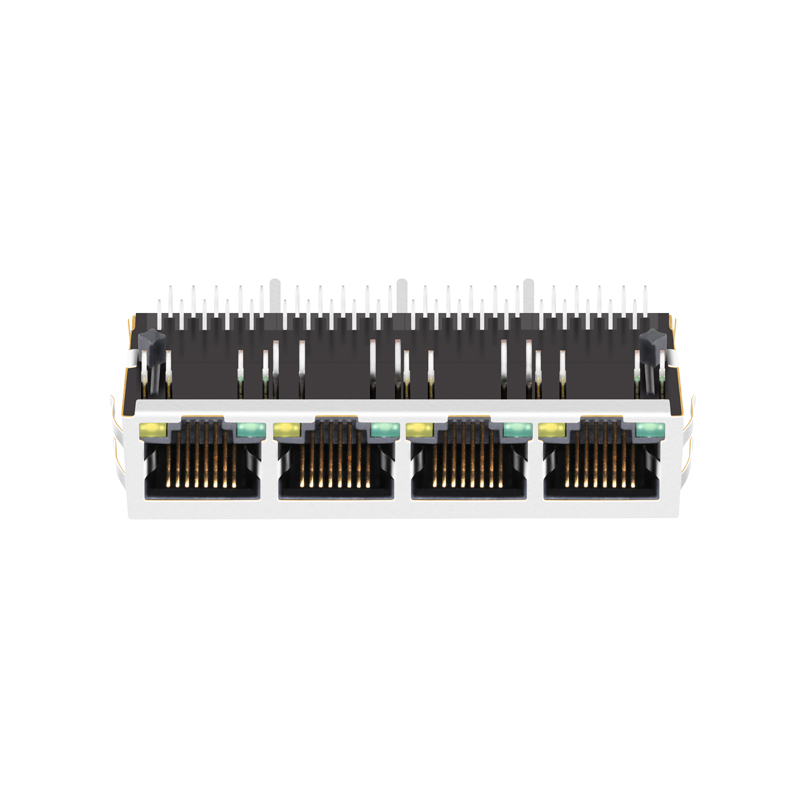

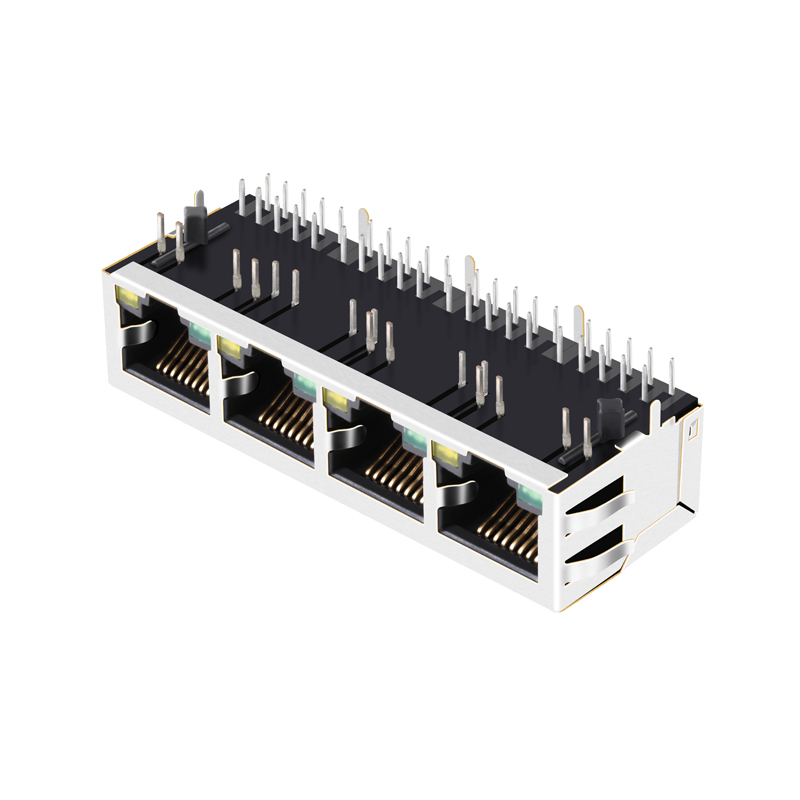

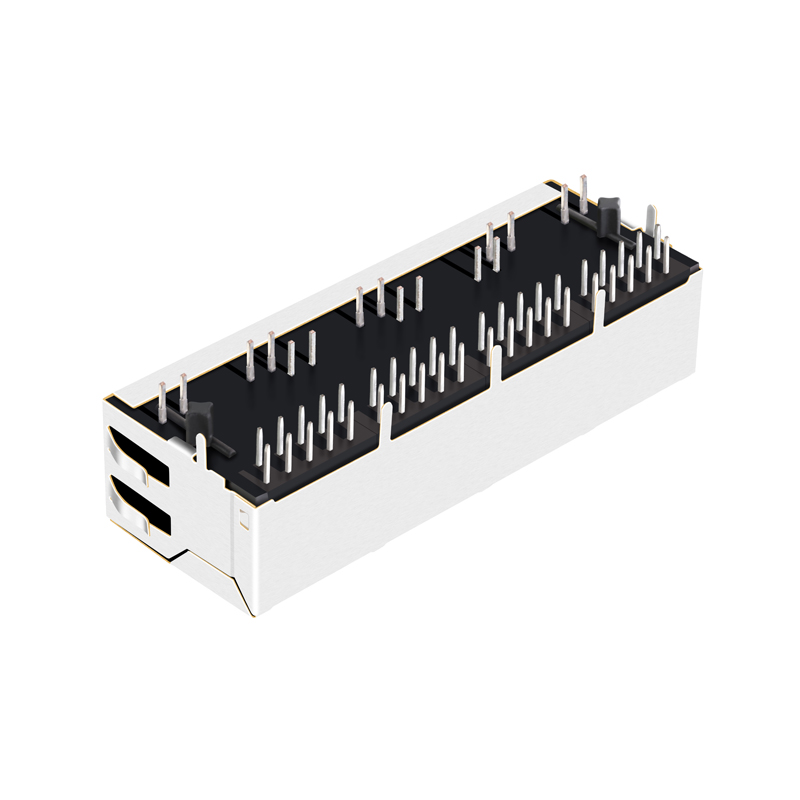

| Model Number | LPJG46801AENL |
| Part Status | Active |
| Connector Type | RJ45 |
| Applications | 10/100/1000 Base-T, AutoMDIX |
| Mounting Type | Through Hole |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Contact Finish Thickness | 6.00µin (0.152µm) |
| LED Color | Green - Yellow |
| Number of Cores per Jack | 8 |
| Shielding | Shielded, EMI Finger |
| Number of Ports | 1X4 Port |
| Features | Board Guide |
| Tab Direction | Down |
| Contact Finish | Gold |
| Configuration RX/TX | T,C |
| Turns Ratio RX/TX | 1CT:1CT |
| Operating Temperature | 0°C ~ 70°C |
Packaging Detail: 20 pcs in 1 tray, 20 tray in 1 carton (400pcs total).
Carton Dimensions: 37*30*30cm
Weight: 10 KGS per carton
Applications: Suitable for industrial temperatures from –40 °C up to +85 °C. Compatible with Industrial Ethernet systems like EtherCAT or Profinet. Compliant with most IC’s for Ethernet applications such as Microchip, Broadcom, Marvell. Ideal for Hubs, Routers, Switches, IP cameras, and IoT applications.
